8Sinn 8-RK C Overview
-
1Description
-
28Sinn Cage for RED KOMODO (Black)
-
38Sinn Top Plate for RED KOMODO (Black)
-
48Sinn Scorpio Top Handle
-
58Sinn ARRI Rosette 28mm Mount

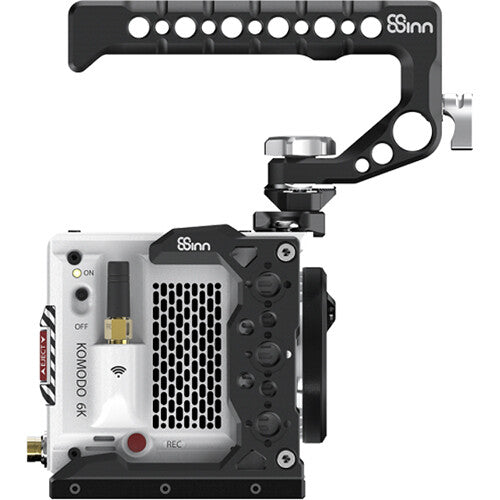

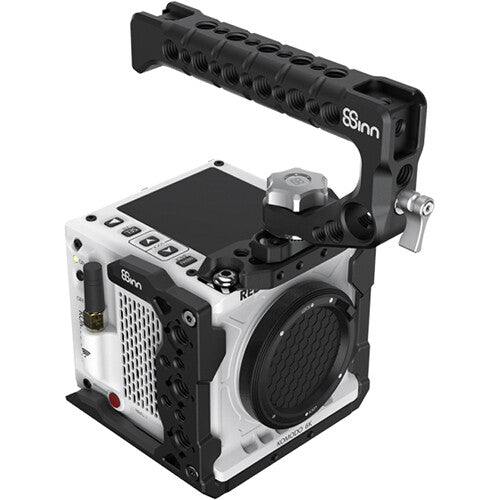

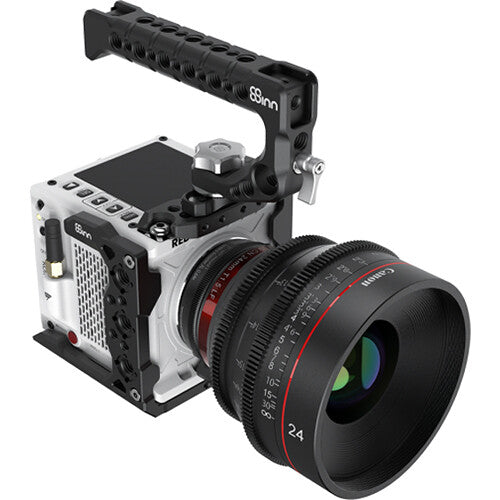

This RED KOMODO Cage Kit from 8Sinn pairs the dedicated KOMODO Cage with a removable Top Plate, a Scorpio Top Handle, and an ARRI-style rosette. Together, these components provide four-sided protection, a secure handle with 360° rotation, and multiple accessory mounting options for your RED DIGITAL CINEMA KOMODO camera.
8Sinn Cage for RED KOMODO (Black)
This Cage for RED KOMODO from 8Sinn features a black finish to the cage and offers both physical protection and a variety of accessory-mounting threads for your RED DIGITAL CINEMA KOMODO camera. This lightweight, three-piece cage maintains access to your camera's controls and ports and attaches to your camera at six points.
Accessory-mounting options include multiple 1/4"-20 and ARRI-style anti-twist 3/8"-16 threads plus two M4 threads on each side. The bottom of the RED KOMODO cage features cutouts for reducing the overall weight, plus both 3/8"-16 and 1/4"-20 tripod threads.
Compatibility
RED DIGITAL CINEMA KOMODO standard or white
8Sinn Top Plate for RED KOMODO (Black)
The aluminum Top Plate for RED KOMODO from 8Sinn attaches securely to your camera using the included screws. This black plate provides one ARRI-style anti-twist 3/8"-16 thread, multiple 1/4"-20 threads, and four M4 threads for mounting accessories.
Compatibility
RED DIGITAL CINEMA KOMODO camera
8Sinn Scorpio Top Handle
The Scorpio Top Handle from 8Sinn is made of CNC aluminum. The handle features 1/4"-20 and 3/8"-16 mounting holes, four cold shoes, and a 15mm rod mount.
8Sinn ARRI Rosette 28mm Mount
The 8Sinn ARRI Rosette 28mm Mount is a standard-size ARRI rosette mount with an M6 thread in the center for attaching compatible handgrips and other accessories. It can be secured to camera cages and other supports that have two 1/4"-20 mounting threads. It secures with two included 1/4"-20 screws, and it features wide 1/4"-20 pass-through slots so you can set the screws at the required spacing to match the accessory you're attaching to.
In the Box
- 8Sinn Cage for RED KOMODO (Black)
- 8Sinn Top Plate for RED KOMODO (Black)
- 2 x Mounting Screw
- Limited 1-Year Warranty
- 8Sinn Scorpio Top Handle
- 8Sinn ARRI Rosette 28mm Mount
- 2 x 1/4"-20 Mounting Screw
- Limited 1-Year Warranty
Table of Contents
- Description
- 8Sinn Cage for RED KOMODO (Black)
- 8Sinn Top Plate for RED KOMODO (Black)
- 8Sinn Scorpio Top Handle
- 8Sinn ARRI Rosette 28mm Mount
8Sinn Cage for RED KOMODO (Black) Specs
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Multiple x 1/4"-20 Thread, Multiple x Anti-Twist 3/8"-16 Thread, 2 x M4 Thread |
| Tripod Mounting |
1/4"-20 Thread, 3/8"-16 Thread |
| Shoe Mounting |
None |
| Rosettes |
None |
General
| Support Type |
Cage |
| Grip Type |
Grip Required (Not Included) |
| Camera Compatibility |
RED KOMODO |
| Construction |
Aluminum |
| Dimensions |
4.5 x 4 x 4" / 11.4 x 10.2 x 10.2 cm |
| Weight |
0.6 lb / 0.3 kg |
Packaging Info
| Package Weight |
0.82 lb |
| Box Dimensions (LxWxH) |
5.5 x 4.6 x 3.2" |
8Sinn Top Plate for RED KOMODO (Black) Specs
General
| Accessory Mount Threads |
1 x ARRI 3/8"-16 ARRI-Style Anti-Twist
4 x M4
8 x 1/4"-20 |
| Material of Construction |
Aluminum |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
0.105 lb |
| Box Dimensions (LxWxH) |
6.1 x 3.55 x 0.45" |
8Sinn Scorpio Top Handle Specs
Mounting
| Accessory Mounting |
Multiple x 1/4"-20 Thread
Multiple x 3/8"-16 Thread |
General
| Construction |
Aluminum |
| Dimensions |
5.7 x 2.8 x 1" / 14.5 x 7.1 x 2.5 cm |
| Weight |
7.7 oz / 218 g |
Packaging Info
| Package Weight |
0.8 lb |
| Box Dimensions (LxWxH) |
9.2 x 6 x 3.2" |
8Sinn ARRI Rosette 28mm Mount Specs
General
| Material of Construction |
Aluminum |
| Center Thread |
M6 |
| Rosette Diameter |
28 mm Standard |
| Dimensions |
1.7 x 0.3 x 1.1" / 44 x 8 x 28 mm |
| Weight |
0.67 oz / 19 g |
Packaging Info
| Package Weight |
0.01 lb |
| Box Dimensions (LxWxH) |
4.1 x 1.4 x 0.9" |
