8Sinn 8-CR5C C+8-THP Overview
-
1Description
-
28Sinn Full Camera Cage for Canon EOS R5 C
-
38Sinn Top Handle Pro
-
48Sinn Safety NATO Rail (2.4")

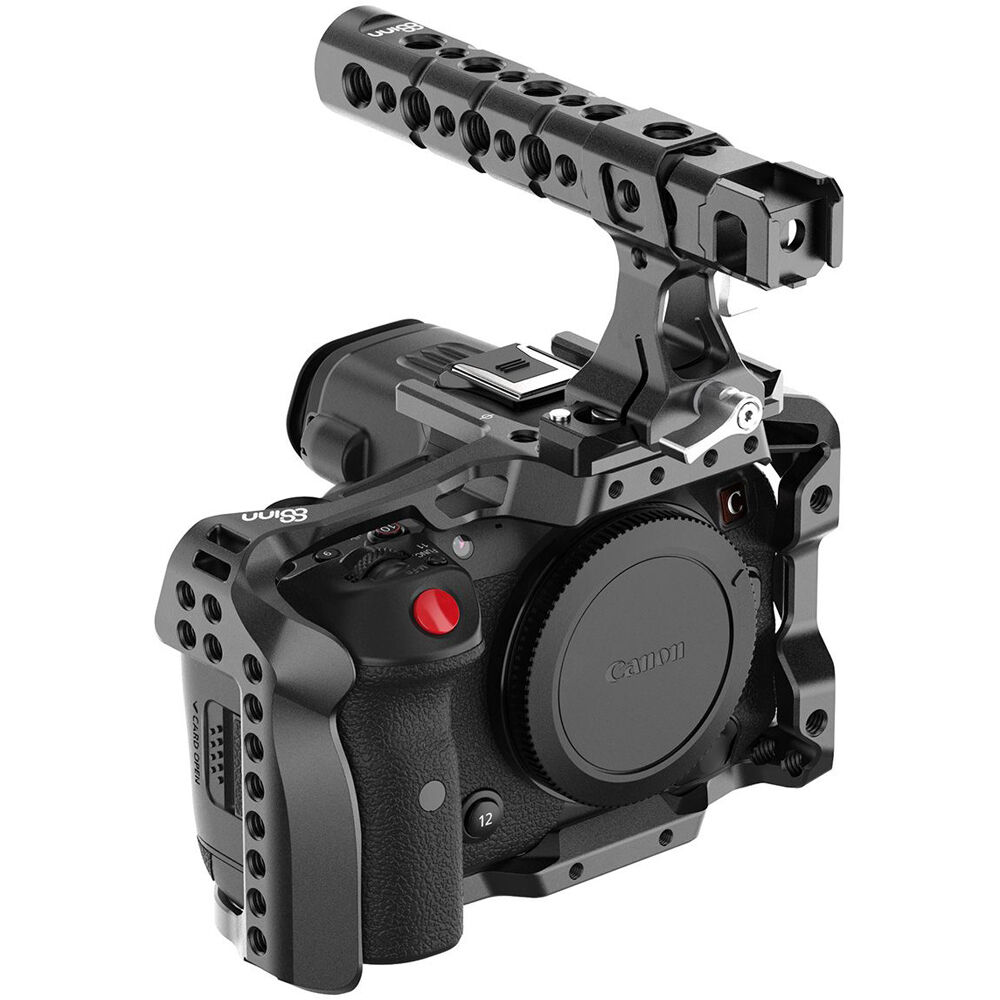

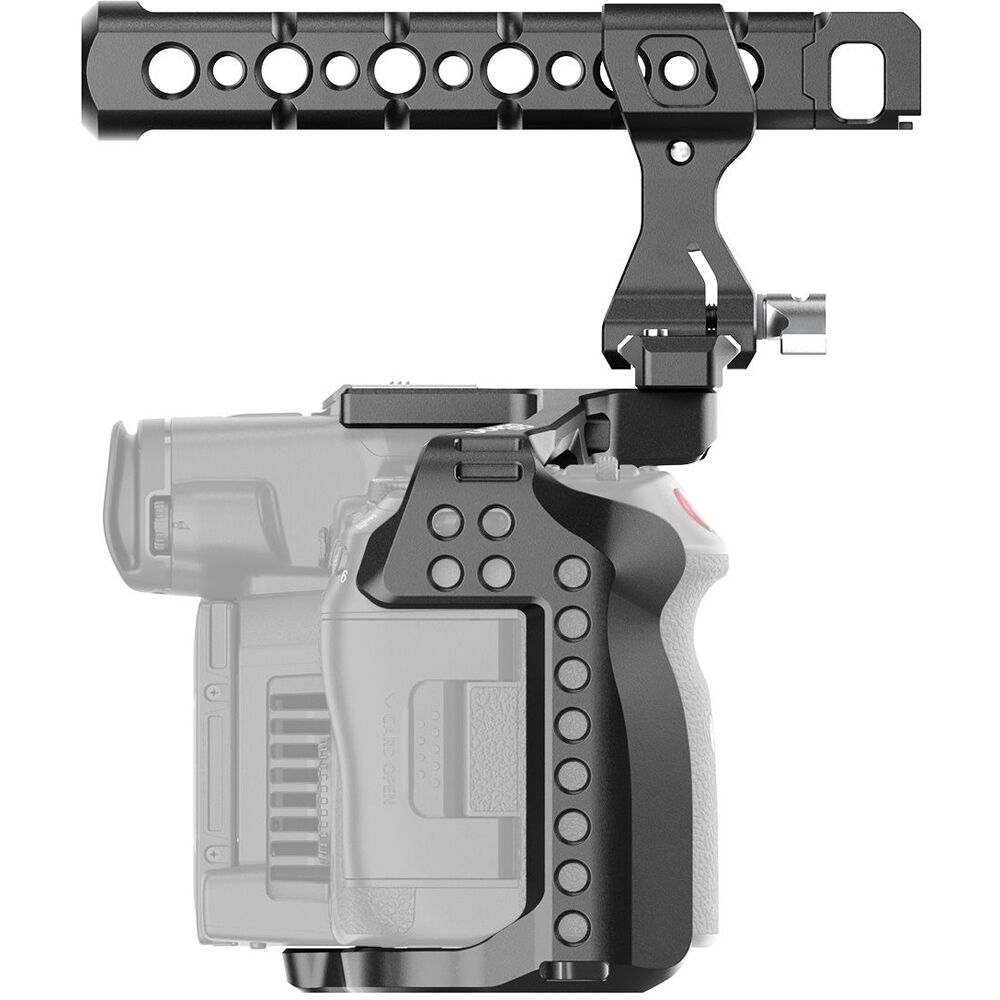

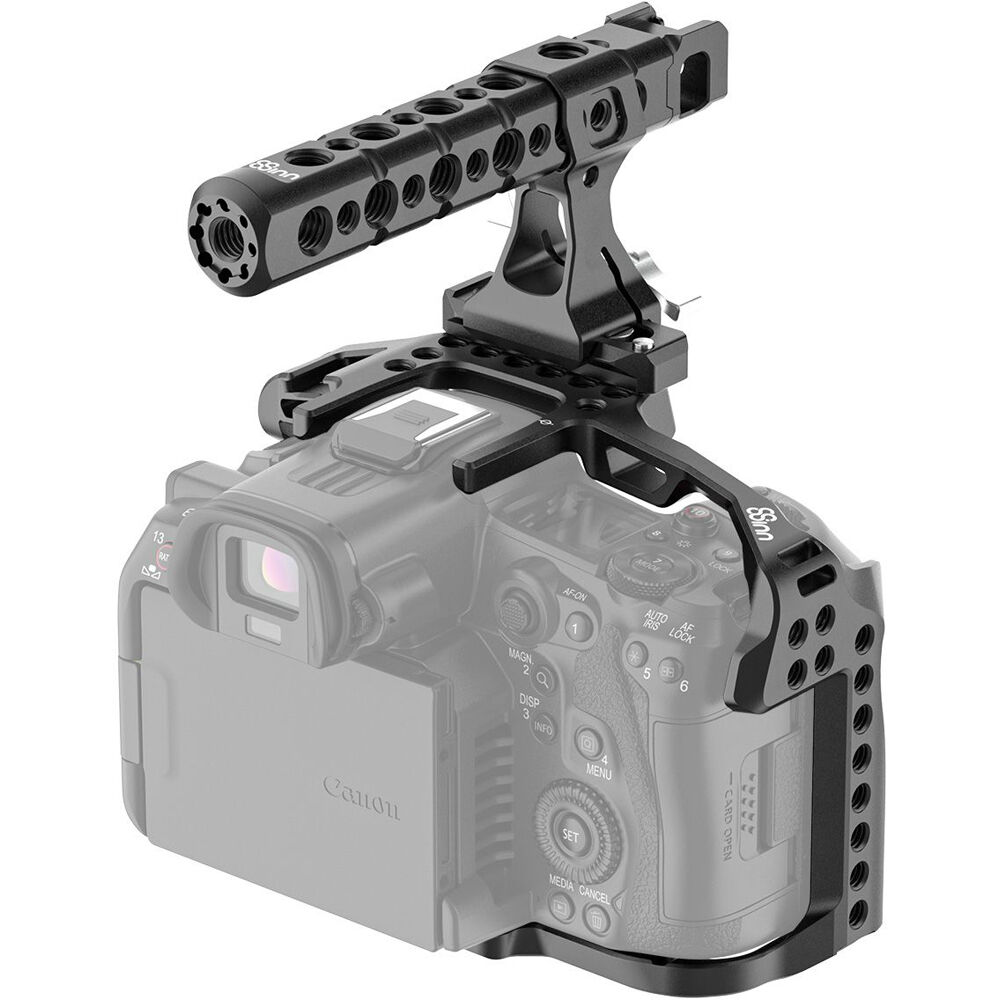

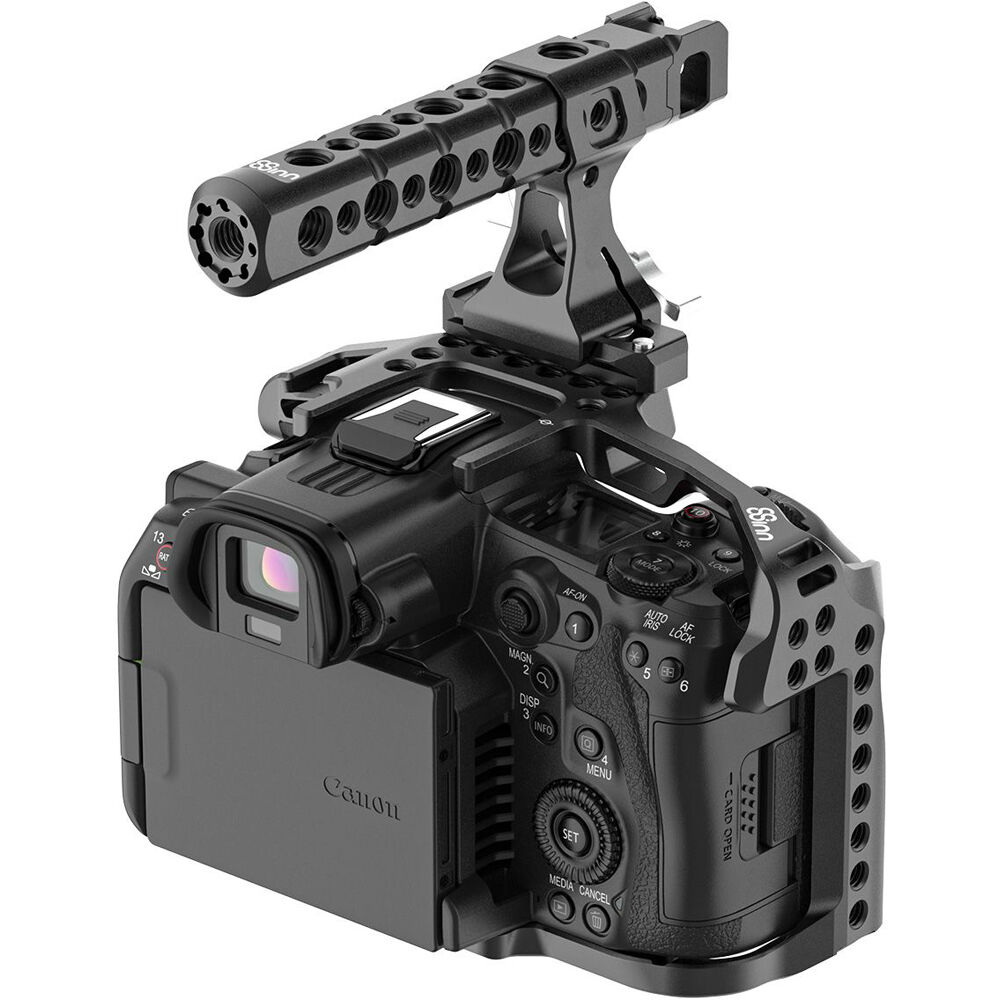

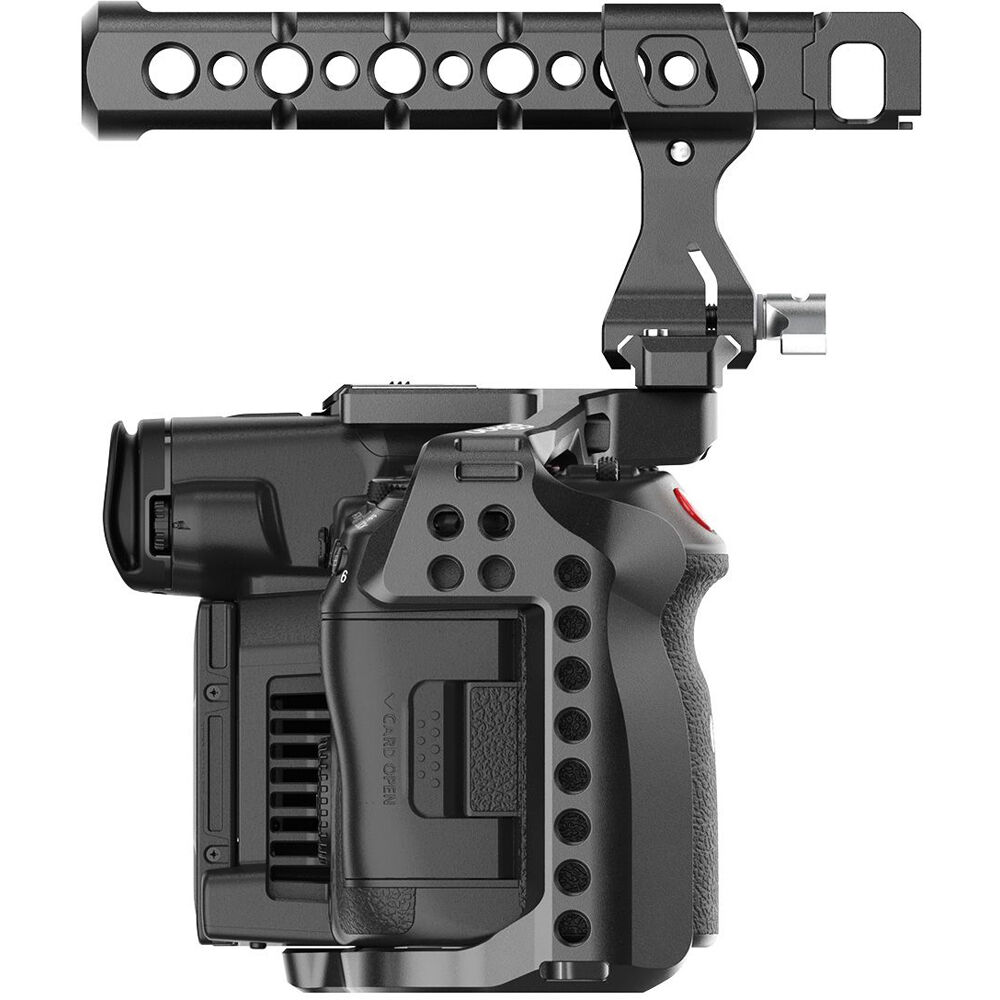

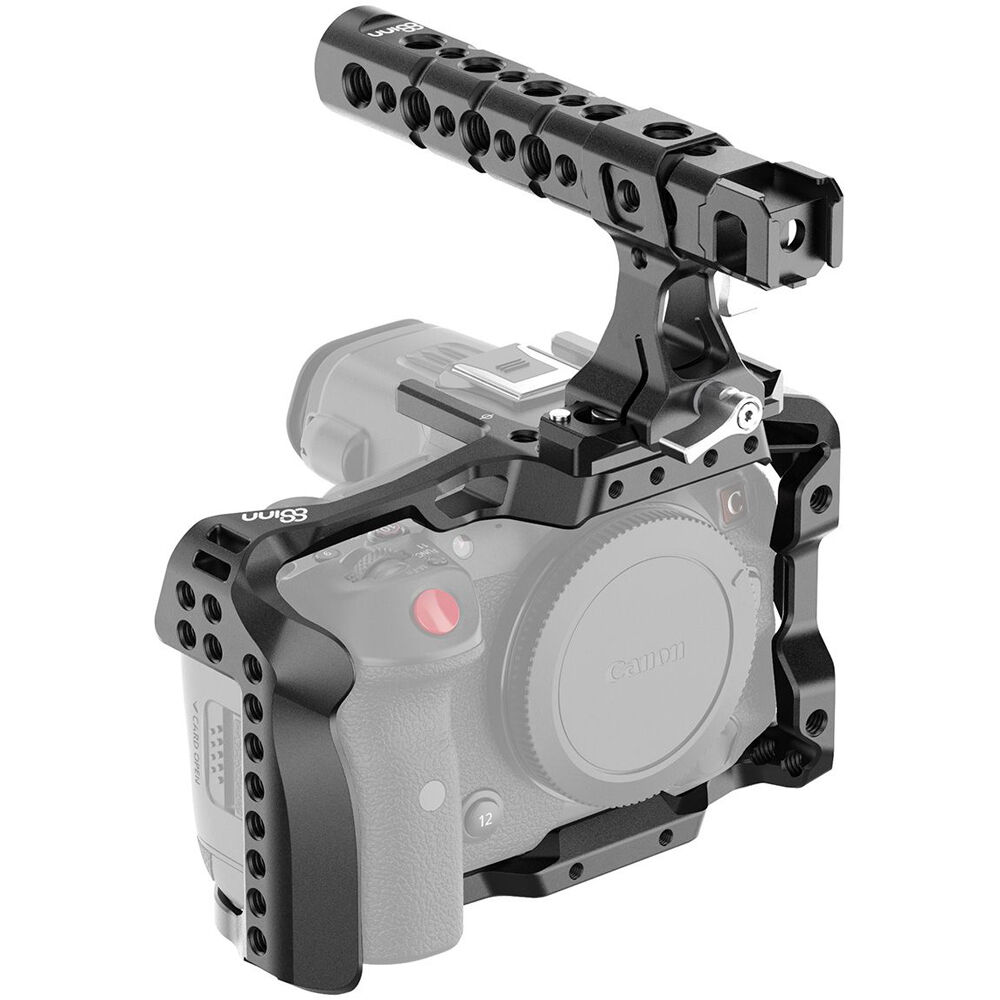

Protect your camera and carry it with ease while improving its low-angle and mounting capabilities with the 8Sinn Cage for Canon EOS R5 C with Top Handle Pro, which combines a formfitting protective cage with an adjustable top handle that offers side-to-side and front-to-back balance adjustments. The Top Handle Pro mounts on top of the cage via an included NATO rail. This provides a solid connection between the handle and cage, allowing you to adjust the balance side to side and slide the handle off when not using it.
8Sinn Full Camera Cage for Canon EOS R5 C
Custom-fit for the Canon EOS R5 C, this Full Camera Cage from 8Sinn protects your camera while offering expanded mounting options. Multiple 1/4"-20 and M4 threads throughout the cage allow you to integrate articulating arms, handles, or cable clamps while maintaining access to the camera's ports and buttons. A cold shoe mount at the top of the cage can accommodate a wireless transmitter or microphone. Two strap holders allow you to thread a camera strap through either side for additional security. The cage's aluminum construction ensures it remains durable while being lightweight.
The 8Sinn Top Handle Pro includes just the top handle itself and mounts easily on your camera cage using the integrated NATO rail clamp. It features a single 15mm rod bracket, two cold shoe mounts, and multiple 1/4"-20 and 3/8"-16 threads for the attachment of additional accessories like articulating arms, external monitors, and shotgun microphones. Separately available NATO rails can be purchased for installation on cages with 1/4"-20 threads.
8Sinn Safety NATO Rail (2.4")
The 8Sinn 2.4" Safety NATO Rail is a short-length NATO-standard rail that can be attached to camera cages and other camera supports. It attaches using two included 1/4"-20 screws, and it features a slotted design so that you can space out the screws as needed to match the spacing on your cage or other support. The NATO rail provides a quick release mounting solution with a safety pin for NATO-compatible top handles, monitor mounts, and other gear.
In the Box
- 8Sinn Full Camera Cage for Canon EOS R5 C
- Limited 1-Year Manufacturer Warranty
- 8Sinn Top Handle Pro
- Limited 1-Year Manufacturer Warranty
- 8Sinn Safety NATO Rail (2.4")
- 2 x 1/4"-20 Screw
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- 8Sinn Full Camera Cage for Canon EOS R5 C
- 8Sinn Top Handle Pro
- 8Sinn Safety NATO Rail (2.4")
8Sinn Full Camera Cage for Canon EOS R5 C Specs
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Canon EOS R5 C |
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Multiple x 1/4"-20 Female Thread, Multiple x M4 Female Thread |
| Tripod Mounting |
None |
| Shoe Mounting |
1 x Cold Shoe |
| Rosettes |
None |
General
| Materials |
Aluminum |
| Dimensions |
6.1 x 4.2 x 3.1" / 155.4 x 107.3 x 77.5 mm |
| Weight |
7.9 oz / 224.5 g |
Packaging Info
| Package Weight |
0.84 lb |
| Box Dimensions (LxWxH) |
9 x 5.6 x 3.1" |
8Sinn Top Handle Pro Specs
| Item Type |
Topside Handle |
| Rotation |
No |
| Built-In Controls |
None |
Mounting
| Attachment Method |
Attaches via Rail |
| Rod Ports |
1 x 15 mm Rod Port |
| Accessory Mounting |
Multiple x 1/4"-20 Thread
Multiple x 3/8"-16 Thread |
| Shoe Mounting |
2 x Built-In Cold Shoe Slot |
| Rosettes |
None |
| Rail Mounting |
1 x NATO Rail Clamp |
General
| Materials |
Aluminum |
| Dimensions |
6.2 x 2.7 x 2.3" / 158 x 69 x 59 mm |
| Weight |
5.3 oz / 149 g |
Packaging Info
| Package Weight |
0.435 lb |
| Box Dimensions (LxWxH) |
8 x 5.5 x 1.8" |
8Sinn Safety NATO Rail (2.4") Specs
| Material |
Aluminum |
| Dimensions |
2.4 x 0.35 x 0.8" / 60 x 9 x 20 mm |
| Weight |
0.8 oz / 23 g |
Packaging Info
| Package Weight |
0.075 lb |
| Box Dimensions (LxWxH) |
3.8 x 2.65 x 0.65" |
