8Sinn 8-C70 C+8-THSV2+8-AR28MMM Overview

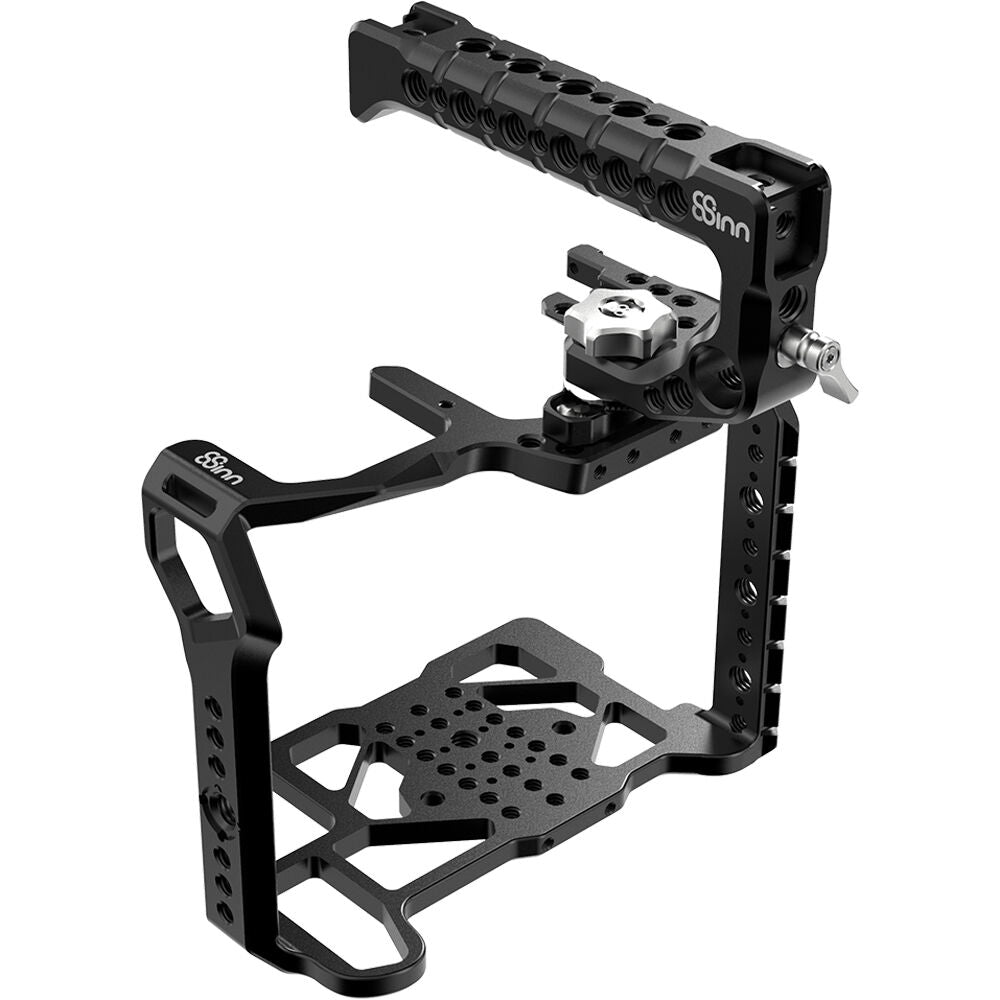

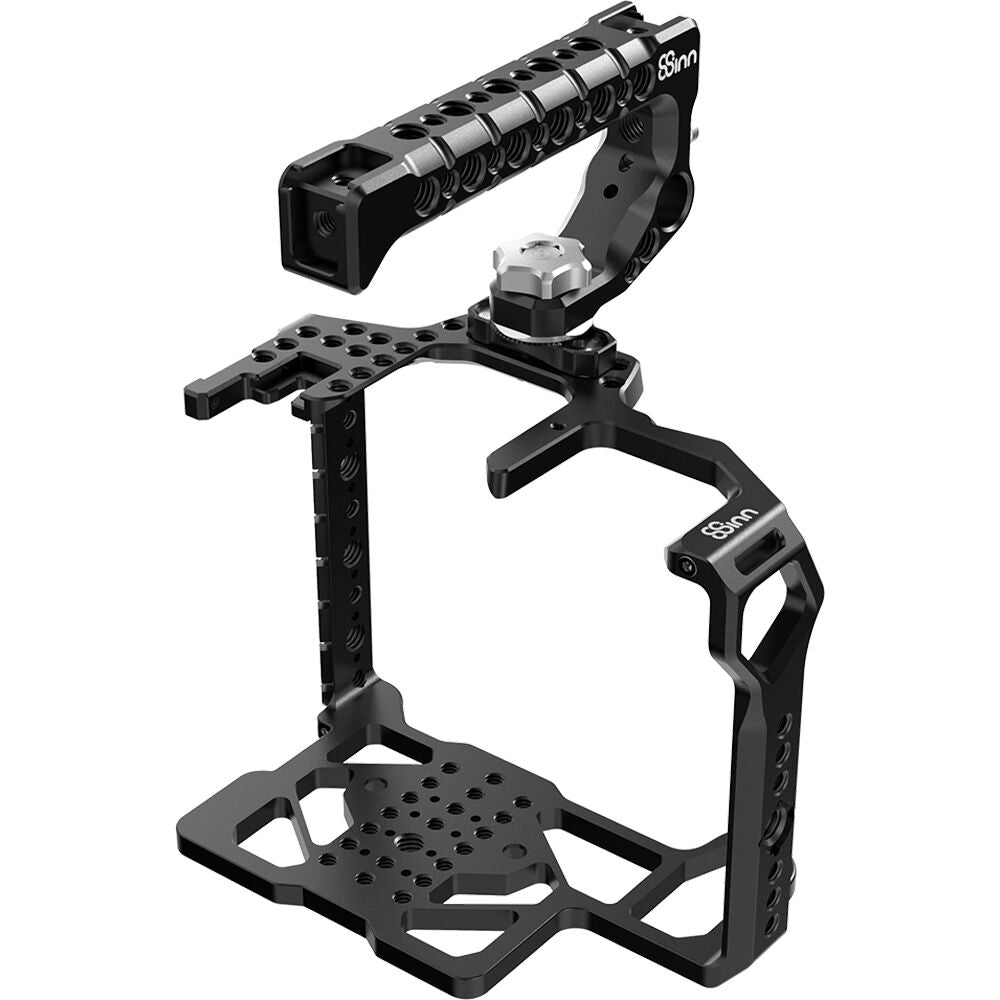

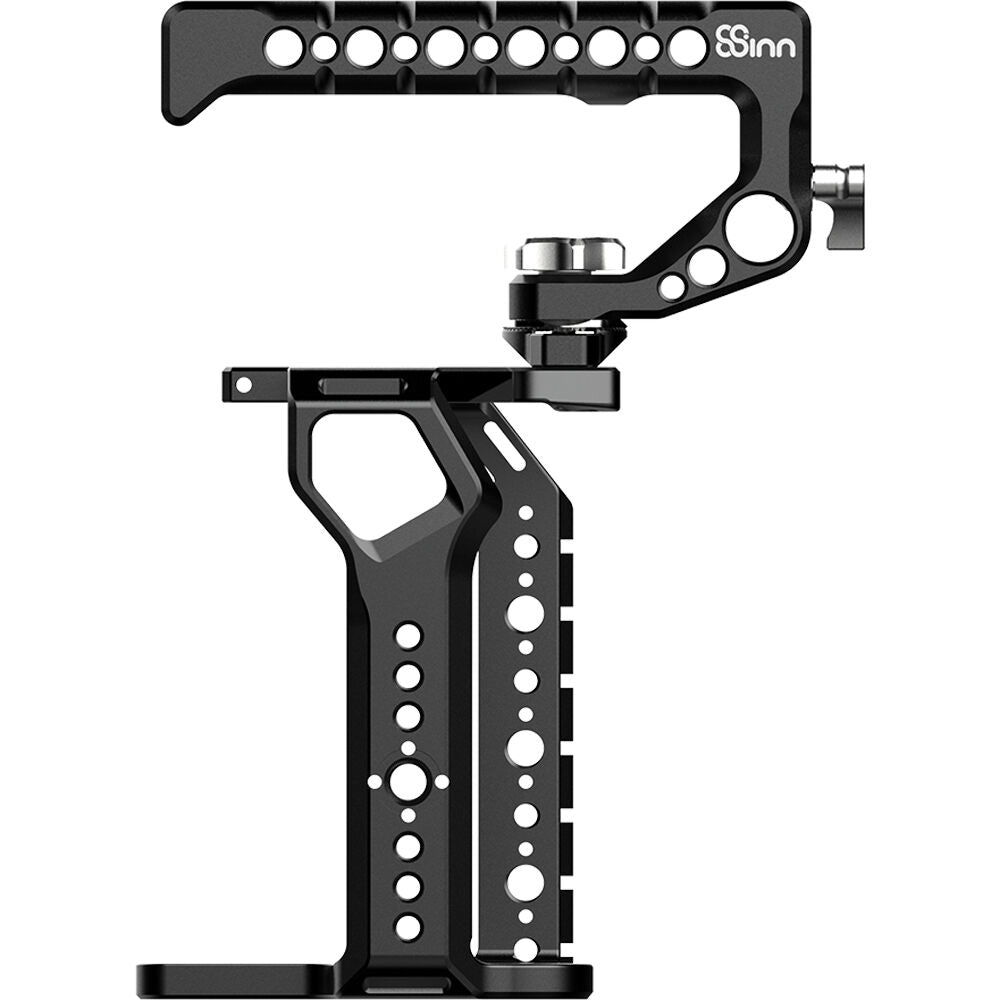

Protect your camera and carry it with ease while improving its low-angle and mounting capabilities with the 8Sinn Cage for Canon C70 with Top Handle Scorpio & Removable ARRI Rosette, which combines a formfitting protective cage with an aluminum top handle and a removable ARRI rosette that allows you to orient the top handle through 360° forward and back. The cage features numerous 1/4"-20 threaded holes, 3/8"-16 holes with anti-twist divots compatible with ARRI accessory mounting holes, and M4 threaded accessory mounting holes, and the cage protects your camera from the stress of attaching accessories.
The removable rosette mounts on the top of your cage, the Scorpio's M6 mounting screw threads into the rosette's M6 threaded mounting hole, and the interlocking ridges provide a twist-free lock. The Scorpio's knuckle can be loosened slightly, allowing you to orient the top handle as needed and then quickly locking it back into place. The top handle features multiple 1/4"-20 and 3/8"-16 threaded mounting holes, four cold shoes (two in front and two in the rear), and a 15mm rod clamp well suited for attaching an optional 15mm rod and EVF or another accessory.
In the Box
- 8Sinn Cage for Canon C70
- 8Sinn Scorpio Top Handle v2 Kit with ARRI Rosette Mount
- 8Sinn Scorpio Top Handle
- 8Sinn ARRI Rosette 28mm Mount
8Sinn 8-C70 C+8-THSV2+8-AR28MMM Specs
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Canon EOS C70 |
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Cage: Multiple x 1/4"-20 Thread, Multiple x ARRI Anti-Twist 3/8"-16 Thread, Multiple x M4 Thread |
| Camera Mounting |
1/4"-20 Screw |
| Tripod Mounting |
Quick Release Plate: 1/4"-20 Thread |
| Shoe Mounting |
Cage: 1 x Cold Shoe |
| Rosettes |
None |
| Rail Mounting |
1 x NATO Rail |
General
| Materials |
Aluminum |
| Dimensions |
5.6 x 3.7 x 2.3" / 141 x 94 x 59 mm |
| Weight |
6.2 oz / 175 g |
Packaging Info
| Package Weight |
1.085 lb |
| Box Dimensions (LxWxH) |
9 x 6.5 x 6.2" |
