8Sinn 8-C70 C+8-THP Overview

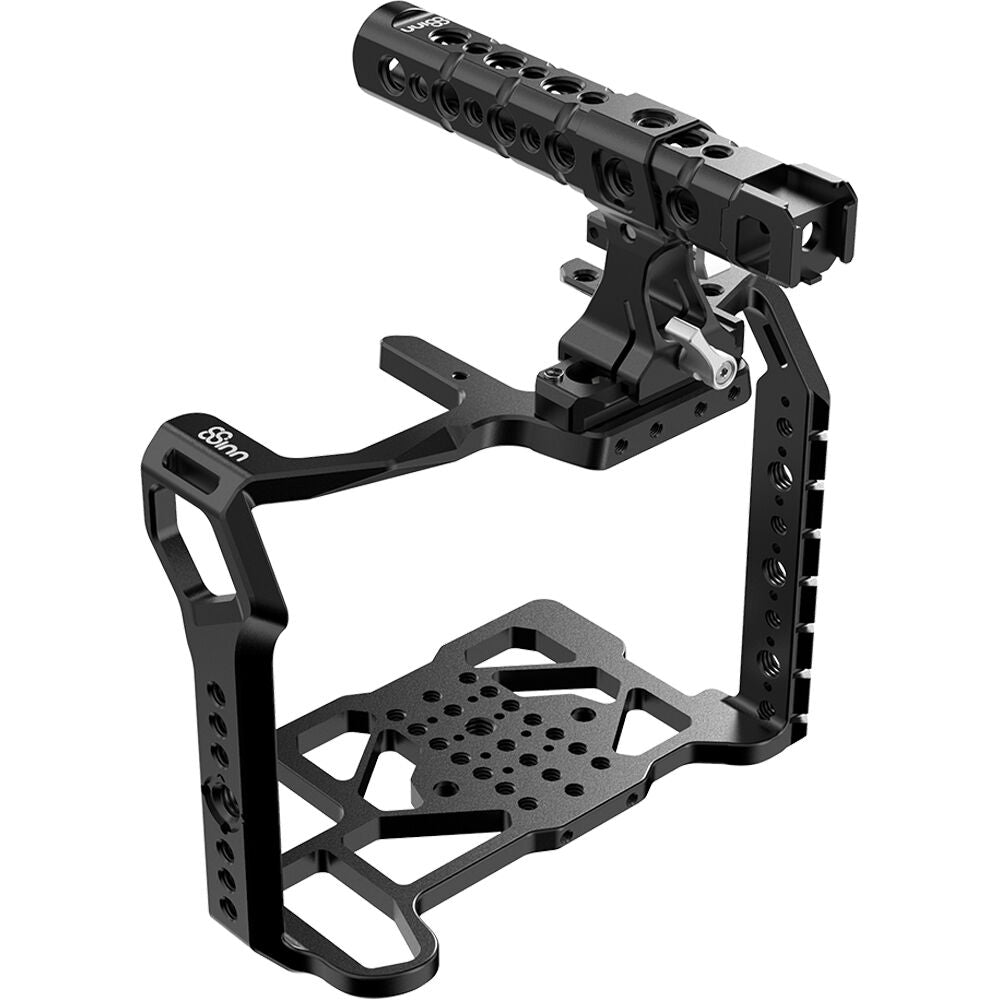

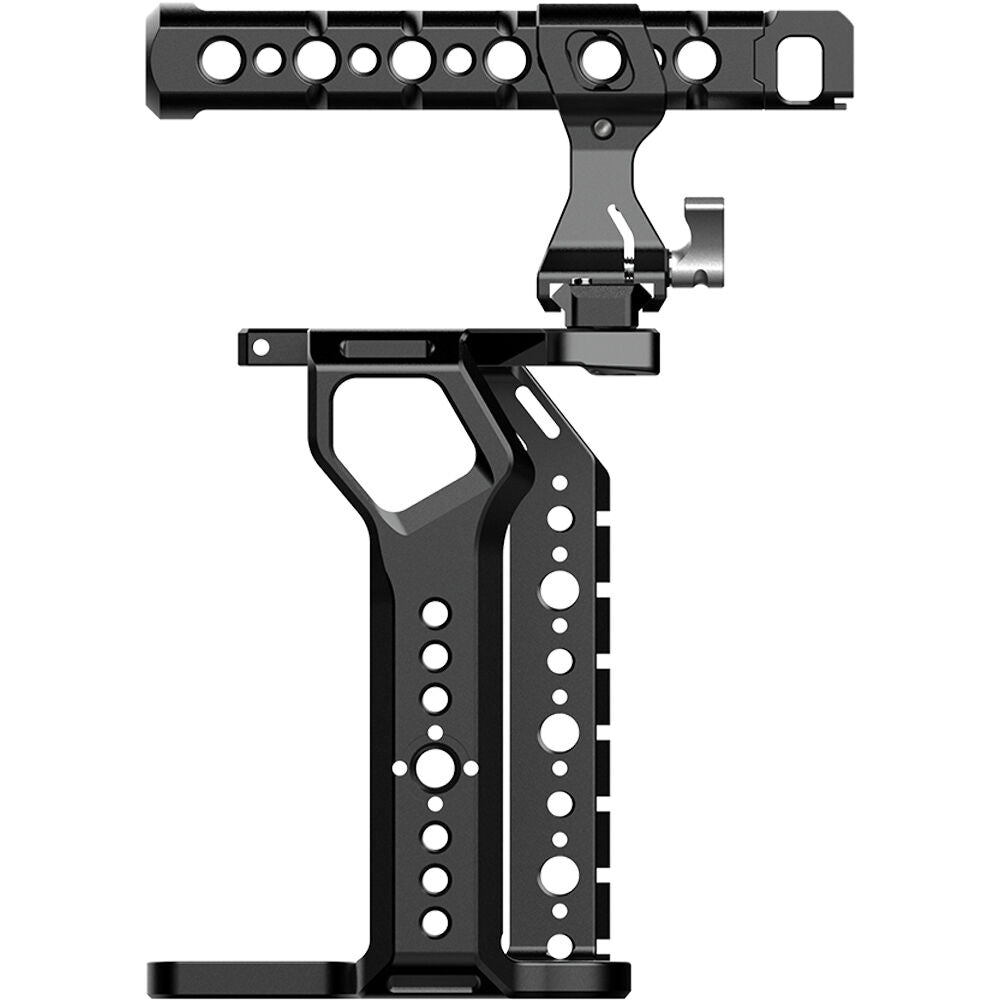

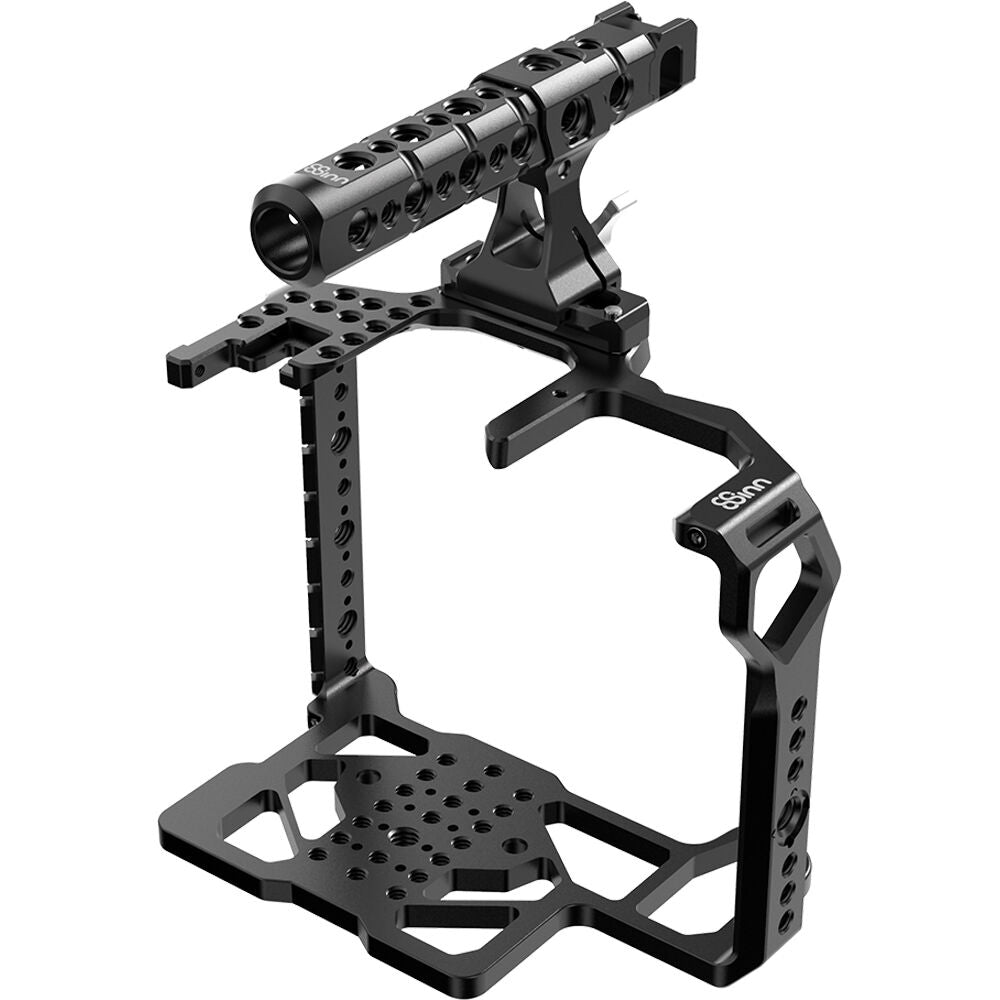

Protect your camera and carry it with ease while improving its low-angle and mounting capabilities with the 8Sinn Cage for Canon C70 with Top Handle Pro, which combines a formfitting protective cage with an adjustable top handle that offers side-to-side and front-to-back balance adjustments. The Top Handle Pro mounts on top of the cage via an included NATO rail. This provides a solid connection between handle and cage, allowing you to adjust the balance side to side and slide the handle off when not using it.
The cage features numerous 1/4"-20 threaded holes, 3/8"-16 holes with anti-twist divots compatible with ARRI accessory mounting holes, and M4 threaded accessory mounting holes, and the cage protects your camera from the stress of attaching accessories. The top handle grip is a shaft you can easily slide forward and back as well as remove and reverse from the NATO rail mount. This allows you to adjust the balance of your camera front and back when carrying by the top handle. The top handle grip has cold shoes on top as well as the front, and the back of the grip has an opening for a 15mm rod. The top handle grip has numerous 1/4"-20 and 3/8"-16 threaded mounting holes.
8Sinn Cage for Canon C70
Lightweight, sturdy, and with plenty of accessory mounting points, the 8Sinn Cage for Canon C70 is designed to fit the Canon C70, and the camera mounts onto the cage using two 1/4"-20 screws to help prevent twist in the cage. This cage features multiple 1/4"-20 and ARRI-style 3/8"-16 mounting threads with anti-twist divots, one shoe mount, and a NATO rail for mounting accessories such as a light, monitor, side handle, top handle, or rod support.
The cage permits full access to the camera's functions, it has M4 threaded holes along the top front for additional accessory mounting, and it is compatible with the Canon MIC mount.
8Sinn Top Handle Pro with NATO Rail (2.4")
The 8Sinn Pro Top Handle mounts easily on your camera cage using the included 2.4" NATO rail. The NATO rail mount makes it easy to attach and remove the handle and slides to help balance your camera. It features a single 15mm rod bracket, two cold shoe mounts, and multiple 1/4"-20 and 3/8"-16 accessory threads.
In the Box
- 8Sinn Cage for Canon C70
- 8Sinn Top Handle Pro with NATO Rail (2.4")
- NATO Rail (2.4")
- 2 x 1/4"-20 Screw
- Limited 1-Year Warranty
8Sinn Cage for Canon C70 Specs
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Canon EOS C70 |
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Cage: Multiple x 1/4"-20 Thread, Multiple x ARRI Anti-Twist 3/8"-16 Thread, Multiple x M4 Thread |
| Camera Mounting |
1/4"-20 Screw |
| Tripod Mounting |
Quick Release Plate: 1/4"-20 Thread |
| Shoe Mounting |
Cage: 1 x Cold Shoe |
| Rosettes |
None |
| Rail Mounting |
1 x NATO Rail |
General
| Materials |
Aluminum |
| Dimensions |
5.6 x 3.7 x 2.3" / 141 x 94 x 59 mm |
| Weight |
6.2 oz / 175 g |
Packaging Info
| Package Weight |
1.085 lb |
| Box Dimensions (LxWxH) |
9 x 6.5 x 6.2" |
8Sinn Top Handle Pro with NATO Rail (2.4") Specs
| Grip Type |
Topside Handle with Cheeseplate-Style Handle |
| Rotation |
No |
| Built-In Controls |
None |
Mounting
| Attachment Method |
Attaches via Rail |
| Rod Standard |
15 mm Single Rod |
| Rod Ports |
1 x 15 mm Rod Port |
| Accessory Mounting |
Multiple x 1/4"-20 Thread
Multiple x 3/8"-16 Thread |
| Shoe Mounting |
2 x Built-In Cold Shoe Slot |
| Rosettes |
None |
| Rail Mounting |
1 x NATO Rail Clamp
1 x NATO Rail That Attaches via 2 x Included 1/4"-20 Screw |
General
| Materials |
Aluminum |
| Dimensions |
6.2 x 2.7 x 2.3" / 158 x 69 x 59 mm |
| Weight |
5.1 oz / 145 g |
Packaging Info
| Package Weight |
0.7 lb |
| Box Dimensions (LxWxH) |
9.2 x 5.7 x 3.1" |
