8Sinn 8-C70 C+8-THBRAVEN Overview

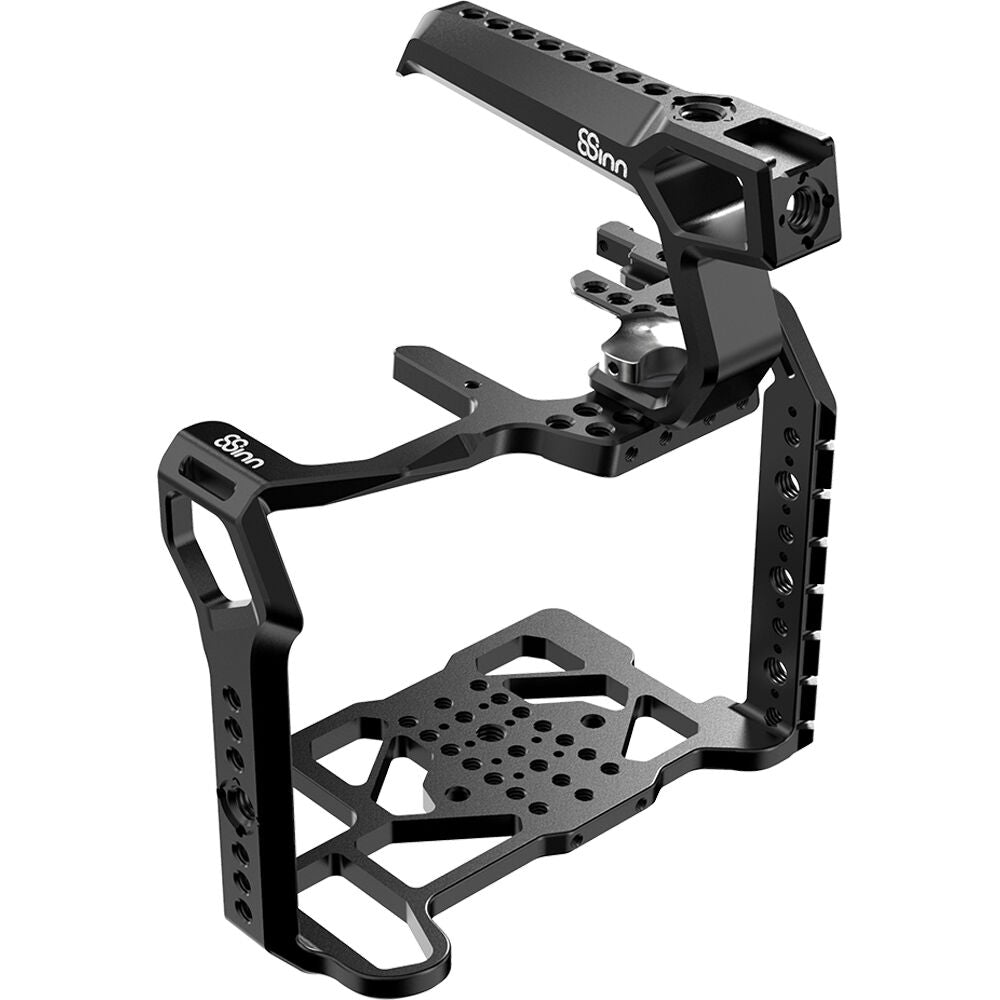

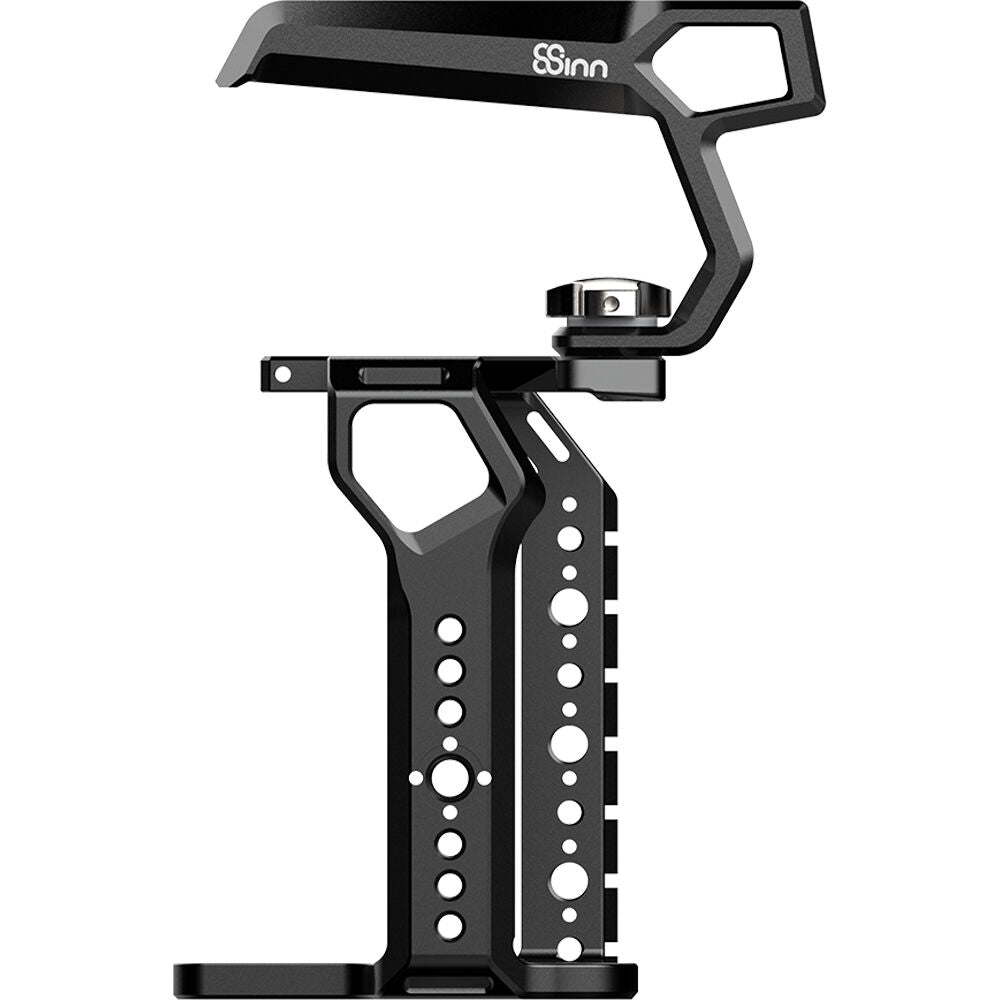

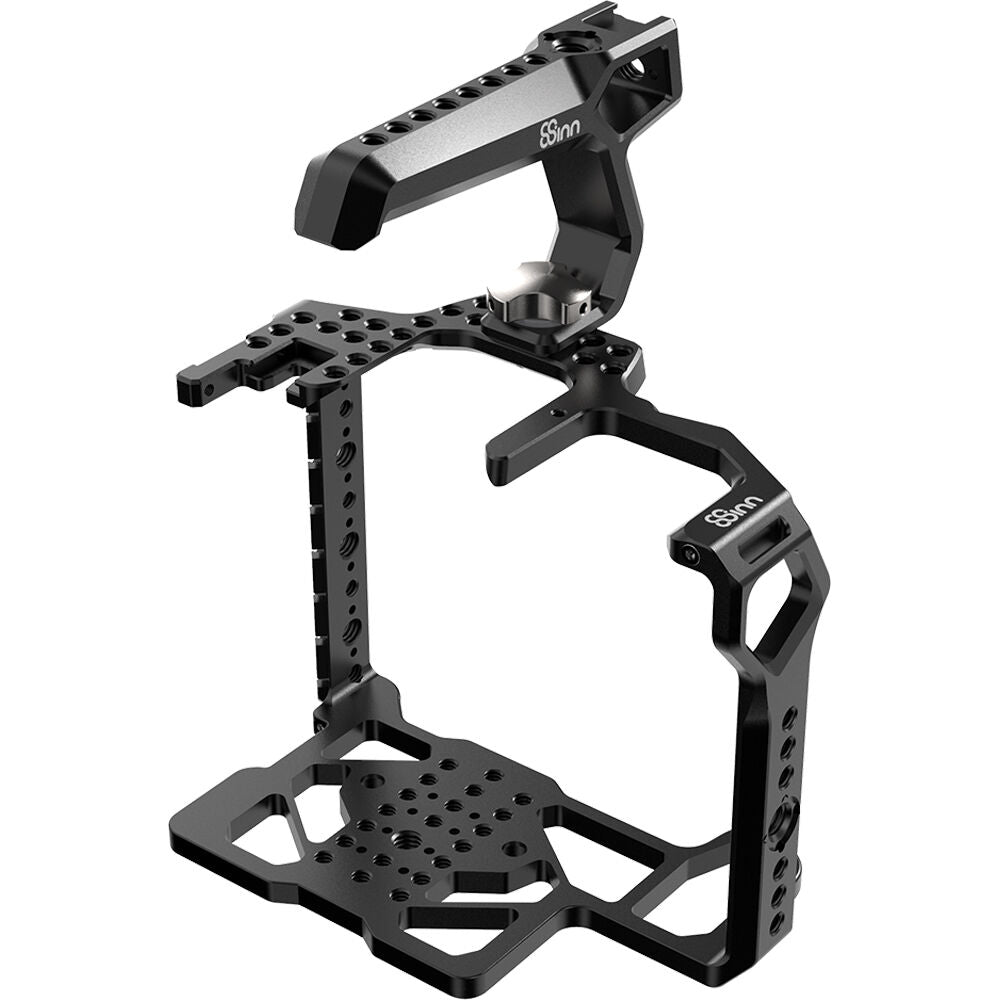

Protect your camera and carry it with ease while improving its low-angle and mounting capabilities with the 8Sinn Cage for Canon C70 with Black Raven Top Handle, which combines a formfitting protective cage with a matching top handle you can position in one of four directions. The Black Raven top handle mounts on top of the cage via the 3/8"-16 threaded mounting hole, and it has integrated pins that mate with the anti-twist divots around the 3/8"-16 mounting hole. This provides a solid connection between handle and cage, preventing twisting when assembled. The pins and divots allow you to position the handle, so it extends either behind the cage, in front of it, or to either side.
The cage features numerous 1/4"-20 threaded holes, 3/8"-16 holes with anti-twist divots compatible with ARRI accessory mounting holes, and M4 threaded accessory mounting holes, and the cage protects your camera from the stress of attaching accessories. Along the top of the handle run eight 1/4"-20 threaded mounting holes, as well as a 3/8"-16 threaded mounting hole with ARRI-style anti-twist divots and a cold shoe. The front of the handle incorporates an additional 3/8"-16 threaded accessory mounting hole with ARRI-style anti-twist divots.
8Sinn Cage for Canon C70
Lightweight, sturdy, and with plenty of accessory mounting points, the 8Sinn Cage for Canon C70 is designed to fit the Canon C70, and the camera mounts onto the cage using two 1/4"-20 screws to help prevent twist in the cage. This cage features multiple 1/4"-20 and ARRI-style 3/8"-16 mounting threads with anti-twist divots, one shoe mount, and a NATO rail for mounting accessories such as a light, monitor, side handle, top handle, or rod support.
The cage permits full access to the camera's functions, it has M4 threaded holes along the top front for additional accessory mounting, and it is compatible with the Canon MIC mount.
8Sinn Black Raven Top Handle
The Black Raven Top Handle from 8Sinn mounts on your 8Sinn or other-brand cage using a secure ARRI-style anti-twist mount. Handle features include tool-free adjustments, a modern design, and a lightweight yet durable aluminum build.
Multiple accessory mounting options include one cold shoe mount, two ARRI-style anti-twist 3/8"-16 threads, and multiple 1/4"-20 threads.
Compatibility
8Sinn cages with an ARRI-style anti-twist top thread
Other cages with an ARRI-style anti-twist top thread
In the Box
- 8Sinn Cage for Canon C70
- 8Sinn Black Raven Top Handle
8Sinn Cage for Canon C70 Specs
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Canon EOS C70 |
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Cage: Multiple x 1/4"-20 Thread, Multiple x ARRI Anti-Twist 3/8"-16 Thread, Multiple x M4 Thread |
| Camera Mounting |
1/4"-20 Screw |
| Tripod Mounting |
Quick Release Plate: 1/4"-20 Thread |
| Shoe Mounting |
Cage: 1 x Cold Shoe |
| Rosettes |
None |
| Rail Mounting |
1 x NATO Rail |
General
| Materials |
Aluminum |
| Dimensions |
5.6 x 3.7 x 2.3" / 141 x 94 x 59 mm |
| Weight |
6.2 oz / 175 g |
Packaging Info
| Package Weight |
1.085 lb |
| Box Dimensions (LxWxH) |
9 x 6.5 x 6.2" |
8Sinn Black Raven Top Handle Specs
| Grip Type |
Topside Handle with Cheeseplate-Style Handle |
| Rotation |
Yes, 360° |
| Built-In Controls |
None |
Mounting
| Attachment Method |
Attaches via 1 x Built-In ARRI Anti-Twist 3/8"-16 Screw |
| Accessory Mounting |
2 x ARRI Anti-Twist 3/8"-16 Thread
8 x 1/4"-20 Thread |
| Shoe Mounting |
1 x Built-In Cold Shoe Slot |
| Rosettes |
None |
| Rail Mounting |
None |
Packaging Info
| Package Weight |
0.53 lb |
| Box Dimensions (LxWxH) |
7.8 x 4.9 x 1.7" |
