Description

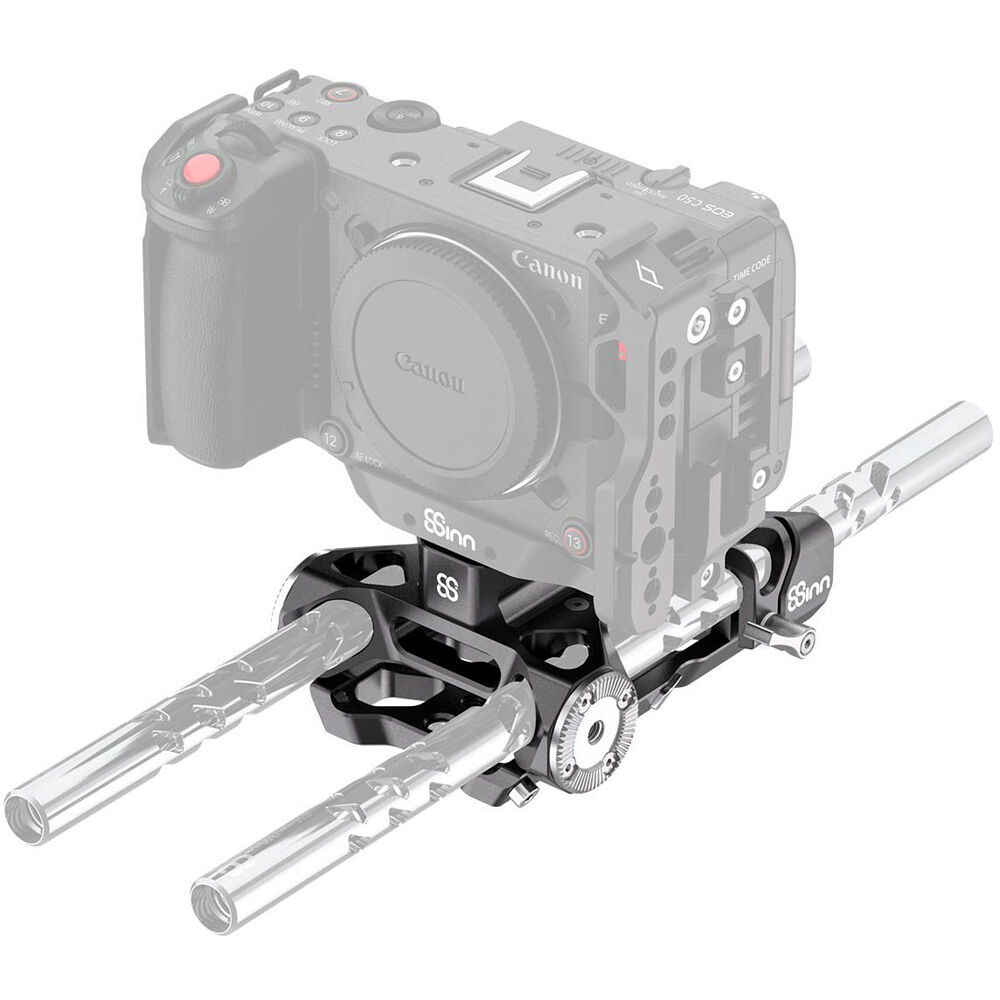

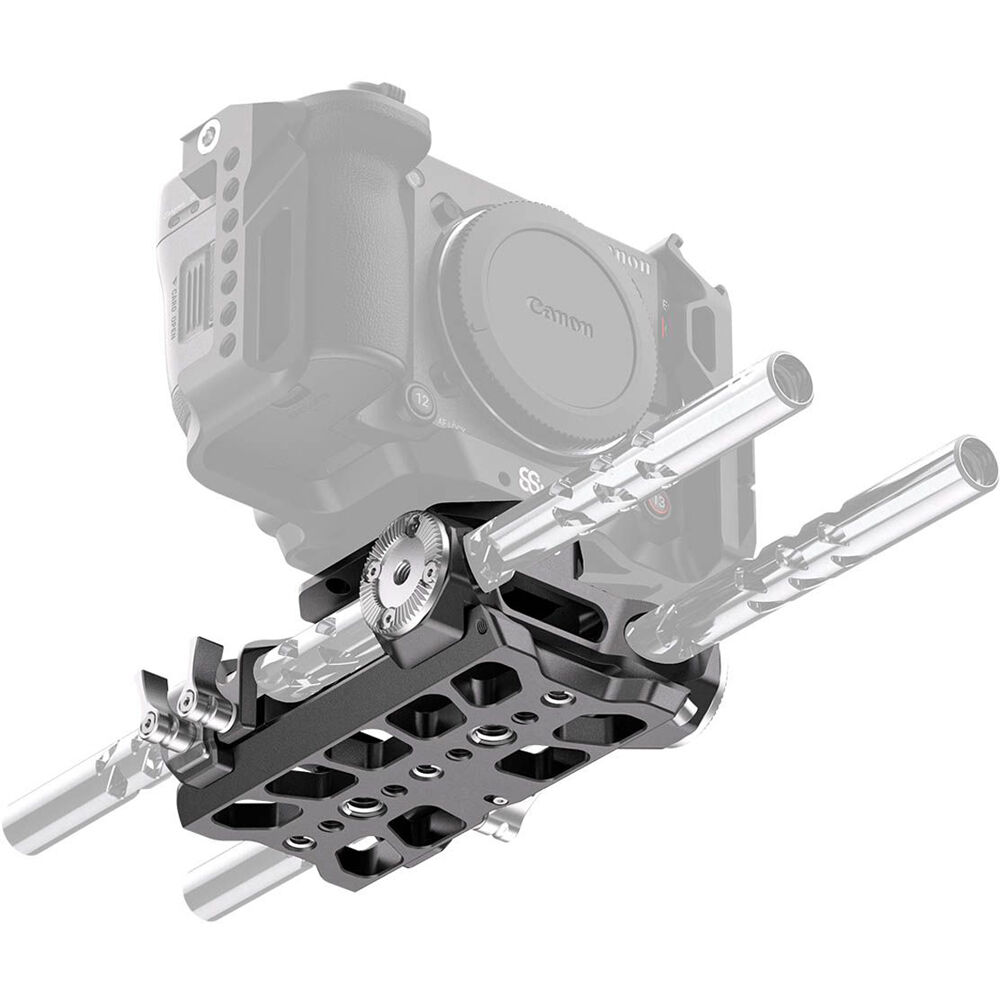

The 15mm Baseplate V2 + Riser Plate I + 5" ARRI Dovetail Plate Bundle from 8Sinn includes the 15mm Baseplate V2, Riser Plate I, and the 5" ARRI Dovetail Plate. The bundle supports select 8Sinn, Z CAM, Sony a7/a7R, and Blackmagic Pocket 4K/6K cages via the Riser Plate I.
The 15mm Baseplate V2 from 8Sinn is ARRI dovetail compatible and supports optional camera-specific riser plates from 8Sinn. Available plates include the Riser Plate Basic, which supports the URSA Mini, C100, and Sony FX-9 cameras, and the Riser Plate I, which is for select 8Sinn Z CAM, a7/a7R, and Blackmagic Pocket 4K/6K cages, and the Riser Plate II, which is compatible with an Arca-type plate and the DJI R quick release upper plate. These optional plates set the supported cameras at the appropriate optical center on the 15mm Baseplate.

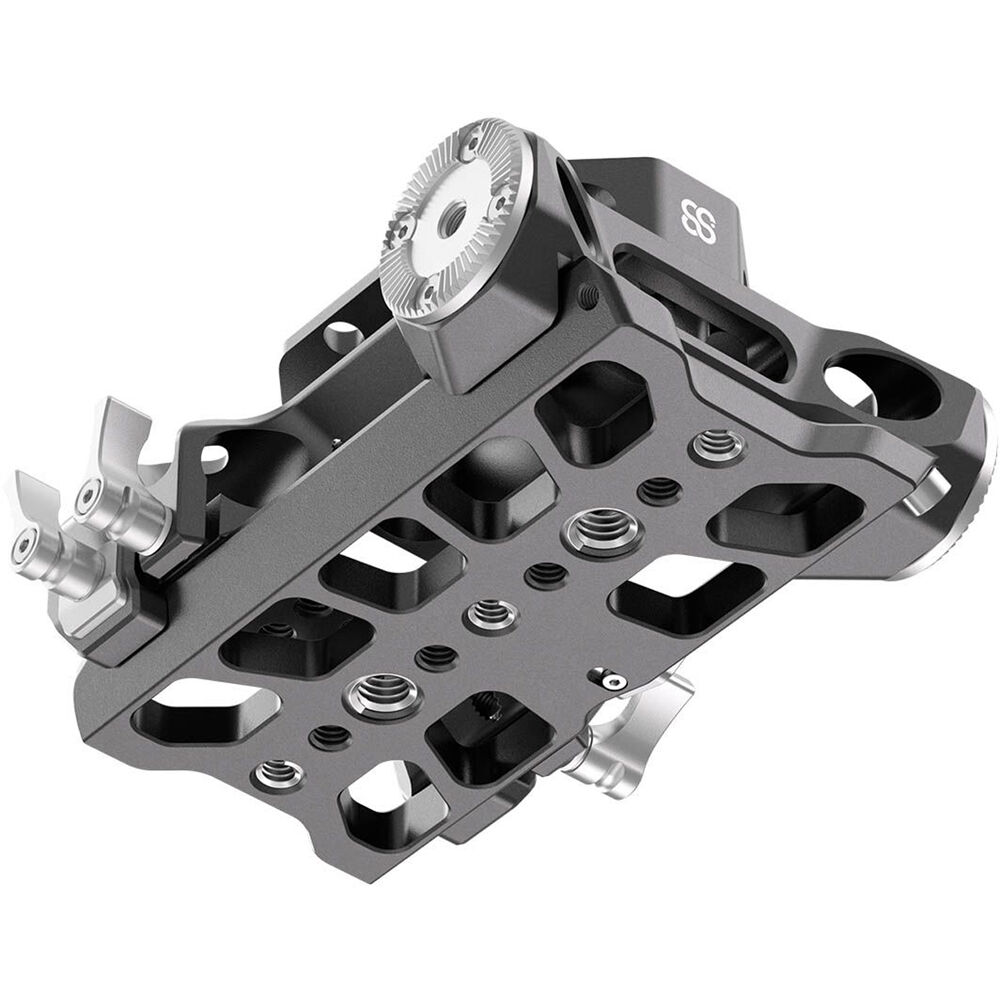

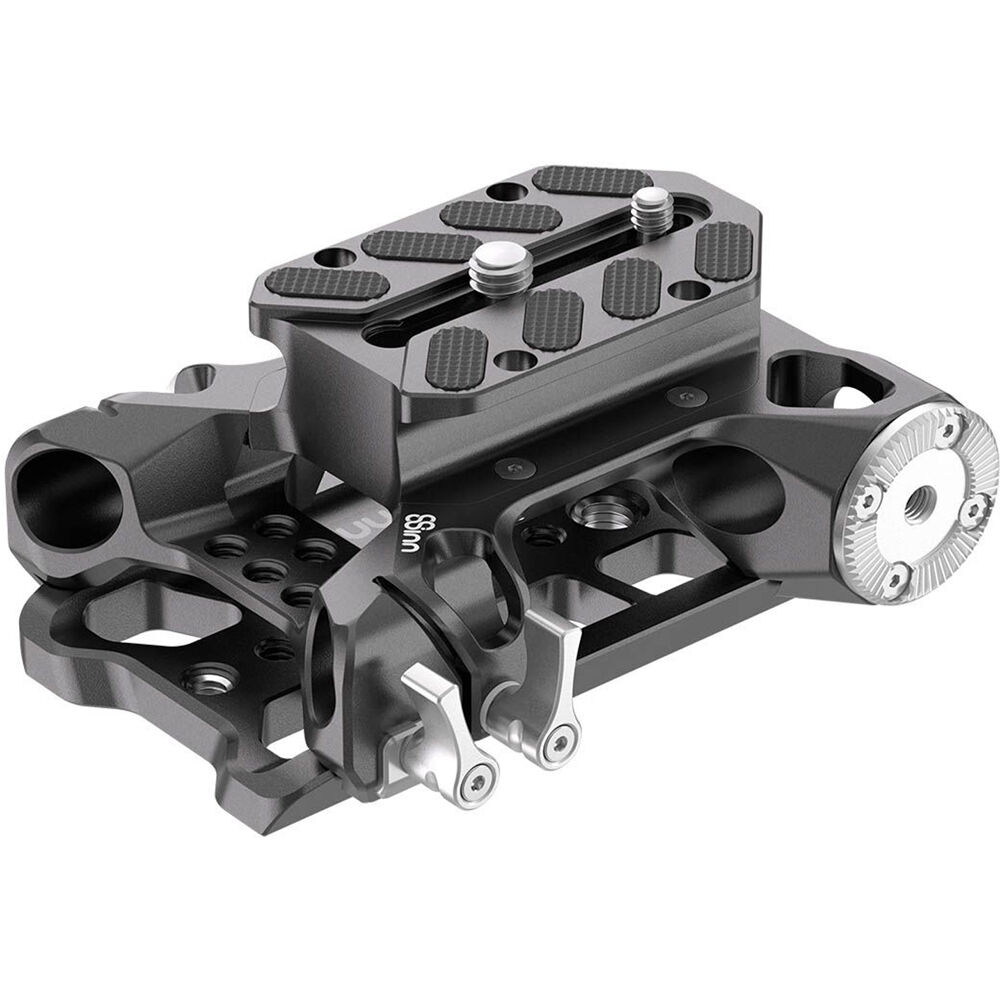

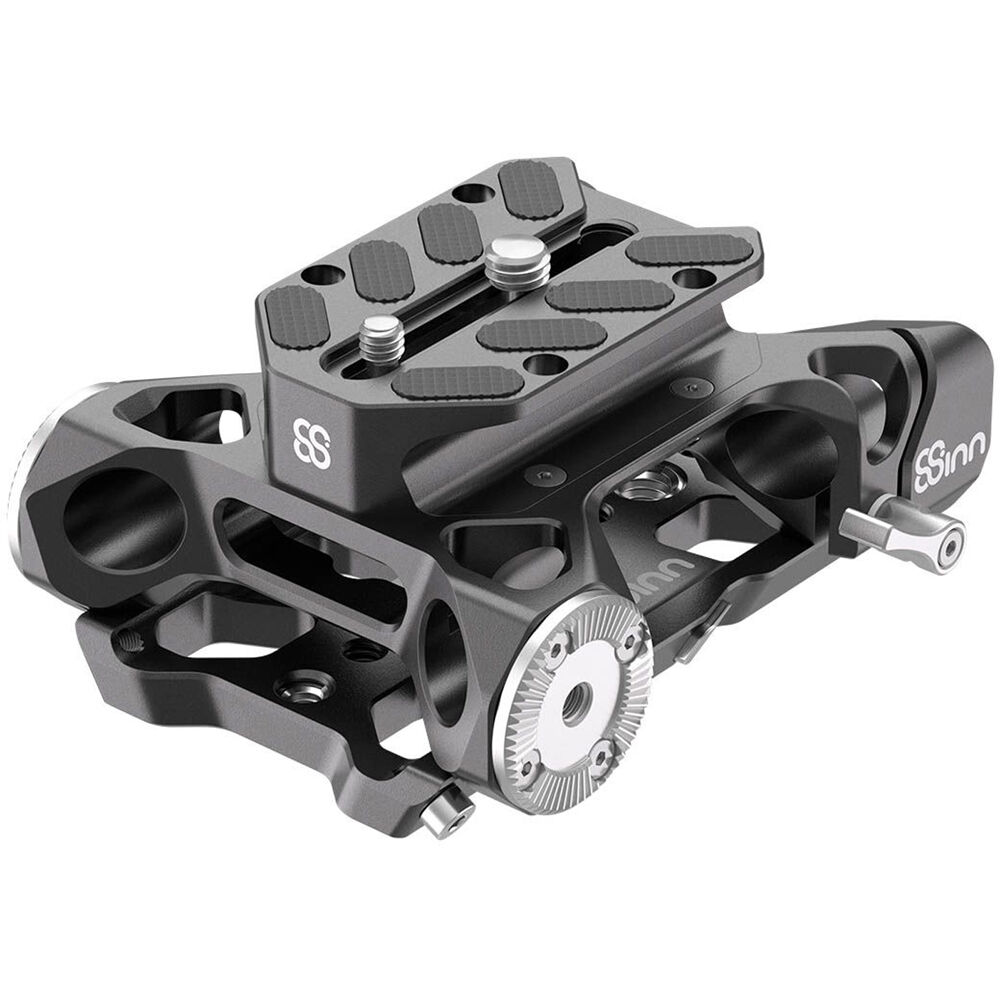

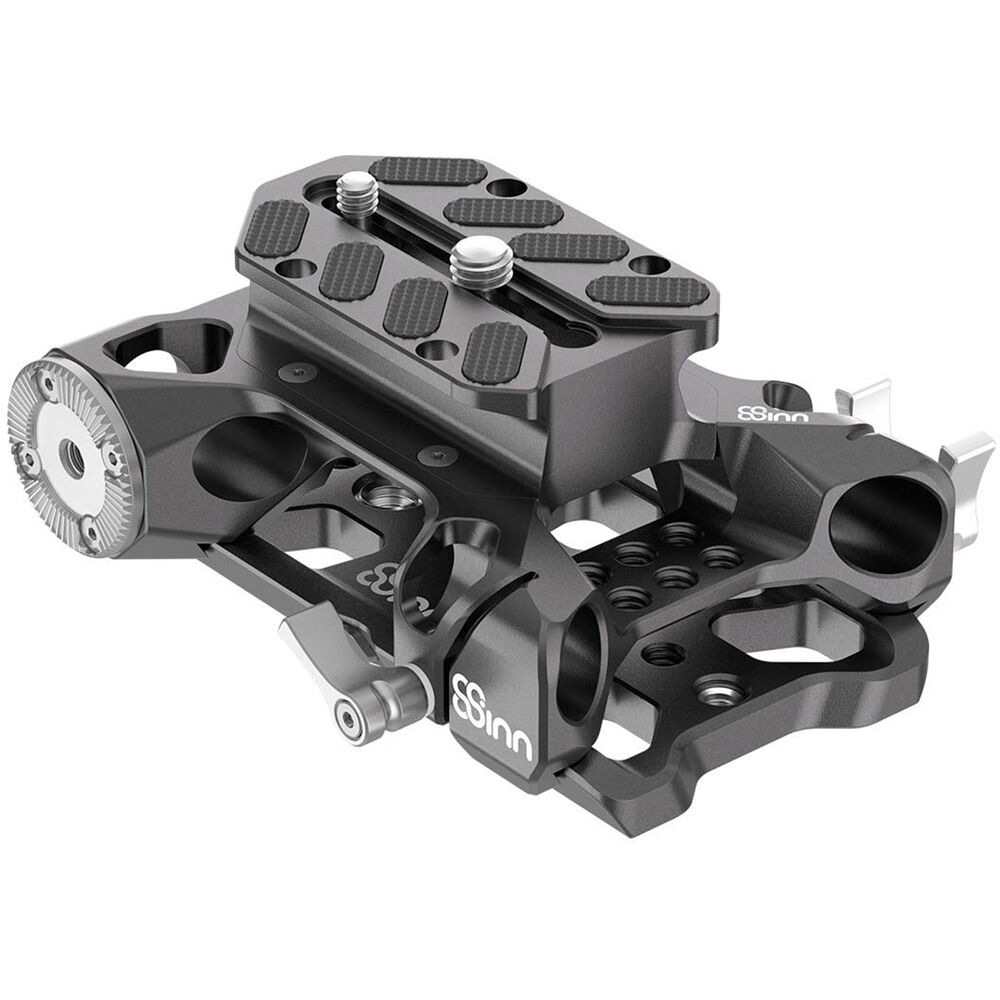

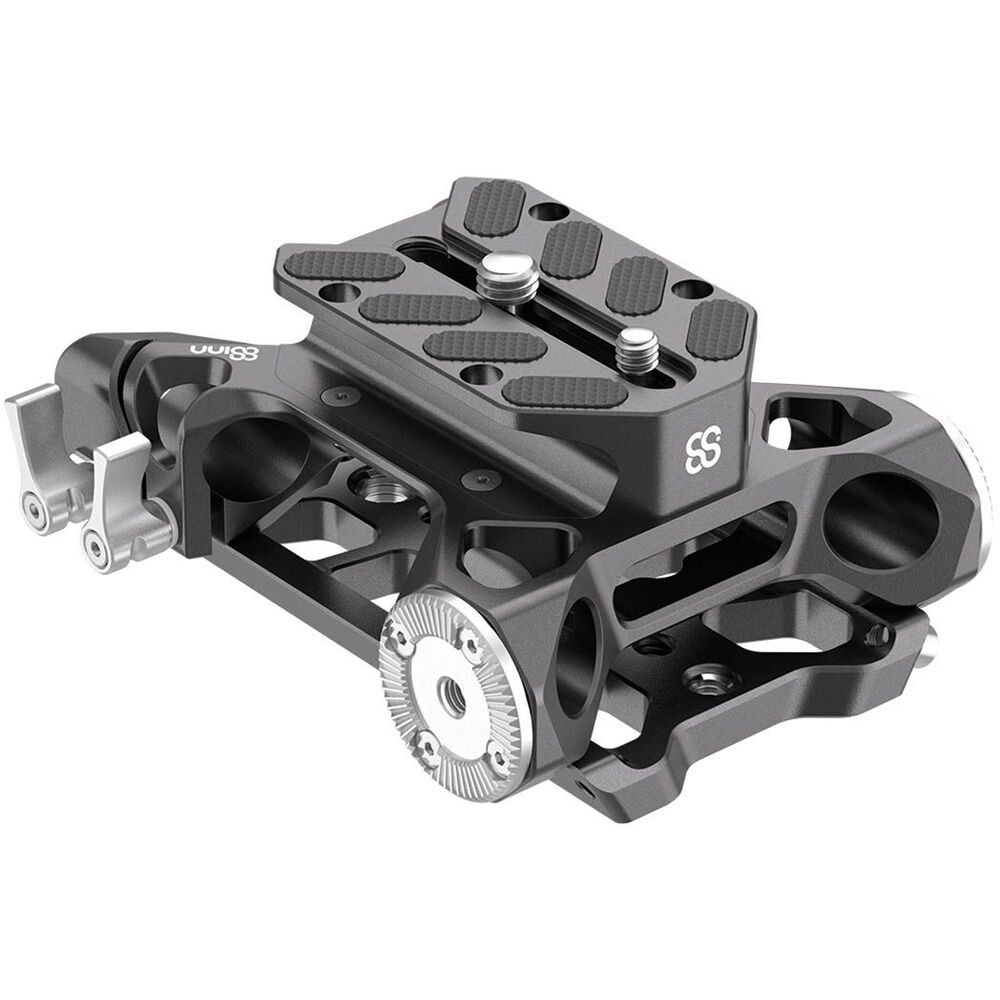

The 15mm Baseplate features 15mm LWS rod support via front and rear rod ports and a tightening lever on the left and right sides. The left side has a second lever for securing the compatible riser plate. The 15mm Baseplate offers two ARRI rosette mounts for attaching optional handgrips, and it also provides a section with multiple 1/4"-20 accessory mounting threads. The baseplate is made with excess weight cut out to provide a minimalist, lightweight design.
- Supports optional camera-specific riser plates from 8Sinn
- Compatible with the Riser Plate I, Riser Plate II, and Riser Plate Basic
- ARRI dovetail compatible
- Arca-type plate compatible
- 15mm LWS rod support
- ARRI rosette mounts
- 1/4"-20 accessory mounting threads
The Riser Plate I from 8Sinn is designed to be used with the 8Sinn 15mm Baseplate and select 8Sinn Z CAM, a7/a7R, and Blackmagic Pocket 4K/6K cages. Please see the compatibility list in the Features section below. The plate sets the cameras of those cages at an 85mm optical center.
The Riser Plate I is made of aluminum and comes with 1/4"-20 and 3/8"-16 screws. Rubber padding provides anti-scratch and anti-twist support for your cage.
- 8Sinn Cage for Z CAM E2-S6/F6/F8
- 8Sinn Cage for Z CAM E2
- 8Sinn Cage for Sony a7R III and a7 III
- 8Sinn Cage for Sony a7R IV
- 8Sinn Cage for Blackmagic Pocket Cinema Camera 4K/6K
- 8Sinn Half Cage for Blackmagic Pocket Cinema Camera 4K/6K
The 8Sinn 5" ARRI Dovetail Plate can be used with 8Sinn's 15mm Baseplate or 3rd-party ARRI dovetail bridge plates. In comparison to the 10" version from 8Sinn, this shorter and thinner plate is more ideal for balancing smaller camera setups, as opposed to large setups with large lenses. The plate is designed with cutouts throughout its length so that it can be more lightweight. In this minimalist design made out of a single piece of aluminum, the plate offers reinforced 1/4"-20 and 3/8"-16 threads, a release pin, and a stopper screw.
- 8Sinn 15mm Baseplate V2
- Limited 1-Year Manufacturer Warranty
- 8Sinn Riser Plate I
- 1/4"-20 Mounting Screw
- 3/8"-16 Mounting Screw
- Limited 1-Year Manufacturer Warranty
- 8Sinn 5" ARRI Dovetail Plate
- Limited 1-Year Manufacturer Warranty
No additional resources available
8Sinn 15mm Baseplate V2
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Battery Plate Type |
No
|
| Accessory Mounting |
6x 1/4"-20 Female Thread
|
| Tripod Mounting |
1/4"-20 Female Thread, ARRI Dovetail
|
| Rod Ports |
2x 15 mm Rod Port
|
| Shoe Mounting |
No
|
| Rosettes |
2x ARRI Rosette w/ M6 Female Thread
|
| Dimensions |
4.7 x 3.2 x 1.3" / 120 x 81 x 32 mm
4.7 x 4.3 x 1.3" / 120 x 108 x 32 mm (With Thumbscrews) |
| Weight |
7.5 oz / 212 g
|
| Support Type |
Baseplate
|
| Grip Type |
No
|
