8Sinn 8-15BP+8-RPB+8-10ADP Overview
-
1Description
-
28Sinn 15mm Baseplate
-
38Sinn Riser Plate Basic
-
48Sinn 10" ARRI Dovetail Plate

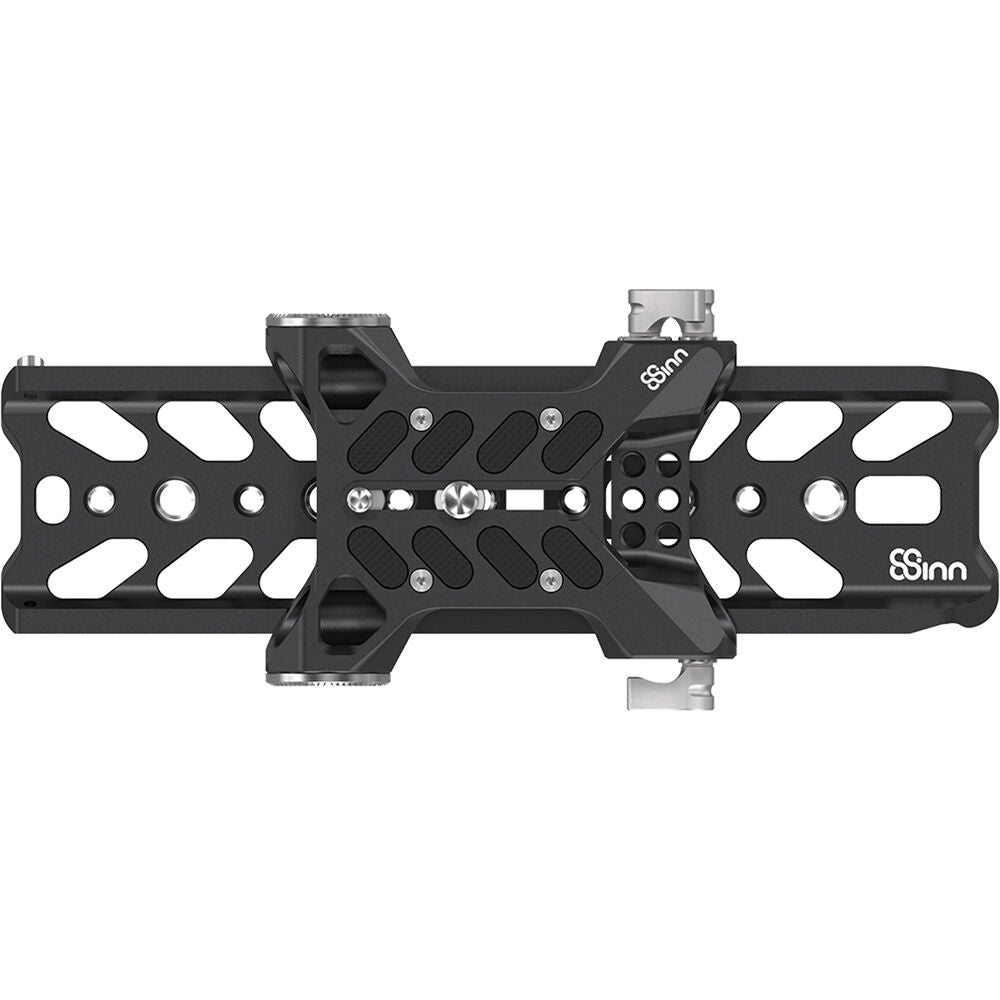

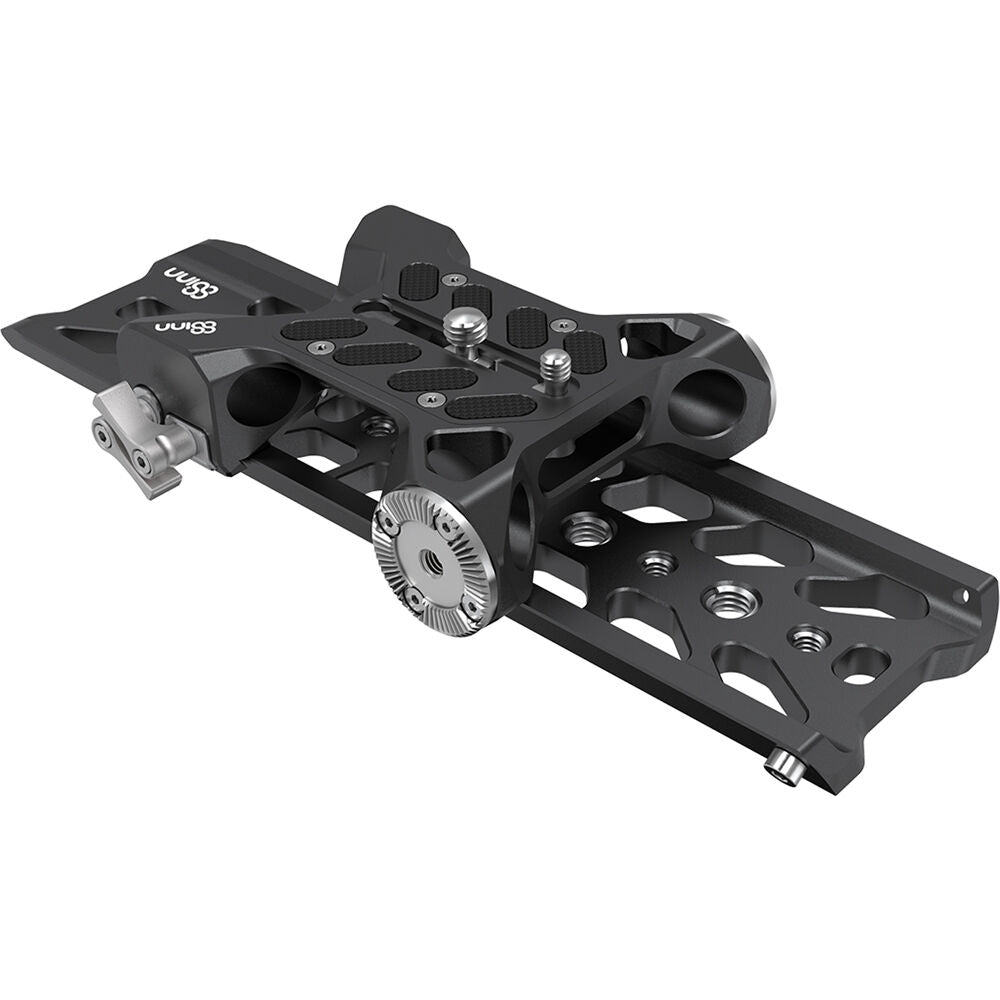

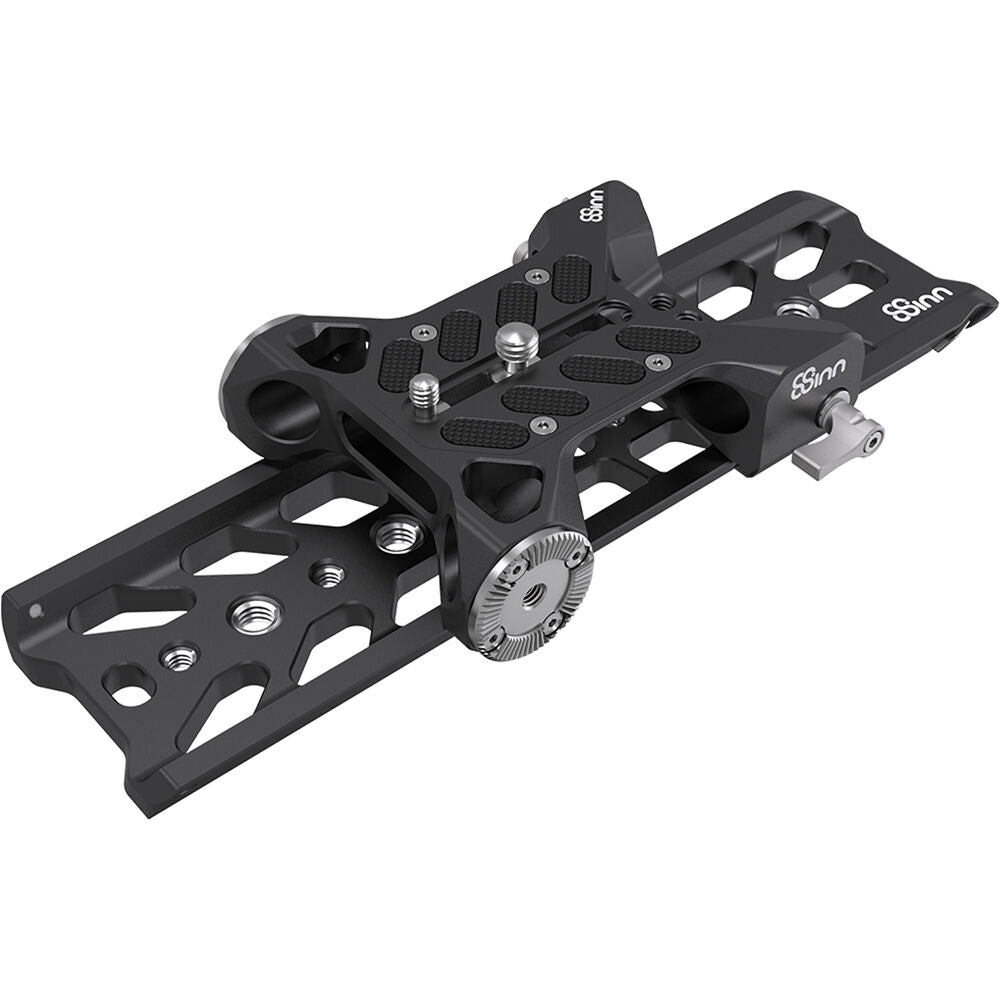

The 8Sinn 15mm Baseplate + Riser Plate Basic + 10" ARRI Dovetail Plate Bundle supports the URSA Mini, Canon C100, and Sony FX-9 cameras via the riser plate, and offers 15mm LWS rod support, two ARRI rosettes, 1/4"-20 and 3/8"-16 tripod mounts, and 1/4"-20 threads for accessories.
8Sinn 15mm Baseplate
The 8Sinn 15mm Baseplate is ARRI dovetail compatible and supports optional camera-specific riser plates from 8Sinn. Available plates include the Riser Plate Basic, which supports the URSA Mini, C100, and Sony FX-9 cameras, and the Riser Plate I, which is for select 8Sinn Z CAM, a7/a7R, and Blackmagic Pocket 4K/6K cages. These optional plates set the supported cameras at the appropriate optical center on the 15mm Baseplate.

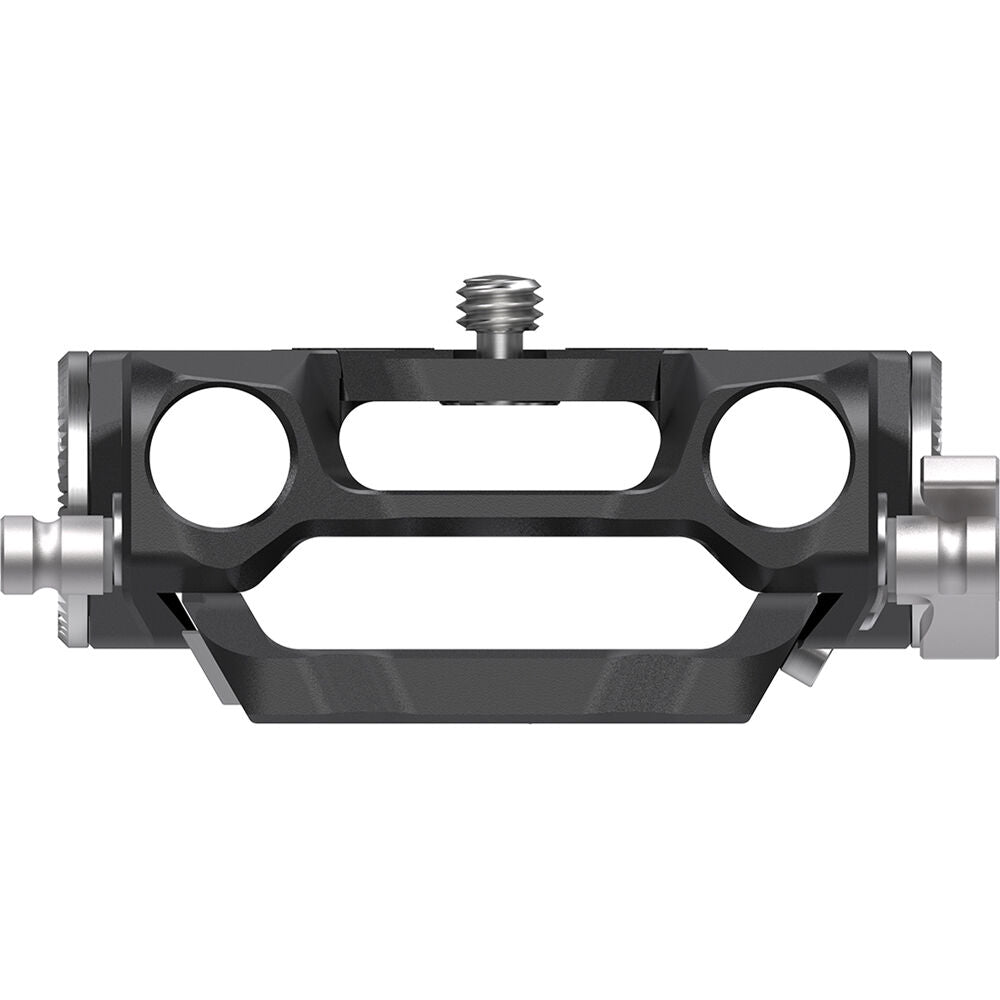

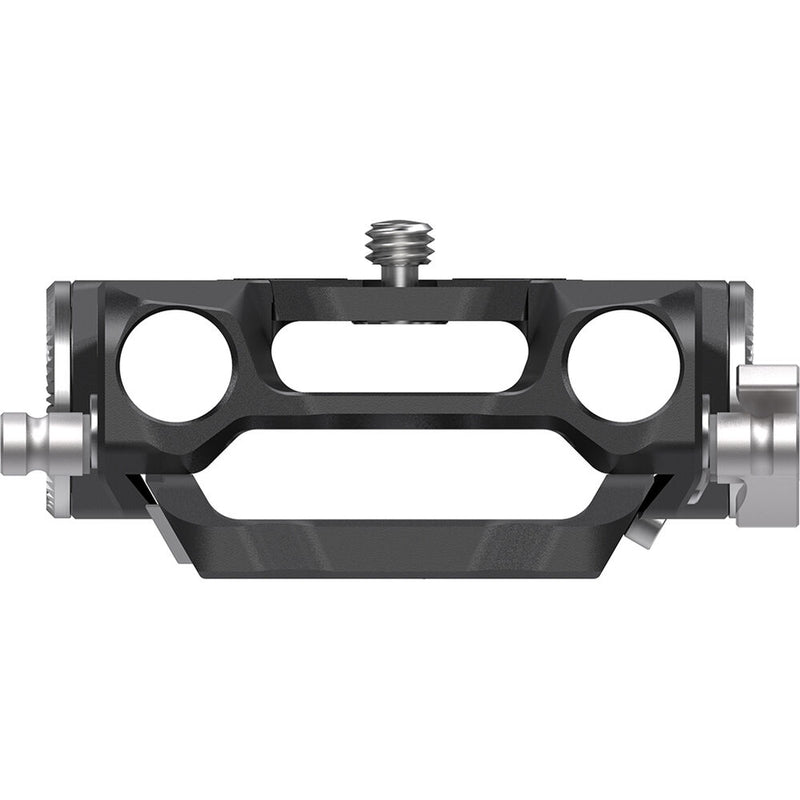

The 15mm Baseplate features 15mm LWS rod support via front and rear rod ports and a tightening lever on the left and right sides. The left side has a second lever, and this is for securing the compatible riser plate. The 15mm Baseplate offers two ARRI rosette mounts for attaching optional handgrips, and it also provides a section with multiple 1/4"-20 accessory mounting threads. The baseplate is made with excess weight cut out to provide a minimalist, lightweight design.
Features
- Supports optional camera-specific riser plates from 8Sinn
- Compatible with the Riser Plate I and Riser Plate Basic
- ARRI dovetail compatible
- 15mm LWS rod support
- ARRI rosette mounts
- 1/4"-20 accessory mounting threads
8Sinn Riser Plate Basic
The Riser Plate Basic from 8Sinn is designed to support select cameras when used with the optional 8Sinn 15mm Baseplate (8-15BP). It supports the Blackmagic URSA Mini, Canon EOS C100, and Sony FX-9 cameras, setting each camera at the optical center on the baseplate. It's made of aluminum and comes with 1/4"-20 and 3/8"-16 screws. Rubber padding provides better support for your camera.
8Sinn 10" ARRI Dovetail Plate
The 8Sinn 10" ARRI Dovetail Plate can be used with 8Sinn's 15mm Baseplate or 3rd-party ARRI dovetail bridge plates to balance large camera setups with large lenses. The plate is designed with cutouts throughout its length so that it can be more lightweight. In this minimalist design made out of a single piece of aluminum, the plate offers reinforced 1/4"-20 and 3/8"-16 threads, a release pin, and a stopper screw.
Note:
This plate is known not to work with select SmallRig and Kondor Blue ARRI dovetail baseplates.
In the Box
- 8Sinn 15mm Baseplate
- 8Sinn Riser Plate Basic
- 1/4"-20 Mounting Screw
- 3/8"-16 Mounting Screw
- Limited 1-Year Warranty
- 8Sinn 10" ARRI Dovetail Plate
Table of Contents
- Description
- 8Sinn 15mm Baseplate
- 8Sinn Riser Plate Basic
- 8Sinn 10" ARRI Dovetail Plate
8Sinn 15mm Baseplate Specs
| Support Type |
Baseplate |
| Grip Type |
None |
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing |
| Accessory Mounting |
2 x 1/4"-20 Thread |
| Rod Ports |
4 x 15 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
2 x ARRI Rosette w/ M6 Thread |
General
| Construction |
Aluminum |
| Dimensions |
4.72 x 3.19 x 1.26" / 12 x 8.1 x 3.2 cm |
| Weight |
0.47 lb / 212 g |
Packaging Info
| Package Weight |
0.555 lb |
| Box Dimensions (LxWxH) |
7.7 x 4.8 x 1.8" |
8Sinn Riser Plate Basic Specs
General
| Material |
Aluminum with Rubber Padding |
| Mount Type |
1/4"-20 and 3/8"-16 Screws Included |
| Dimensions |
3 x 1.9 x 0.24" / 7.6 x 4.9 x 0.6 cm |
| Weight |
1.5 oz / 43 g |
8Sinn 10" ARRI Dovetail Plate Specs
| Material |
Aluminum |
| Mount Type |
1/4"-20 Female
3/8"-16 Female |
| Dimensions |
10 x 2.7 x 0.56" / 25.4 x 6.8 x 1.4 cm |
| Weight |
0.55 lb / 251 g |
Packaging Info
| Package Weight |
0.725 lb |
| Box Dimensions (LxWxH) |
12.4 x 4.2 x 2.2" |
