| ₹ 310.0 includes GST and import duties. | |
| B2B customers can avail ₹ 47.28 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

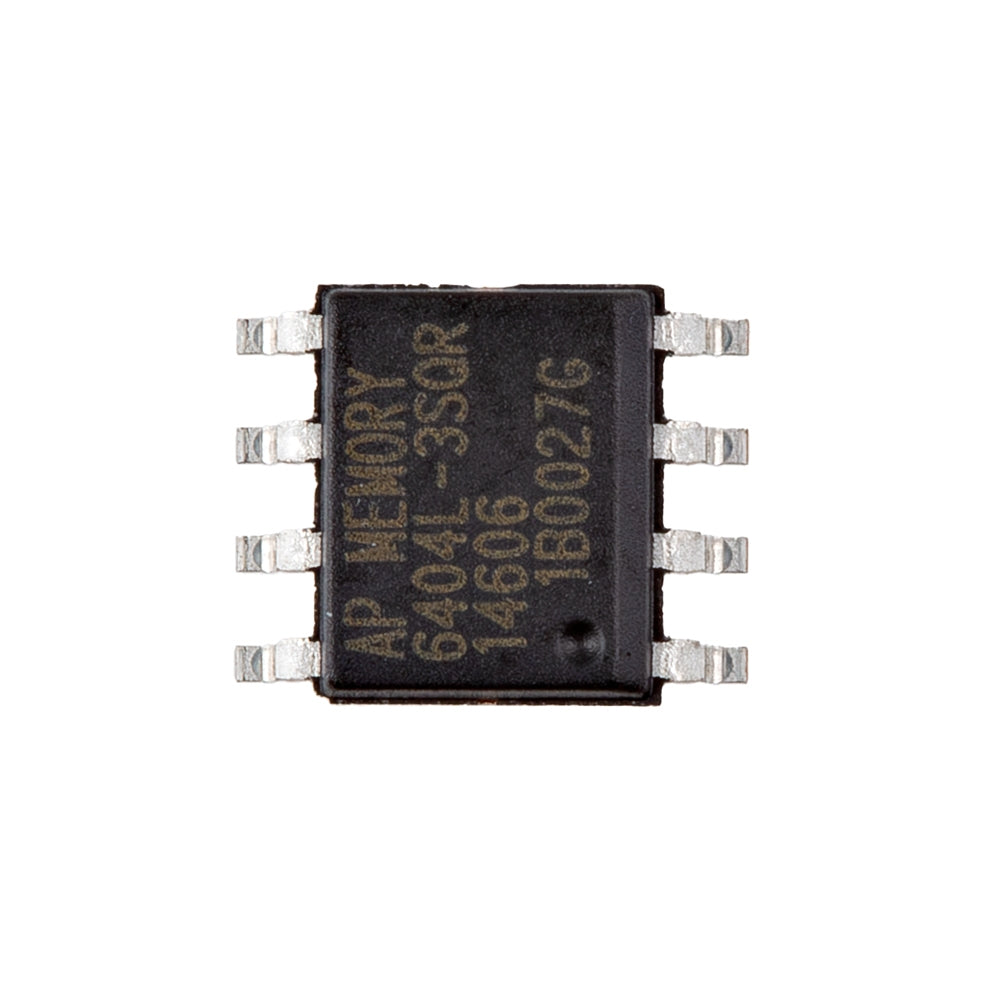

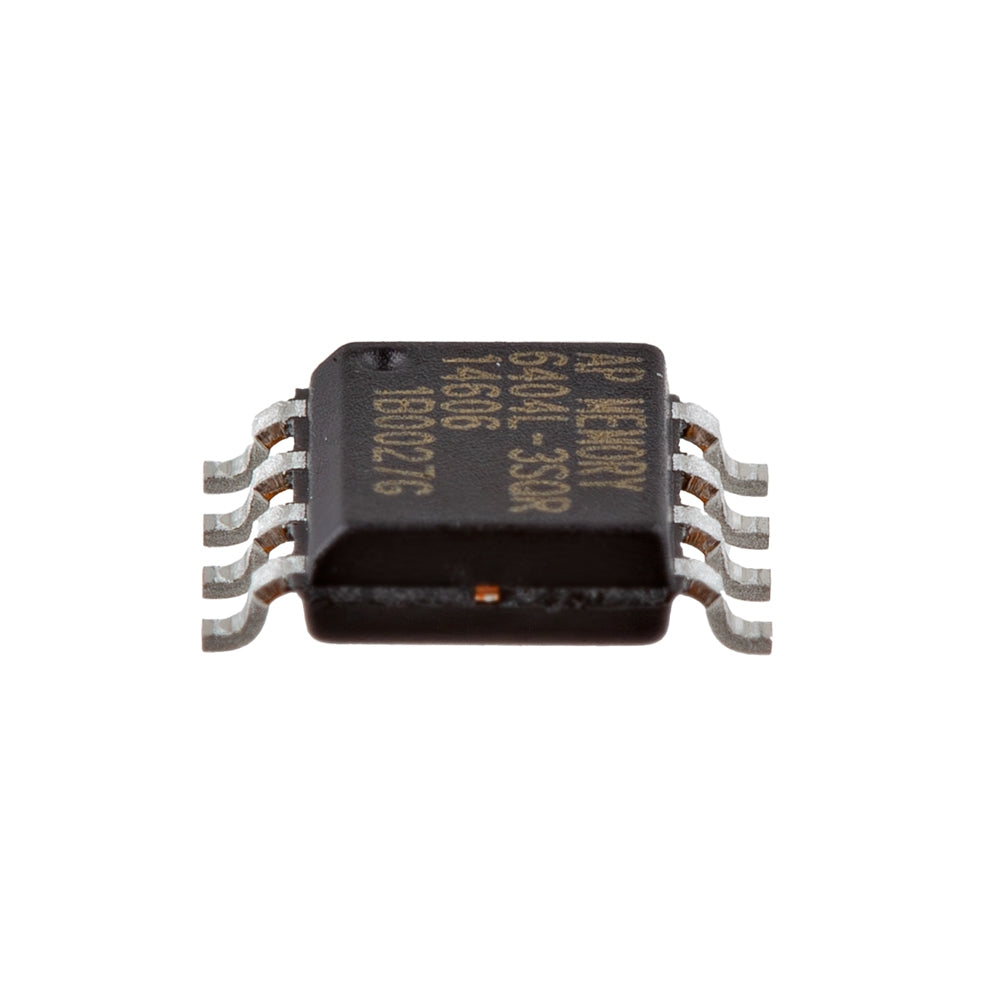

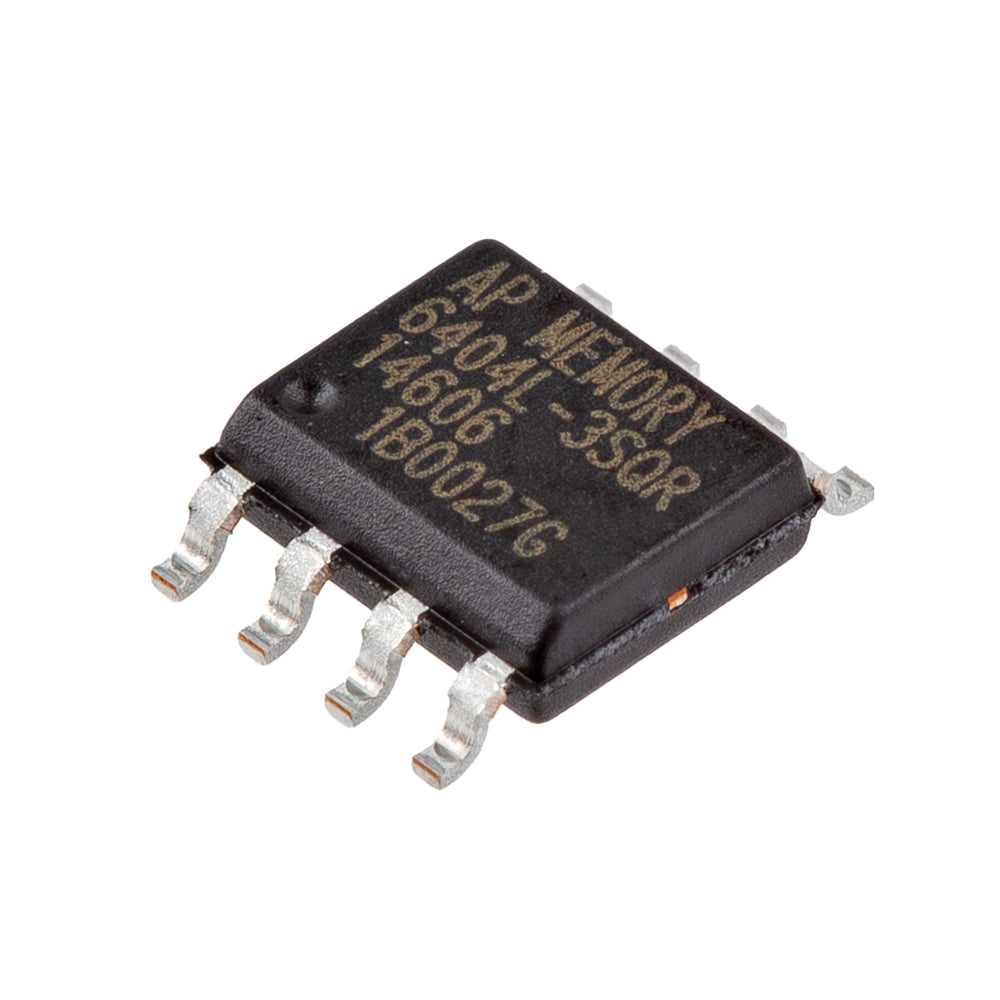

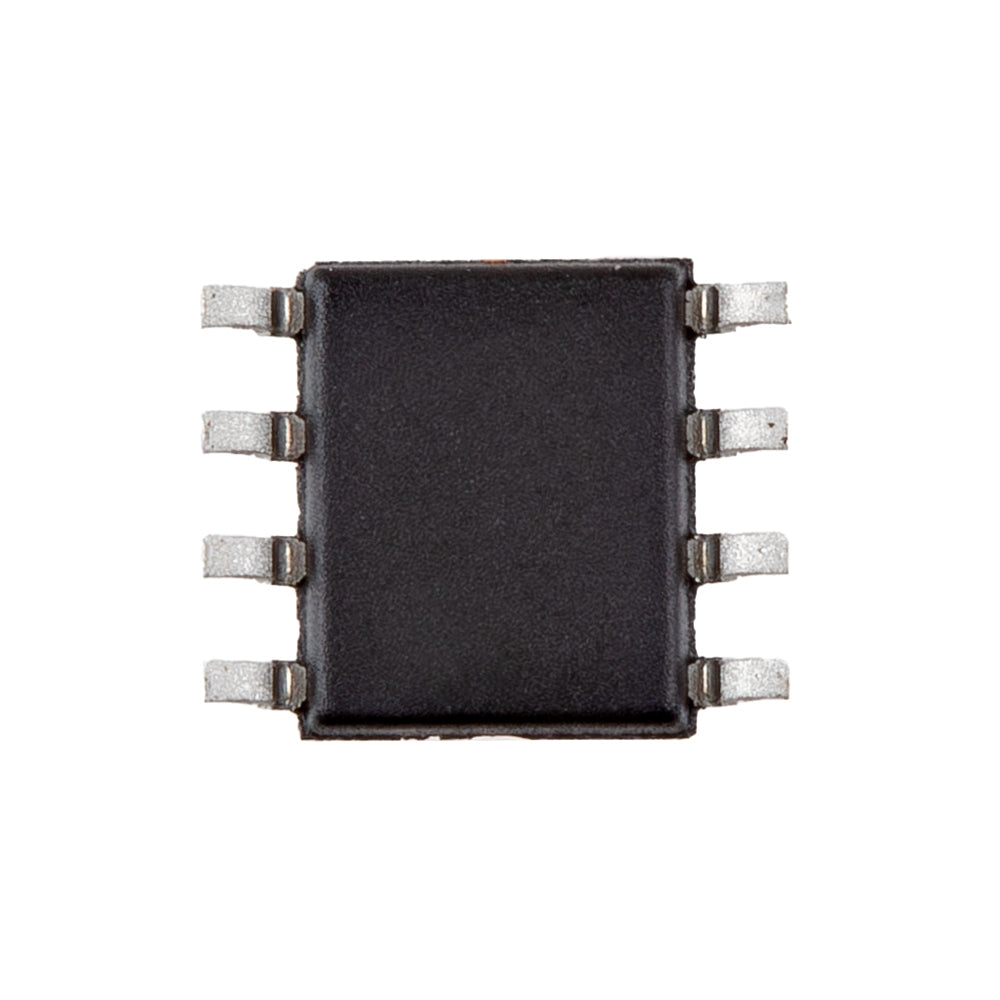

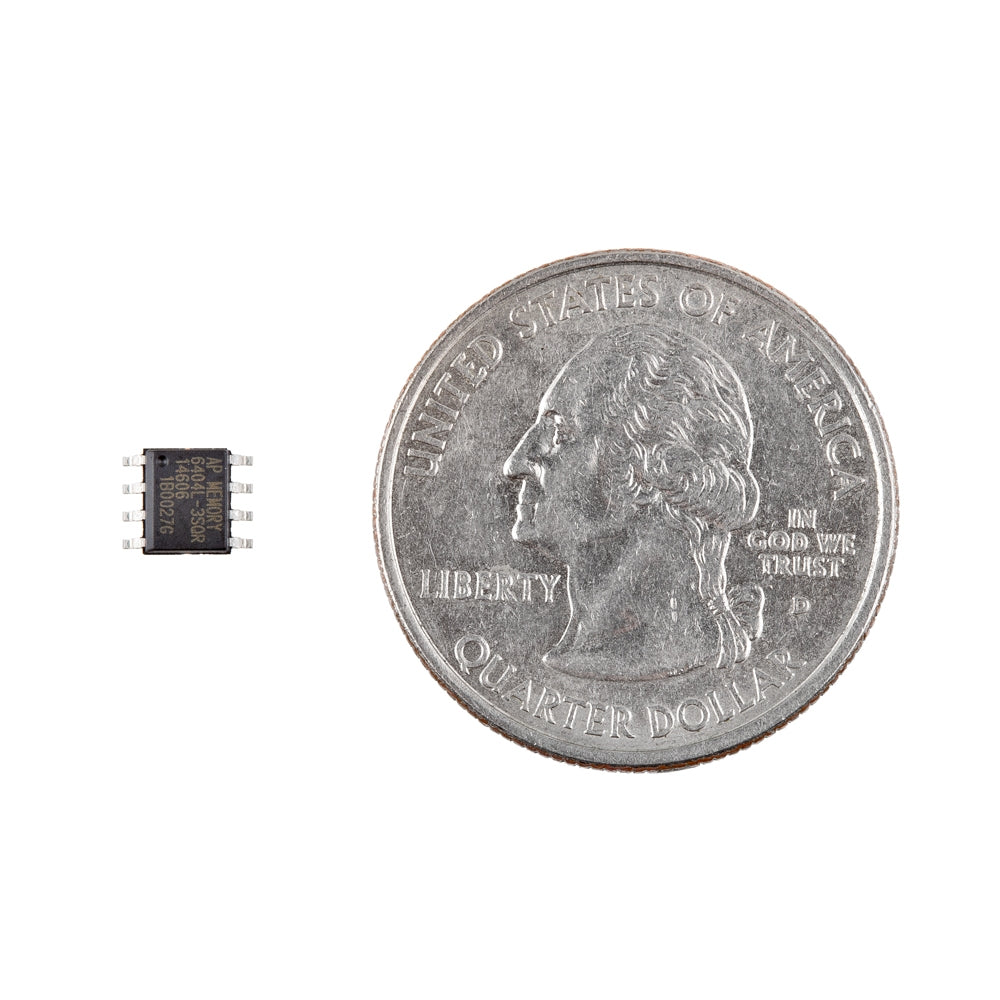

This PSRAM chip can add 8 Megabytes of RAM for use on Teensy 4.1.
Features & Specs
- Memory Size: 64 Mbit
- Memory Type: PSRAM
- Organization: 8 M x 8
- Clock Frequency: 84MHz for Linear Burst operation
- Interface Type: SPI/QPI with SDR mode
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 2.7V
- Maximum Standby Current:
- 350µA @ 105°C
- 250µA @ 85°C
- 140µA @ 25°C
- Operating Temperature Range:
- Tc = -40°C to +85°C (standard range)
- Tc = -40°C to +105°C (extended range)
- Mounting: SMD/SMT
- Package: SOP-8L(150)
Features & Specs
- Memory Size: 64 Mbit
- Memory Type: PSRAM
- Organization: 8 M x 8
- Clock Frequency: 84MHz for Linear Burst operation
- Interface Type: SPI/QPI with SDR mode
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 2.7V
- Maximum Standby Current:
- 350µA @ 105°C
- 250µA @ 85°C
- 140µA @ 25°C
- Operating Temperature Range:
- Tc = -40°C to +85°C (standard range)
- Tc = -40°C to +105°C (extended range)
- Mounting: SMD/SMT
- Package: SOP-8L(150)
Documentation
- Teensy 4.1 Hookup Details
- Memory Test Program
- Datasheet (APS6404L-3SQR)
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 303.8 |
| 3-5 | ₹ 300.7 |
| 5-10 | ₹ 294.5 |
| 10+ | ₹ 288.3 |
Bulk discount will be automatically applied during checkout based on quantity.
