Description

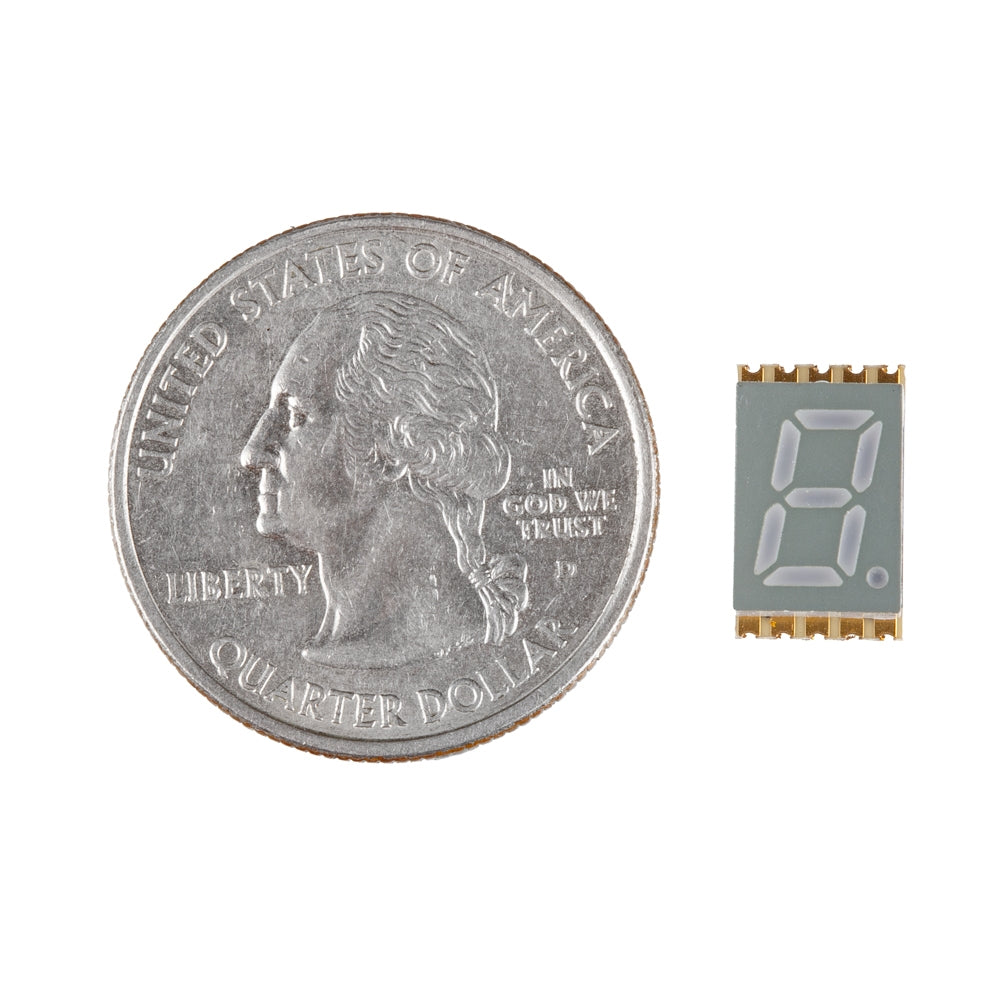

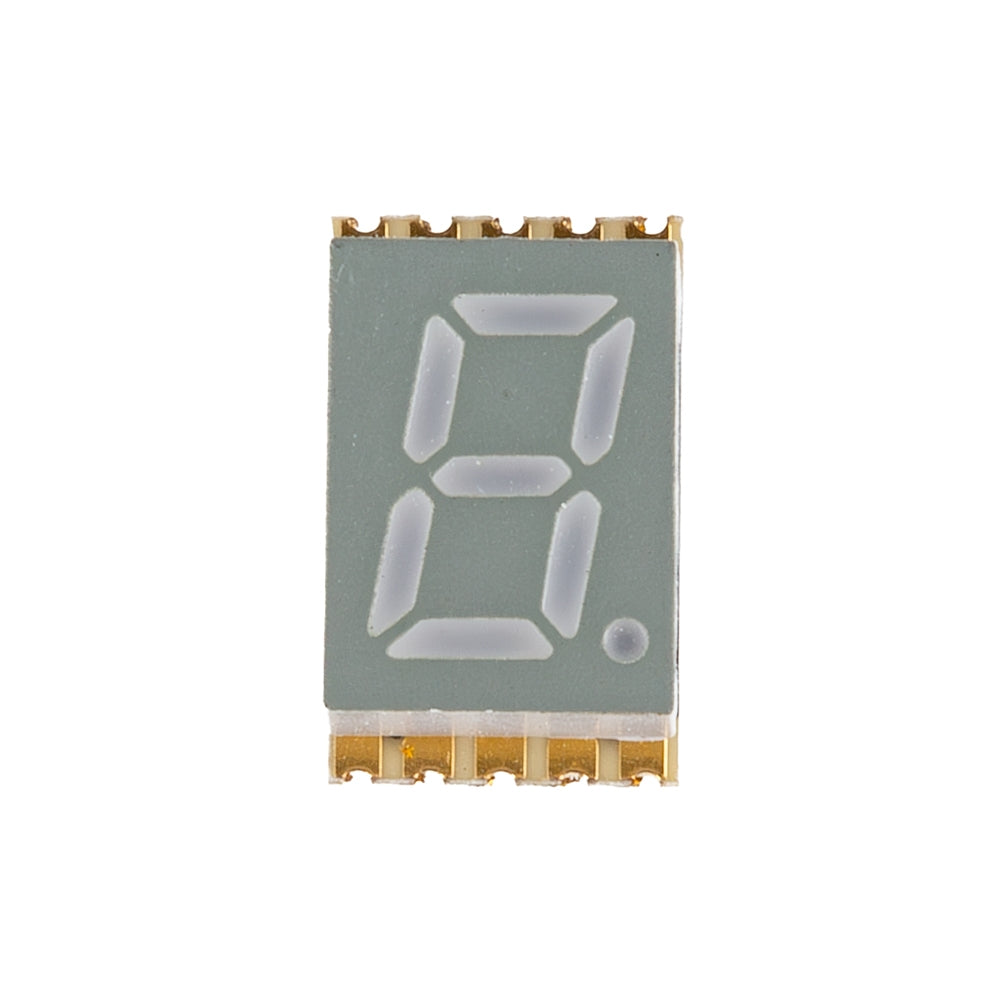

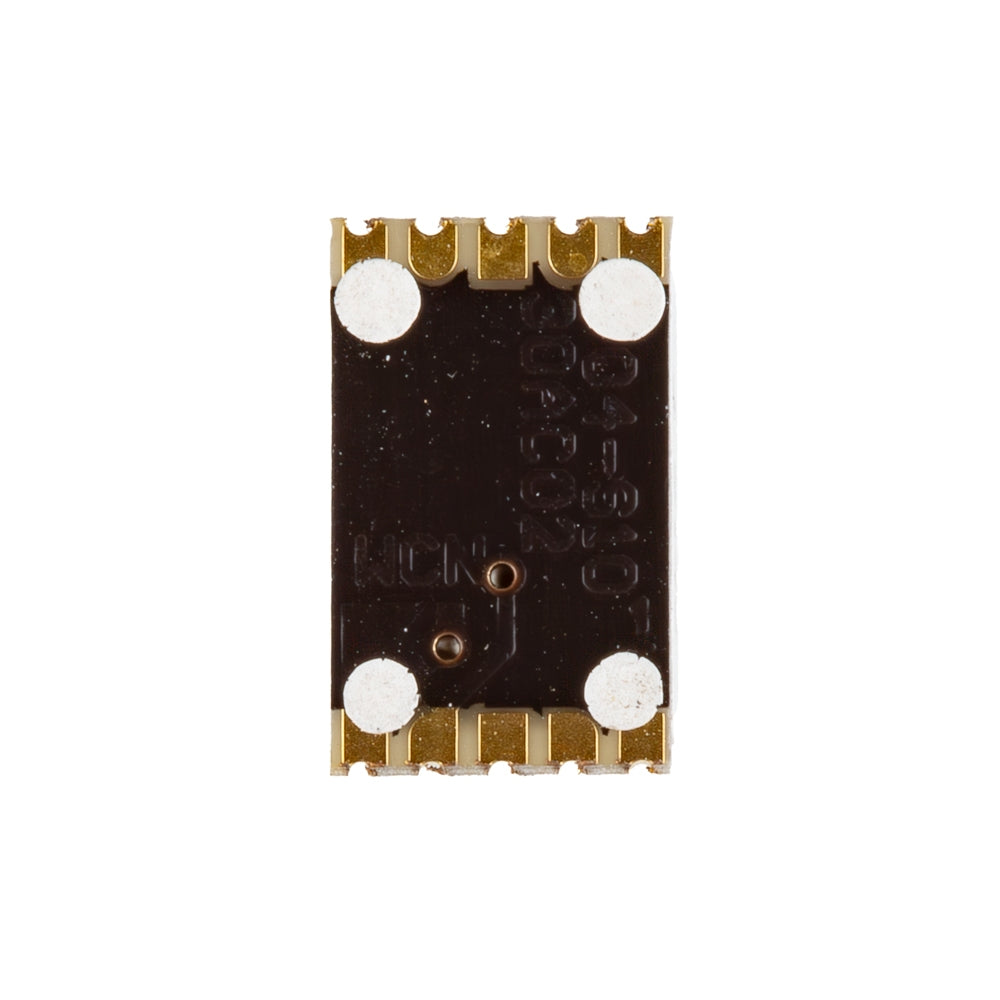

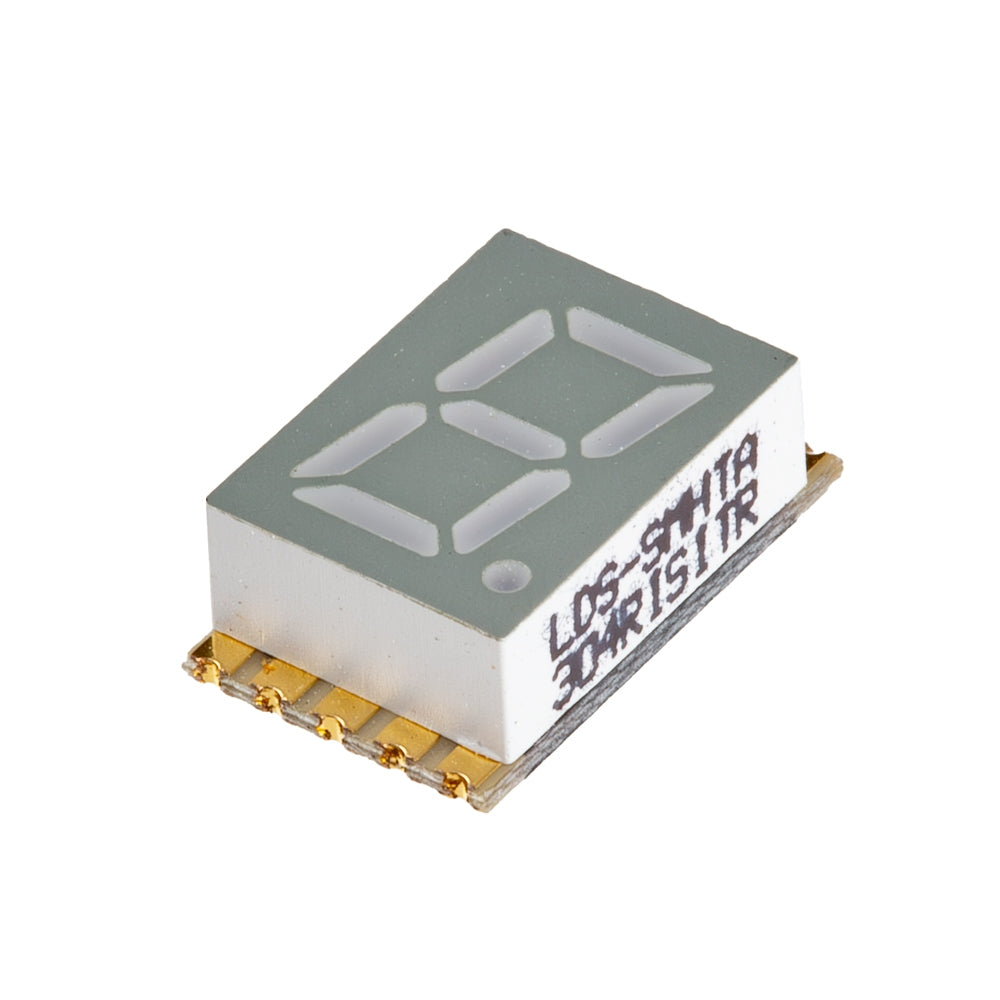

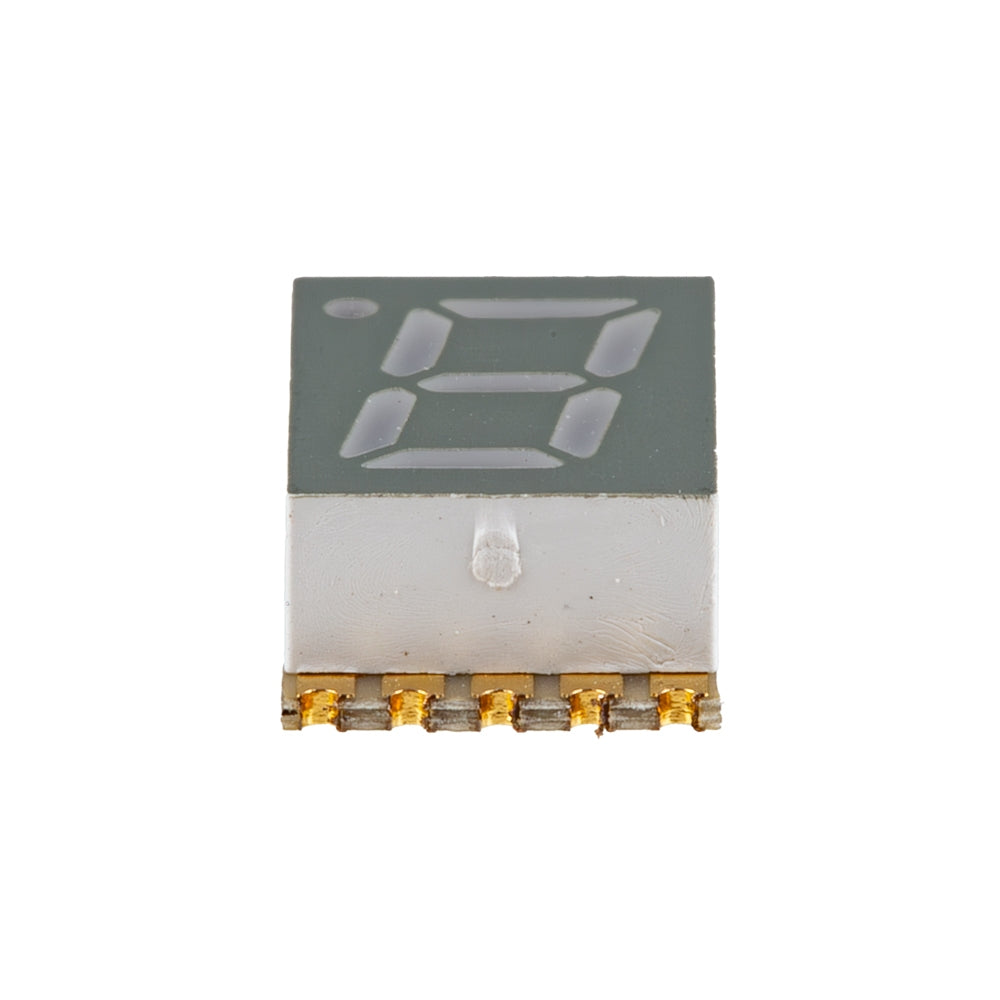

A compact, surface-mount Red 7-Segment display with a Common Anode configuration and 0.3" digit height for low-profile applications.
Features & Specs
- Number of Characters: 1
- Dimensions: 0.394" H x 0.287" W x 0.154" D (10.00mm x 7.30mm x 3.90mm)
- Digit Size: 0.30" (7.62mm)
- Display Type: 7-Segment
- Common Pin: Common Anode
- Color: Red
- Voltage - Forward (Vf) (Typ): 1.95V
- Current -Test: 20mA
- Millicandela Rating: 4.5mcd
- Wavelength - Peak: 640nm
- Power Dissipation (Max): 60mW
- Base Product Number: LDS-SMHTA304
Features & Specs
- Number of Characters: 1
- Dimensions: 0.394" H x 0.287" W x 0.154" D (10.00mm x 7.30mm x 3.90mm)
- Digit Size: 0.30" (7.62mm)
- Display Type: 7-Segment
- Common Pin: Common Anode
- Color: Red
- Voltage - Forward (Vf) (Typ): 1.95V
- Current -Test: 20mA
- Millicandela Rating: 4.5mcd
- Wavelength - Peak: 640nm
- Power Dissipation (Max): 60mW
- Base Product Number: LDS-SMHTA304
