Description
4ms 4MWAVREC Overview
- 1Description
- 2Recording
- 3Playback
- 4Eurorack Ready

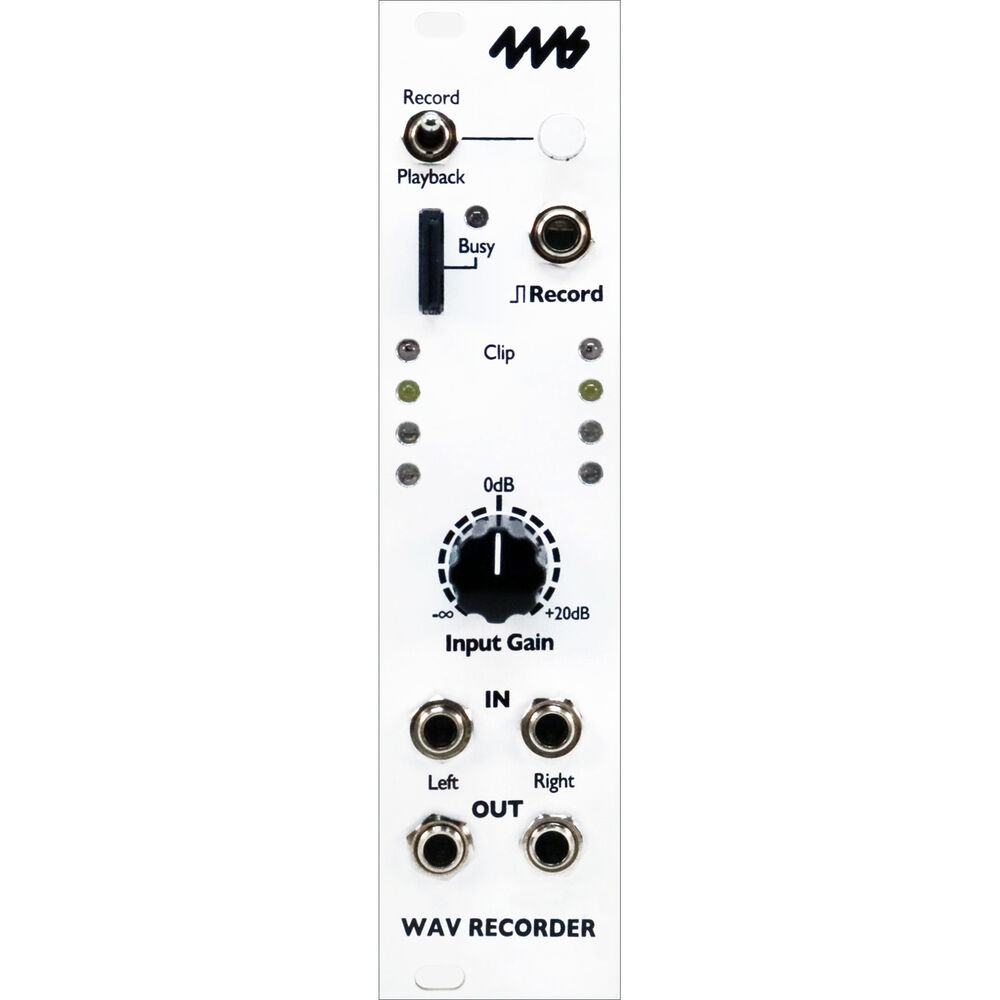

Monitor, record, and playback high-fidelity stereo audio files with the 4ms WAV Recorder, a 6 HP Eurorack module that accepts line-level to modular-level signals and records them to a microSD card, offering 24-bit / 96 kHz resolution. A built-in trigger jack can be used for capturing rhythmic loops or synchronizing multiple WAV Recorder modules for multitrack recording and playback.
Audio can be monitored without recording, allowing the WAV Recorder to be used as a preamp for boosting any signal from synthesizer, to smartphone, to modular level, without clipping. The WAV Recorder ships with a ribbon power cable and mounting screws, as well as a 16GB microSD card, and an SD-card adapter.
Recording
- Records high-fidelity, low-noise, stereo WAV files onto microSD Card
- Up to 96 kHz, 24-bit stereo recording
- Extremely low noise, high-fidelity design
- Configurable to 96, 48, or 44.1 kHz; 24-bit or 16-bit; stereo or mono
- Accepts modular signal level, line level, or headphone level
- Recording time and number of files are limited only by available space on card: Typical cards can hold hundreds of hours of samples
- Continuous Recording feature automatically breaks long recordings (>6 hours, typically) into multiple 4GB files. With a large microSD card (128GB), you can literally record continuously for 2 weeks without stopping
Playback
- Playback previous recordings or standard WAV files on the microSD Card, without renaming files
- Playback and Record activated by button press or a trigger jack
- Gain knob and LED level meter allows you easily boost or cut any signal, from synths to smart phones, without clipping
- Audio can be monitored without recording, so the WAV Recorder can also be used as a preamp for boosting line-level signals to modular level
- Connects to the LISTEN modules for recording directly from the main output
- 24-bit, 96 kHz Codec (DAC and ADC)
Eurorack Ready
- 6 HP Eurorack format module
- Maximum Depth: 0.98" (25mm)
- Includes power ribbon cable with 10-pin Eurorack power header
- Power consumption: +12V: 112mA, -12V: 12mA
In the Box
- 4ms WAV Recorder Eurorack Module (6 HP)
- 16GB microSD Card (Class 10)
- SD Adapter
- Eurorack Ribbon Power Cable
- Set of M3 Knurlie Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Table of Contents
- Description
- Recording
- Playback
- Eurorack Ready
4ms 4MWAVREC Specs
Key Specs
| Sound Generation |
Digital
|
| Audio I/O |
2 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input
2 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output |
| CV/Gate I/O |
1 x 1/8" / 3.5 mm TS Trigger Input
|
| Eurorack Current Consumption |
112 mA on +12 V Rail
12 mA on -12 V Rail |
| Horizontal Pitch |
6 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| AD/DA Conversion |
24-Bit / 96 kHz
|
Sounds
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
Yes
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
Number of LFOs: 2 x Global
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
2 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input
2 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
1 x 1/8" / 3.5 mm TS Trigger Input
|
| Control Voltage Level |
Trigger In: +5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Frequency Response |
Playback:
20 Hz to 20 kHz ±0.1 dB |
| Maximum Input Level |
22 V p-p
|
| SNR |
1/8" / 3.5 mm A/D Converters:
91.7 dB (16-Bit, 44.1 kHz) 88.9 dB (24-Bit, 96 kHz) |
| Included Software |
No
|
| Mobile App Compatible |
No
*As of July, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
112 mA on +12 V Rail
12 mA on -12 V Rail |
Physical
| Color |
White
|
| Horizontal Pitch |
6 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.265 lb
|
| Box Dimensions (LxWxH) |
6.2 x 3.6 x 2.1"
|
