Description

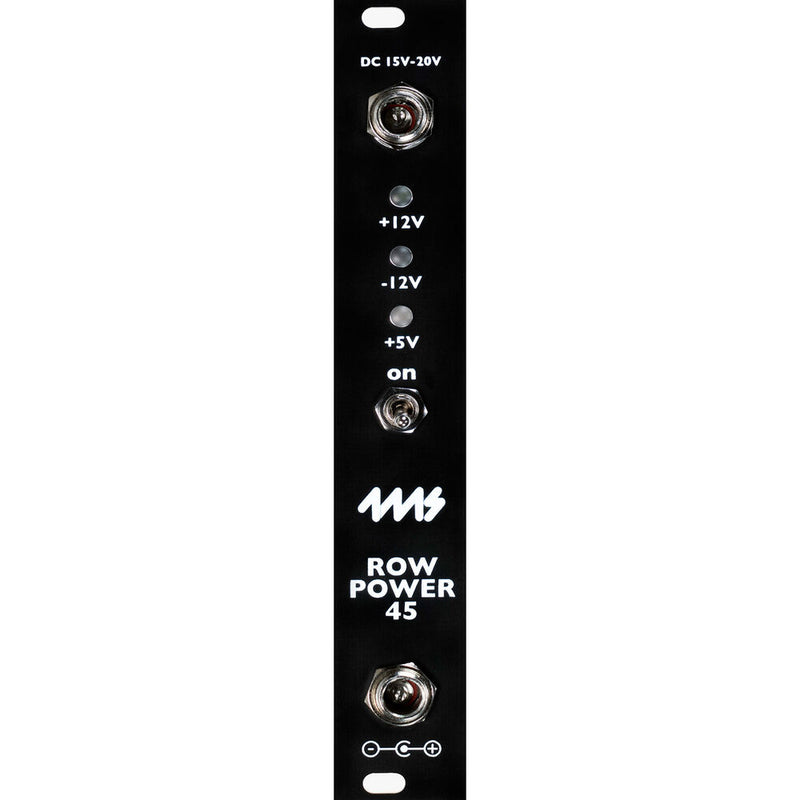

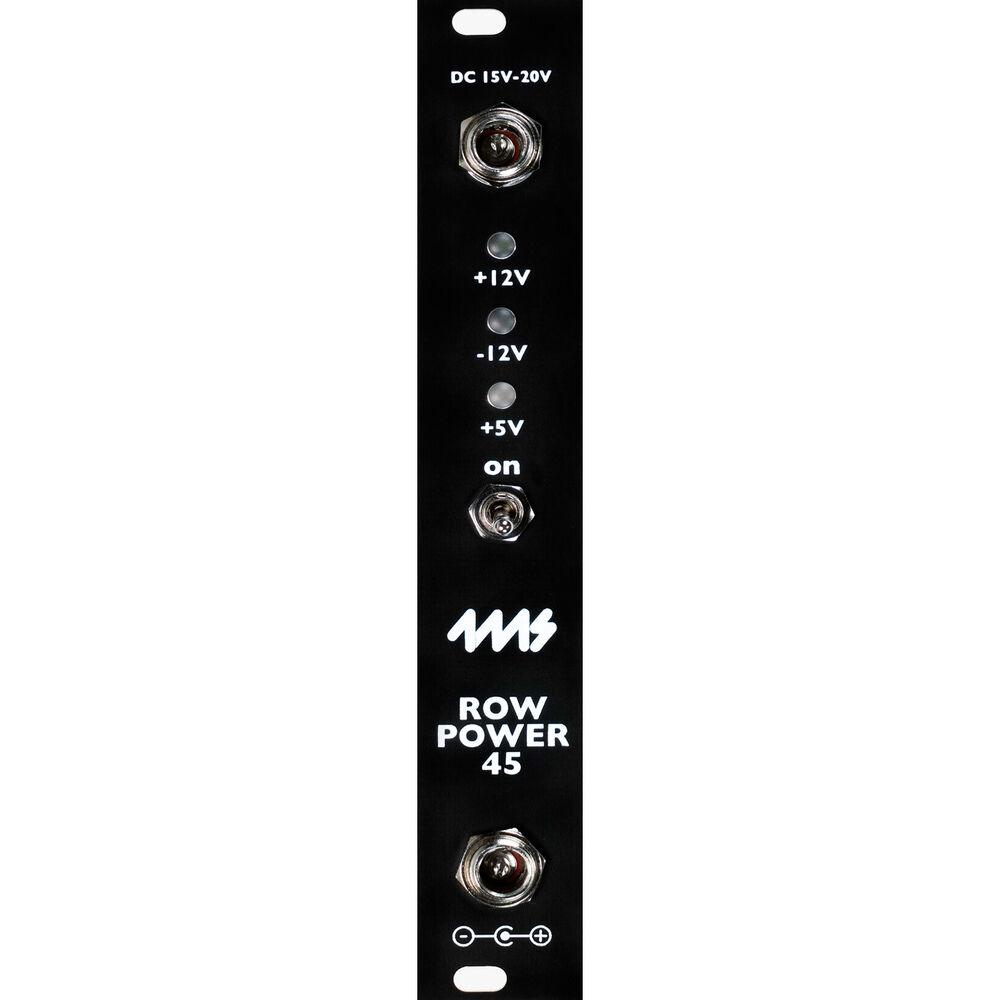

4ms RP45 Overview
Power several rows of modules with the 4ms Row Power 45, a 4 HP Eurorack modular synthesizer power supply that powers up to 3 typical rows of modules in an enclosure or skiff. Two barrel jacks allow you to daisy chain to multiple Row Power modules (or Pod enclosure) using a single common laptop-style power brick (sold separately), which can power 3 to 5 rows of modules. A power switch cuts power without interrupting the daisy chain.
The Row Power 45 is compatible with the 4ms Row Power Shield (sold separately), a device that attaches to the back of the Row Power 45 and monitors the amount of current being drawn, as well as the voltages of the power rails. The information is transmitted wirelessly via Bluetooth and displayed on a phone or tablet. The Row Power 45 ships with a set of mounting screws.
- Two power jacks for daisy-chaining multiple Row Power units: a common laptop-style power brick could typically run 3-5 rows or Pods
- On/off switch cuts power without interrupting the daisy-chain
- Row Power 45 provides more than enough power for three typical rows of modules
- Ultraclean: Each rail is separately regulated with high-grade components
- Row Power 45 is efficient, so it won't heat up your system

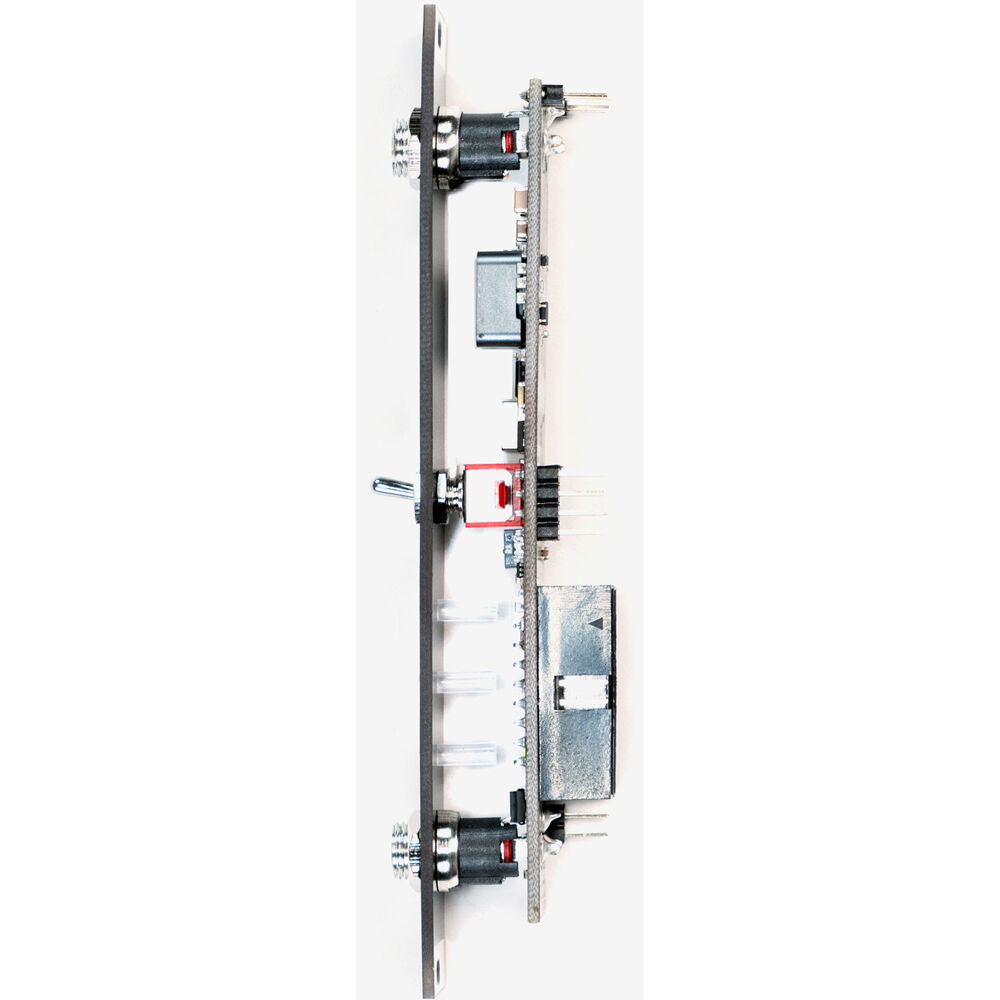

- Skiff-friendly: only 1.01" (27mm) with power connectors installed
- CV/Gate headers for expansion

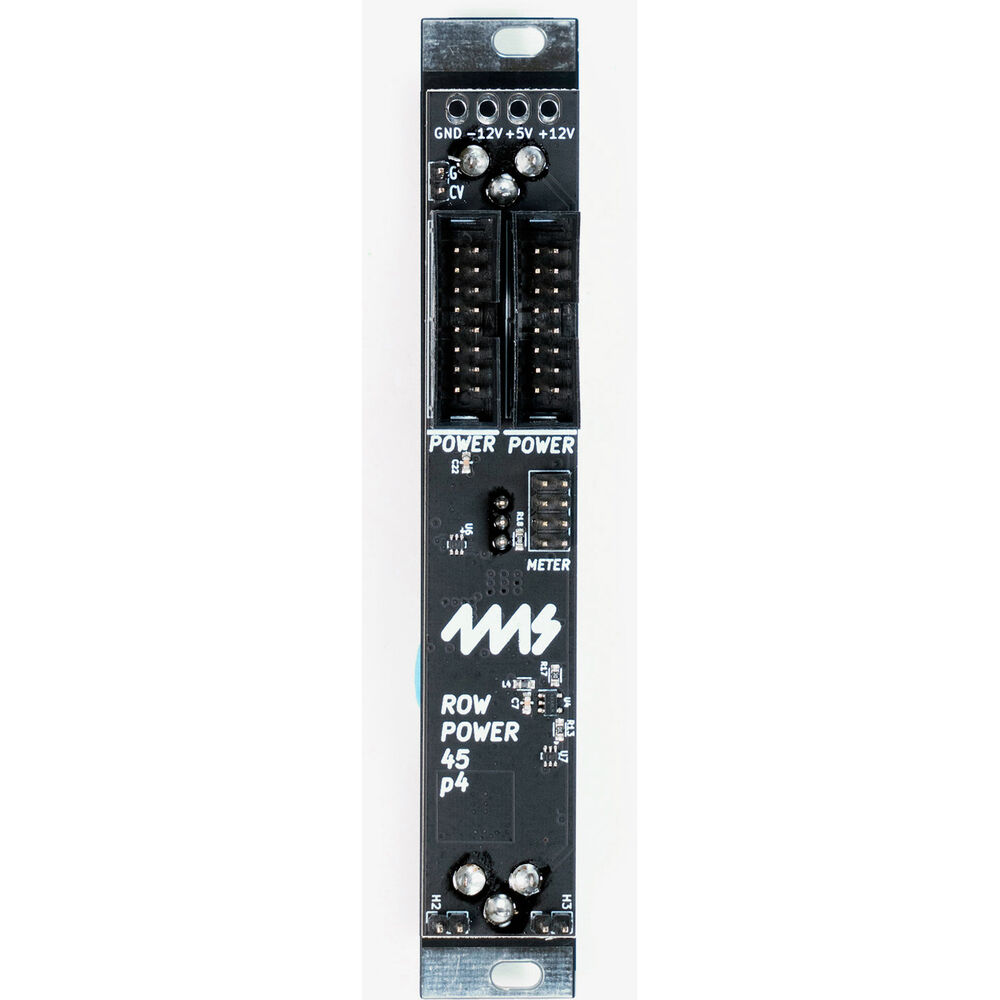

- Solder holes for DIY/custom power distribution boards: fits MTA156 headers or 14 AWG wire
- Compatible with 4ms Power Watcher BT, which connects to header on back of RP45
- 15 to 20 VDC power brick or barrel jumper cable to daisy-chain from a powered Pod or Row Power
- Flying-bus cables, Bus Stick, or other distribution system (for connecting Row Power 45 to multiple modules)
In the Box
- 4ms Row Power 45 Power Supply Eurorack Module (4 HP, Black)
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
4ms RP45 Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Horizontal Pitch |
4 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
Yes
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
No
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
AC/DC Power Adapter (Not Included)
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| AC/DC Power Adapter |
20 VDC (Not Included)
|
| Color |
Black
|
| Horizontal Pitch |
4 HP
|
| Included Accessories |
No
|
| Package Weight |
0.18 lb
|
| Box Dimensions (LxWxH) |
5.6 x 3.35 x 2.15"
|
