Description
4ms RCD Overview
- 1Description
- 2At a Glance
- 3Jacks
- 4Eurorack Ready
4ms Rotating Clock Divider - CV Rotate Demo
4ms Rotating Clock Divider - AUTORESET
4ms Rotating Clock Divider - Reset Demo
Get creative with tempos using the 4ms Rotating Clock Divider, a Eurorack module that produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64 and include all odd and nonstandard divisions such as /3 and /17 and /62.
The Rotate CV input reassigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock. The RCD ships with a ribbon power cable and mounting screws.
At a Glance
- Divide-by-1 to Divide-by-64, on 8 output jacks
- CV Rotate jack to shift divide-by amount on each jack
- CV Reset jack to reset/resync all jacks
- Optional break-out panels to expand functionality (Auto-Reset, selectable Divide-By Range, Gate/Trigger, Up/Down-Counting)

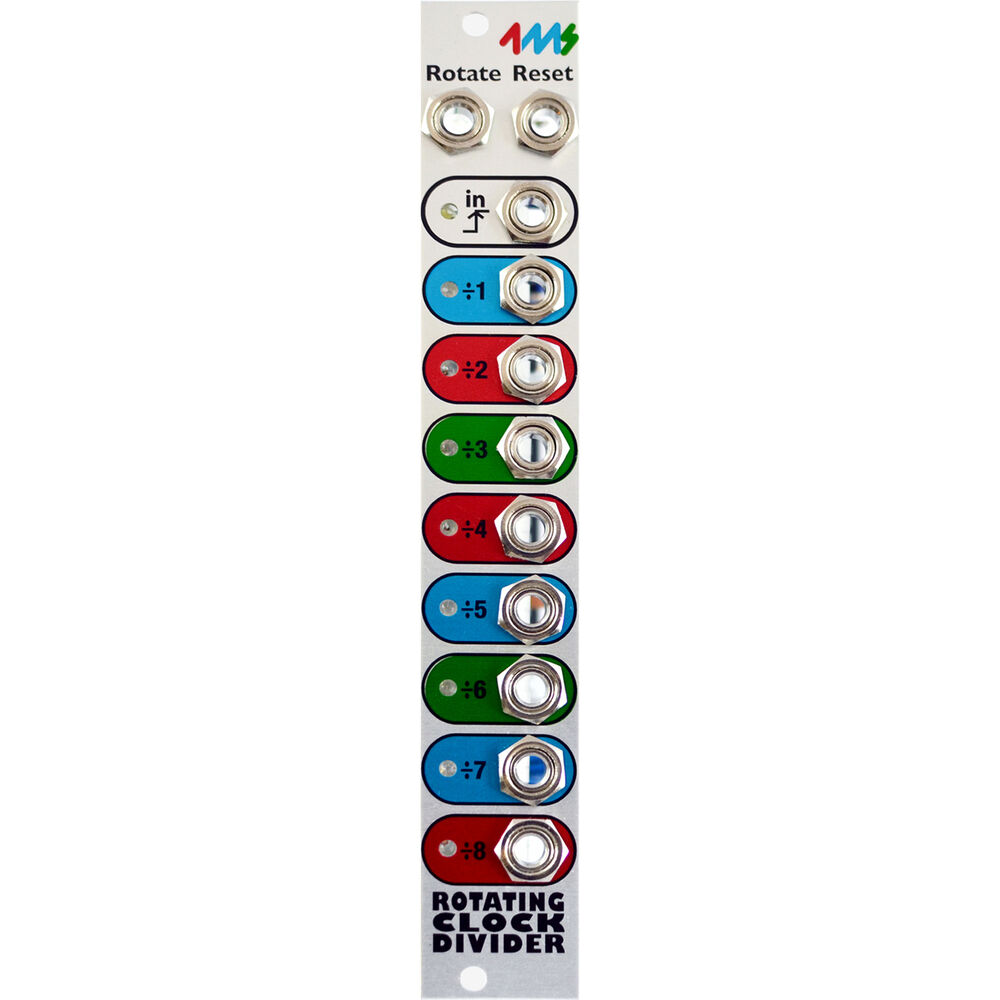

Jacks
- Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
- CV Rotate (0V to +5V input)
- CV Reset (5V to 15V trigger)
- Divided Clock Outputs (8 jacks with R as the CV Rotation):
- Divide-by-(1+R)
- Divide-by-(2+R)
- Divide-by-(3+R)
- Divide-by-(4+R)
- Divide-by-(5+R)
- Divide-by-(6+R)
- Divide-by-(7+R)
- Divide-by-(8+R)
- Selectable Gate/Trigger mode

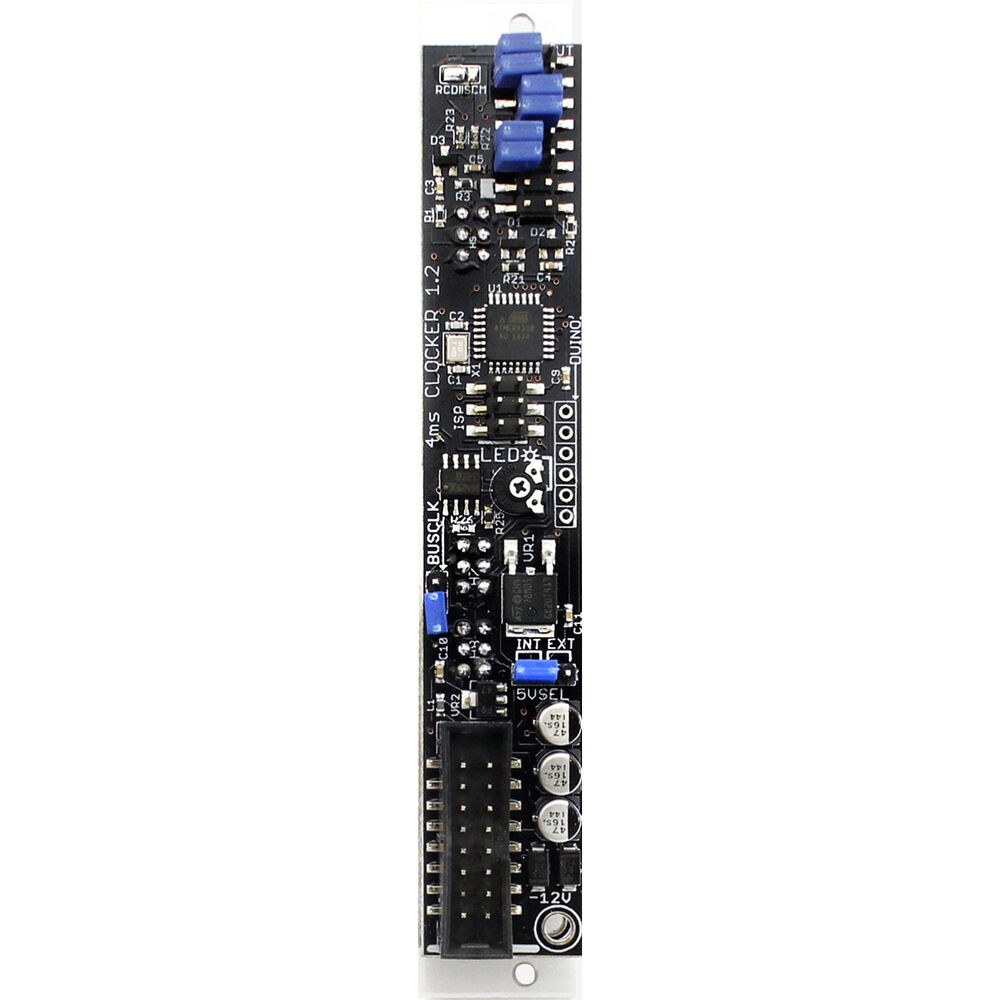

- Selectable Divide range up to Divide-by-64�Two jumper pins on the back can be preset with jumpers plugs or used with breakout panel.
- Selectable Auto-reset�Reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more danceable even when using the more uncommon clock divisions (3/5/6/7/9/10/11/etc.).
Eurorack Ready
- 4 HP Eurorack format module
- Maximum Depth: 1.39" (35mm)
- Includes power ribbon cable with 16-pin Eurorack power header
- Power consumption: +12V: 33mA, -12V: 4mA
In the Box
- 4ms Rotating Clock Divider Eurorack Module (4 HP)
- Eurorack Ribbon Power Cable
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Table of Contents
- Description
- At a Glance
- Jacks
- Eurorack Ready
4ms RCD Specs
Key Specs
| Sound Generation |
Analog
|
| CV/Gate I/O |
2 x 1/8" / 3.5 mm TS CV Input
|
| Eurorack Current Consumption |
33 mA on +12 V Rail
4 mA on -12 V Rail |
| Horizontal Pitch |
4 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
Sounds
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
No
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2 x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
No
|
| Sync I/O |
1 x 1/8" / 3.5 mm TS Clock Input
8 x 1/8" / 3.5 mm TS Clock Output |
| Network I/O |
No
|
| USB |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Included Software |
No
|
| Mobile App Compatible |
No
*As of July, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
33 mA on +12 V Rail
4 mA on -12 V Rail |
Physical
| Color |
Silver
|
| Horizontal Pitch |
4 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.24 lb
|
| Box Dimensions (LxWxH) |
5.6 x 3.2 x 2.1"
|
