Description

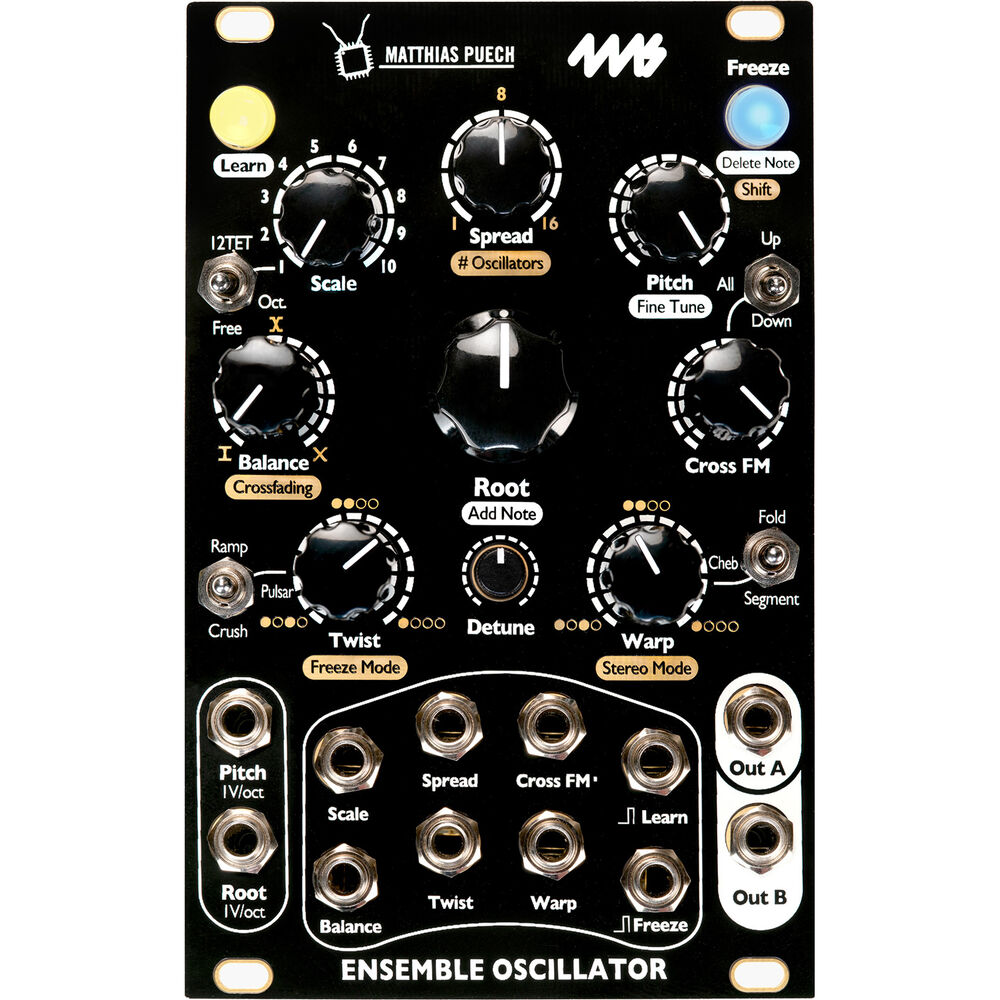

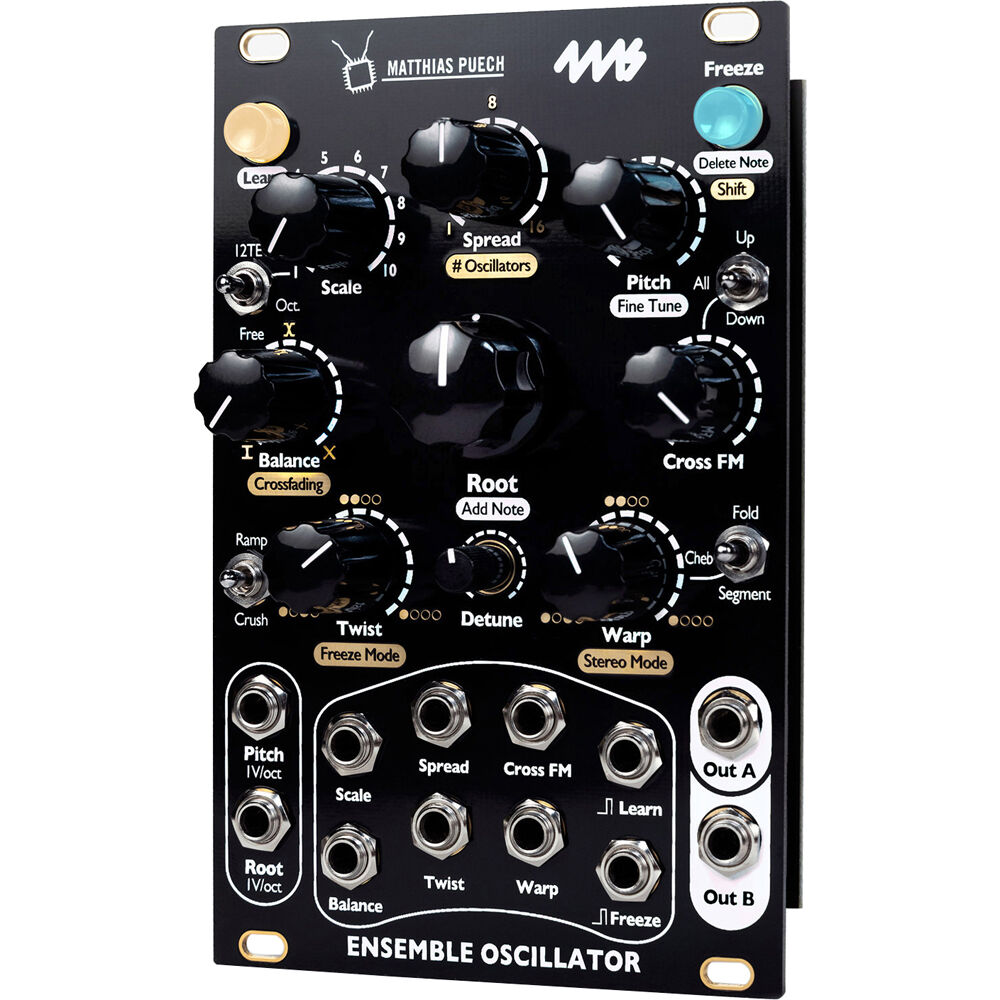

4ms Ensemble Overview
Generate unbelievable sounds with the 4ms Ensemble Oscillator, a complex Eurorack oscillator designed in cooperation with Mathias Puech and features a unified polyphonic voice of 16 oscillators combining additive, FM, phase distortion, and wavefolding synthesis in new and unprecedented ways.
The Ensemble Oscillator can quantize the oscillators to a scale or series of harmonics, allowing you to explore the sonic boundary between music chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sinewaves, to pulsar synthesis, pristine harmonic tones, and lush wide chords, to rich dirty drones and rumbling glitches. Custom scales can quickly be learned and saved using a CV keyboard or by manually entering notes with the controls. The Ensemble Oscillator ships with a ribbon power cable and mounting screws.
- 16 sine-based oscillators bound to intervals of a selected Scale
- 30 factory-programmed, user-writeable scales organized in three groups:
- 12TET: all notes quantized to equal temperament
- Octave: unquantized notes, repeating over octaves
- Free: unquantized notes, repeating over the interval between the lowest and highest note
- A simple method to program (learn) your own scales manually or with a CV/Gate keyboard
- Three Twist phase-distortion effects
- Three Warp wave-distortion effects
- Three algorithms of Cross FM for modulating the oscillators with each other
- Mono or stereo output with selectable panning algorithm
- Freeze button and jack to freeze the frequency of some of the oscillators, with selectable algorithm
- Two 1V/oct inputs: Pitch (unquantized), and Root (quantized)
- High-accuracy, temperature-stable, eight-octave range (-2V to +6V), can be calibrated to any keyboard
- Six bipolar CV inputs (-5V to +5V)
- Two gate inputs for automated Learning and Freezing
- 16 HP Eurorack format module
- Maximum Depth: 0.98" (25mm)
- Includes power ribbon cable with 10- to 16-pin Eurorack power headers
- Power consumption: +12V: 114mA, -12V: 45mA
In the Box
- 4ms Ensemble Oscillator Eurorack Module (Black, 16 HP)
- Eurorack Ribbon Power Cable
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
4ms Ensemble Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Pitch CV Input
6x 1/8" / 3.5 mm TS CV Input 2x 1/8" / 3.5 mm TS Gate/Trigger Input |
| Patch Points |
10x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Eurorack Current Consumption |
114 mA on +12 V Rail
45 mA on -12 V Rail |
| Horizontal Pitch |
16 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Built-In Speaker |
No
|
| Oscillators |
16x Variable (Sine)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Pitch CV Input
6x 1/8" / 3.5 mm TS CV Input 2x 1/8" / 3.5 mm TS Gate/Trigger Input |
| Control Voltage Level |
VCO CV In: -2 to +6 V
CV In: ±5 V Gate/Trigger In: 2.5 V |
| Patch Points |
10x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
No
|
| Frequency Response |
0 Hz to 20 kHz
|
| Maximum Output Level |
18.5 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
114 mA on +12 V Rail
45 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
16 HP
|
| Included Accessories |
No
|
| Package Weight |
0.575 lb
|
| Box Dimensions (LxWxH) |
5.5 x 4.7 x 3.1"
|
