| ₹ 2507.64 includes GST and import duties. | |
| B2B customers can avail ₹ 382.42 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

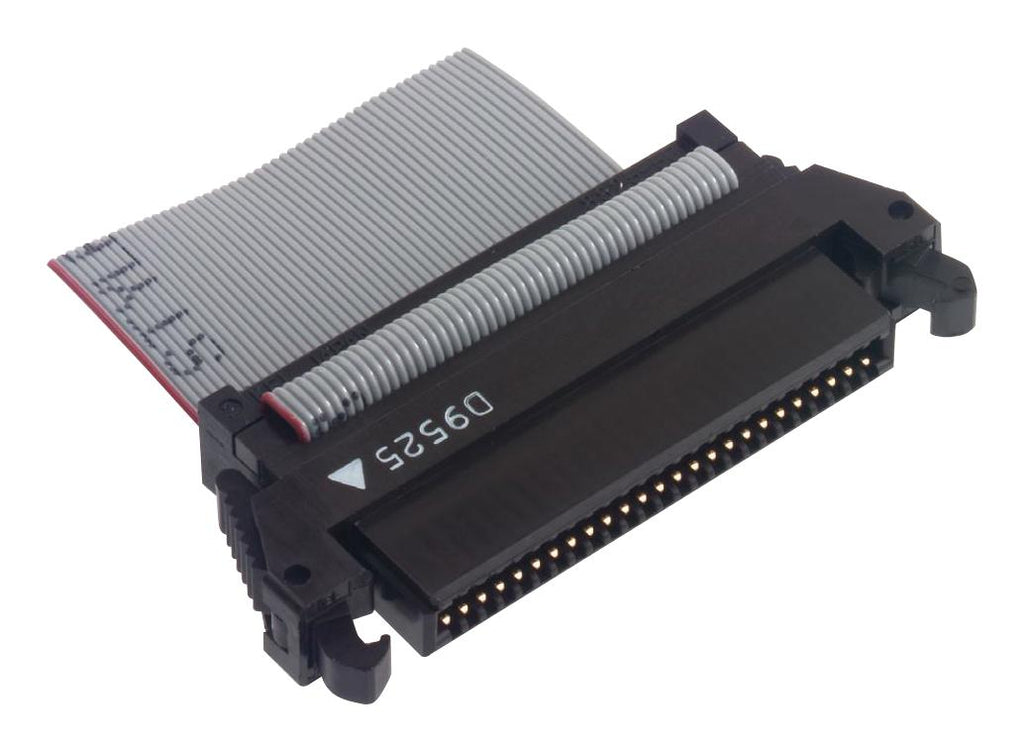

The P25E series 0.05-inch wire-mount Socket designed to mate with P50 series IDC board-mount connectors. The connector terminates 30AWG stranded 0.635mm pitch flat PVC cable (3754 series). It has phosphor bronze contact and glass-filled nylon insulator.
- Daisy chain capability
- Latch/eject mechanism maintains a secure connection
- Cable strain relief standard
- No strain relief optional
- Finished cable assemblies to customer specifications available
- Tooling available for customer cable assembly termination
- 0.5A Current rating
- >1 x 10�R at 250VDC Insulation resistance
- -55 to 85°C Temperature range
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| IDC Connector Type: IDC Receptacle |
| Contact Gender: Female |
| Pitch Spacing: 1.27mm |
| No. of Rows: 2 Row |
| No. of Contacts: 40Contacts |
| Connector Mounting: Cable Mount |
| Contact Material: Phosphor Bronze |
| Contact Plating: Gold Plated Contacts |
| Product Range: P25E Series |
Other details
| Brand | 3M |
| Part Number | P25E-040S-EA |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2457.49 |
| 3-5 | ₹ 2432.41 |
| 5-10 | ₹ 2382.26 |
| 10+ | ₹ 2332.11 |
Bulk discount will be automatically applied during checkout based on quantity.
