Description

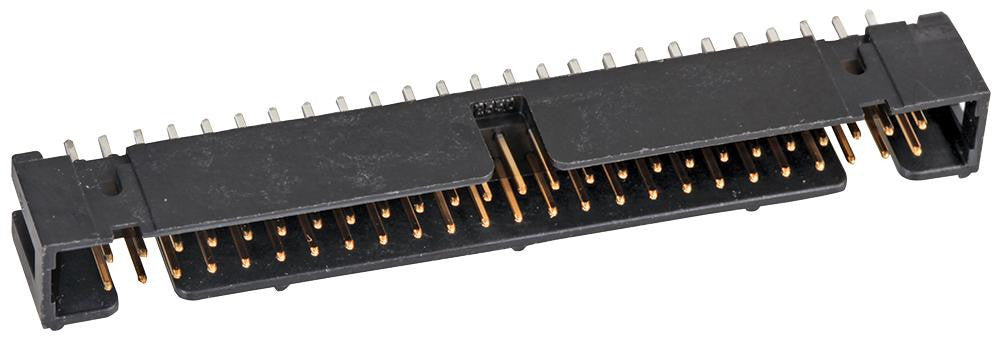

The N2550-6002RB is a 50-way 0.100 x 0.100-inch 4-wall Straight Header for 0.062-inch thick board tail, with gold-plated copper alloy contacts and through hole termination. This 2500 series low profile header is a glass filled polyester (PCT) insulated, center slot polarization prevents mis-insertions and reduces insertion time, suitable for reflow soldering using paste in hole techniques.
- Black colour
- Space saving design
- UL94V-0 Flammability rating
- 2A Current rating
- >1 x 10?R at 500VDC Insulation resistance
- -55 to 105°C Temperature rating
Applications
Industrial
Product details
| No. of Contacts | 50Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | 2500 Series |
| Contact Material | Copper Alloy |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | 3M |
| Part Number | N2550-6002RB |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
