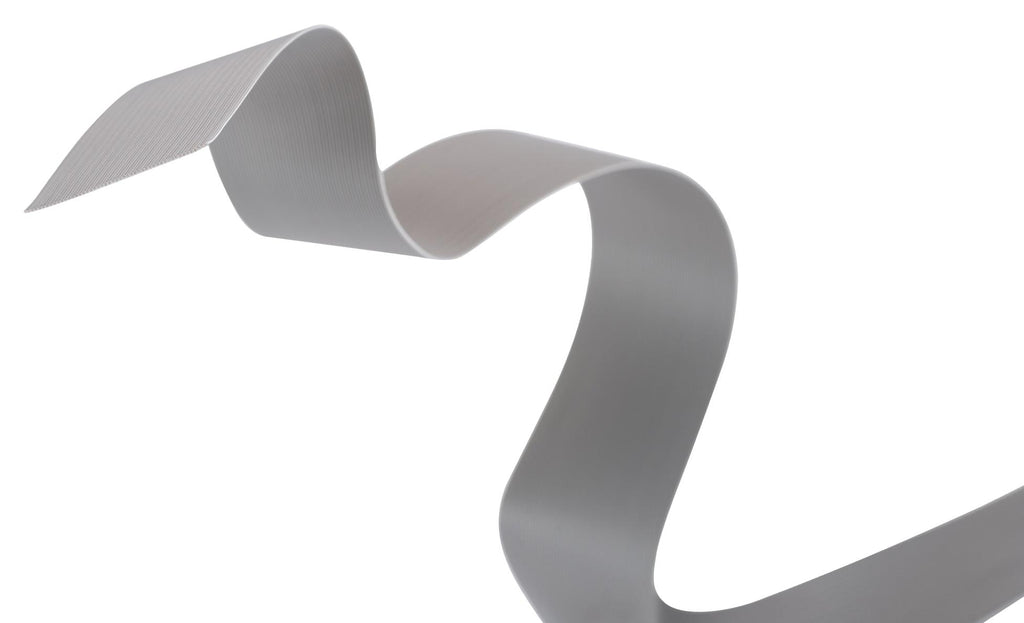

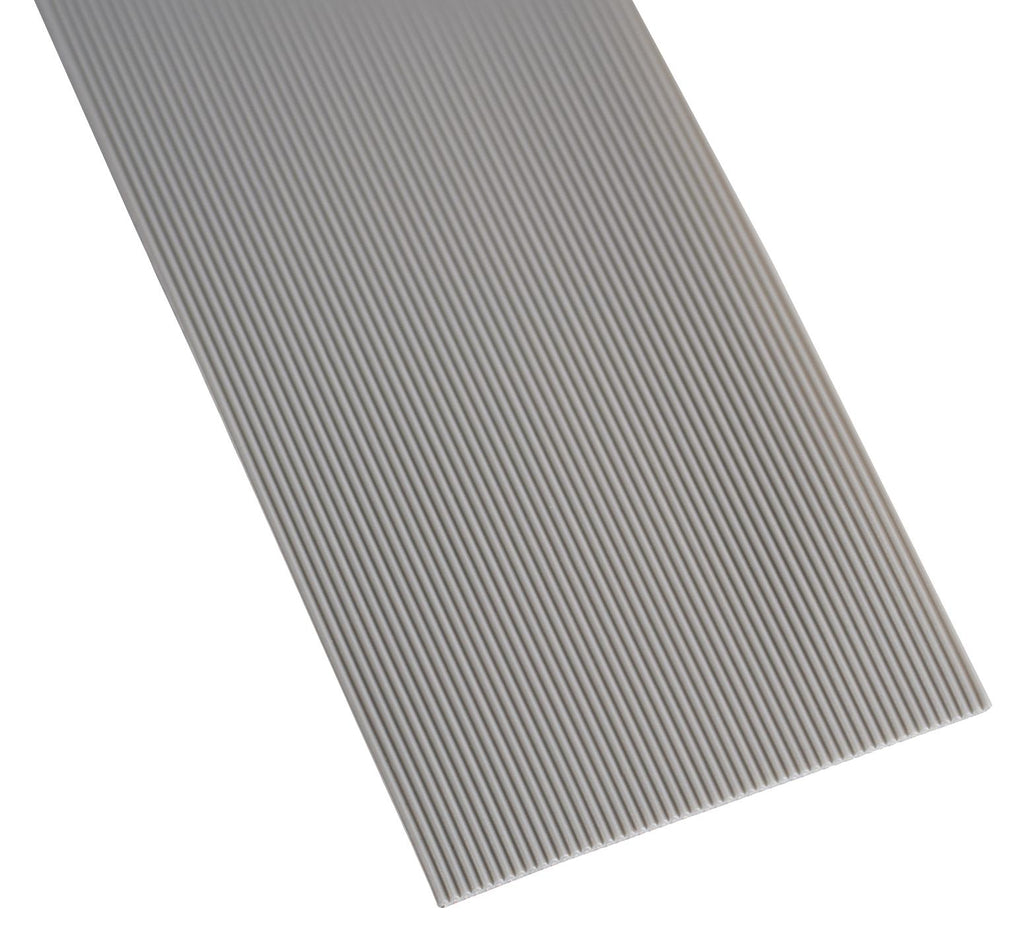

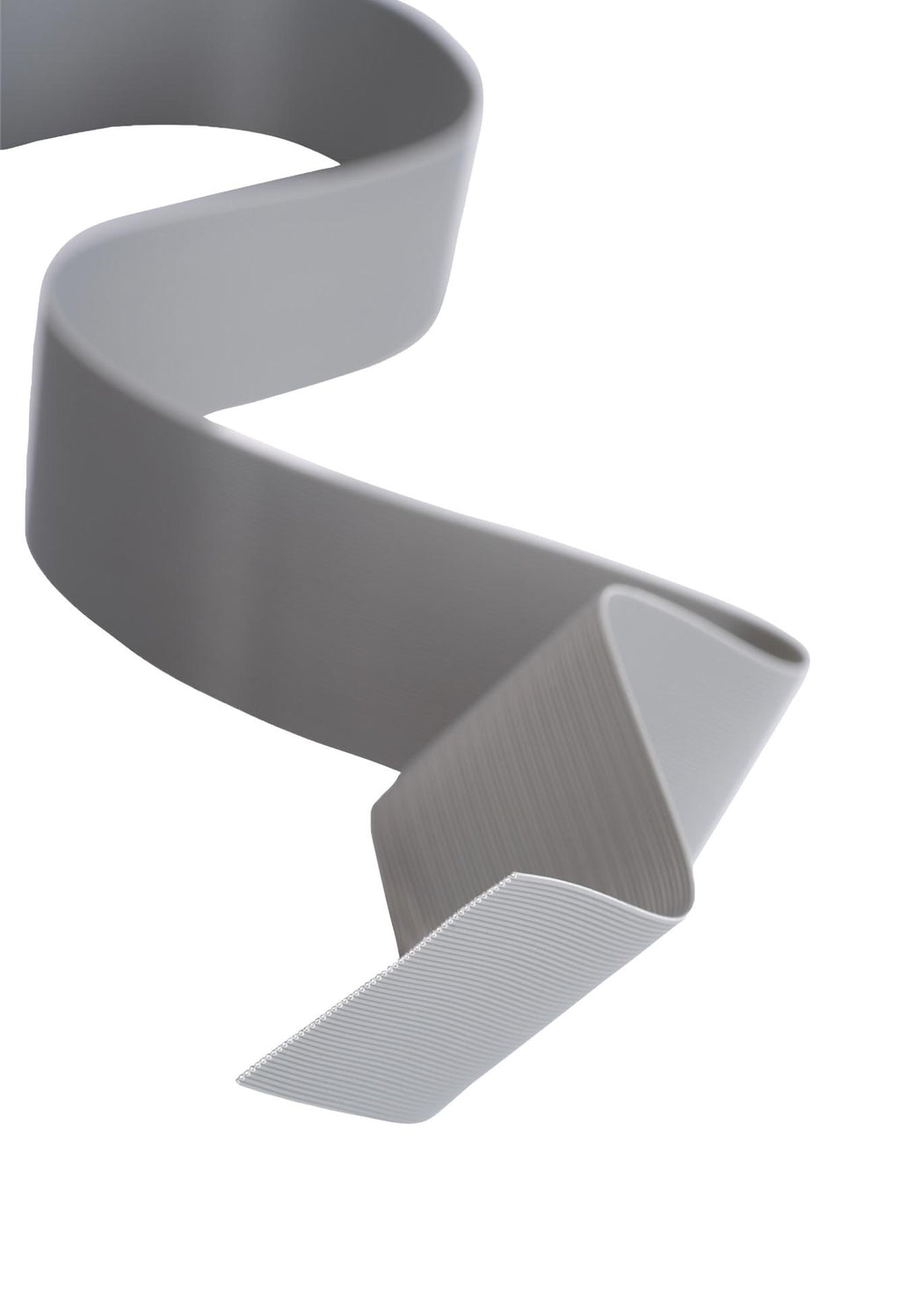

The HF447/40 SF from 3M is a HF447 series round conductor flat Low Smoke Halogen-Free (LSHF) ribbon cable. It has 30AWG solid conductors on 0.025inch (0.635mm) wire spacing, designed for mass termination and increased signal density. This LSHF polyolefin blend insulation features low smoke (IEC 61034-2:2005) and low toxicity of combustion gases (NF X 70-100-2:2006) reducing the risk to fire-fighters and low corrosivity of combustion gases (pH is approximately 6.0) reducing damage to nearby equipment.
- Number of conductors is 40, splice free
- 30AWG tinned solid copper conductor
- Underwriters Laboratories (UL) certified
- Broad operating temperature range from -40?C to 90?C
- Zippable for branching or discrete termination
- Voltage rating is 150V (USA), 150V(Canadian), <50V(EU)
- Dark grey colour LSHF insulation
- 300ft length ribbon cable
Applications
Industrial
Product details
| Cable Shielding |
Unscreened |
| No. of Cores |
40Core |
| Wire Gauge |
30AWG |
| Conductor Area CSA |
- |
| Reel Length (Imperial) |
300ft |
| Reel Length (Metric) |
91m |
| Jacket Colour |
Grey |
| Cable Width |
25.4mm |
| No. of Max Strands x Strand Size |
Solid |
| Pitch Spacing |
0.64mm |
| Voltage Rating |
150V |
| Conductor Material |
Tinned Copper |
| Jacket Material |
Polyolefin, Zero Halogen |
| Ribbon Cable Type |
Flat Ribbon Cable |
| Product Range |
HF447 Series |
Other details
| Brand |
3M |
| Part Number |
HF447/40 SF |
| Quantity |
Reel of 91 |
| Drawing EN |
 |
