Description

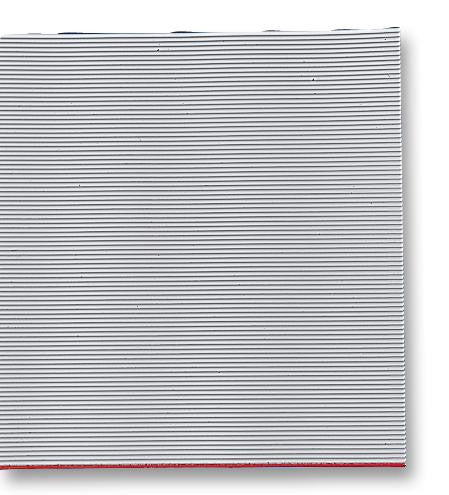

The 3849-96 is a 100ft 96-conductor Flat Ribbon Cable, 30AWG stranded wire on 0.033-inch centers permits termination to all three rows in DIN connectors. The 3849 series round conductor flat cable is made of tinned copper conductor, grey PVC jacket.
- Stranded wire provides flexibility and extended product life
- Zippable for branching or discrete termination
- 89R Unbalanced, 144R balanced characteristic impedance
- VW-1 Flammability rating
Applications
Industrial
Product details
| No. of Cores | 96Core |
| Reel Length (Metric) | - |
| Conductor Material | Tinned Copper |
| Pitch Spacing | 0.85mm |
| Jacket Material | PVC |
| Voltage Rating | 300V |
| Cable Width | 81.2mm |
| Reel Length (Imperial) | - |
| Product Range | 3849 Series |
| Wire Gauge | 30AWG |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 38AWG |
| Conductor Area CSA | - |
| Ribbon Cable Type | Flat Ribbon Cable |
Other details
| Brand | 3M |
| Part Number | 3849-96 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
