| ₹ 29096.78 includes GST and import duties. | |
| B2B customers can avail ₹ 4437.26 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

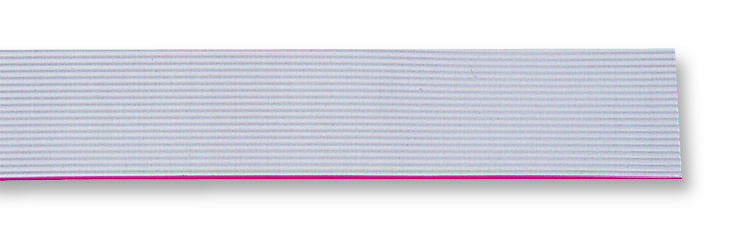

The 3365 series from 3M are round conductor flat cable. The ribbon cable has 28AWG wire size on 0.050inch spacing that permits mass termination to a broad line of IDC connectors. The stranded wire provides flexibility and extended product life.
- Zippable for branching or discrete termination
- Available in gray or black colour
- Polyvinyl Chloride (PVC) insulation material
- Tinned stranded copper conductor
- Voltage rating of 300V
- Operating temperature range -20�C to +105�C
- 6 to 64 conductors based on ordering
- First conductor is identified by a red marking on one edge of cable
- UL recognised (Style 2651) in VW-1 flame retardant
Applications
Industrial, Power Management
Product details
| No. of Cores | 34Core |
| Reel Length (Metric) | 30.5m |
| Conductor Material | Tinned Copper |
| Pitch Spacing | 1.27mm |
| Jacket Material | PVC |
| Voltage Rating | 300V |
| Cable Width | 43.18mm |
| Reel Length (Imperial) | 100ft |
| Product Range | 3365 Series |
| Wire Gauge | 28AWG |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 36AWG |
| Conductor Area CSA | 0.072mm� |
| Ribbon Cable Type | Flat Ribbon Cable |
Other details
| Brand | 3M |
| Part Number | 3365-34 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 28514.84 |
| 3-5 | ₹ 28223.88 |
| 5-10 | ₹ 27641.94 |
| 10+ | ₹ 27060.01 |
Bulk discount will be automatically applied during checkout based on quantity.
