Description

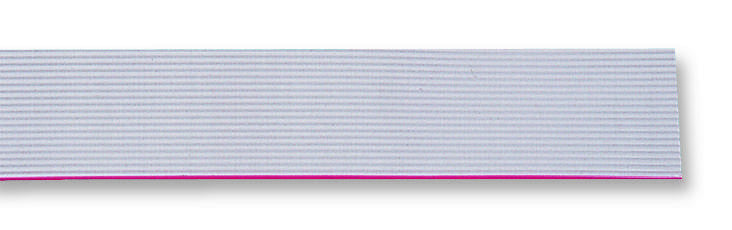

The 3365 series from 3M are round conductor flat cable. The ribbon cable has 28AWG wire size on 0.050inch spacing that permits mass termination to a broad line of IDC connectors. The stranded wire provides flexibility and extended product life.
- Zippable for branching or discrete termination
- Available in gray or black colour
- Polyvinyl Chloride (PVC) insulation material
- Tinned stranded copper conductor
- Voltage rating of 300V
- Operating temperature range -20°C to +105°C
- 6 to 64 conductors based on ordering
- First conductor is identified by a red marking on one edge of cable
- UL recognised (Style 2651) in VW-1 flame retardant
Applications
Industrial, Power Management
Product details
| No. of Cores | 20Core |
| Reel Length (Metric) | 30.5m |
| Conductor Material | Tinned Copper |
| Pitch Spacing | 1.27mm |
| Jacket Material | PVC |
| Voltage Rating | 300V |
| Cable Width | 25.4mm |
| Reel Length (Imperial) | 100ft |
| Product Range | 3365 Series |
| Wire Gauge | 28AWG |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 36AWG |
| Conductor Area CSA | 0.072mm² |
| Ribbon Cable Type | Flat Ribbon Cable |
Other details
| Brand | 3M |
| Part Number | 3365-20 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
