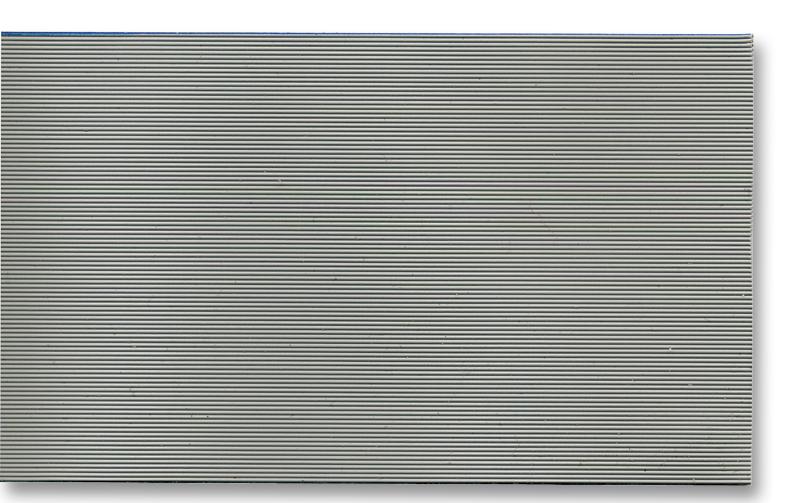

The 3355 series unshielded round conductor Flat Cable with tinned stranded copper conductor and a grey thermoplastic elastomer (TPE) insulator. The 28AWG wire on 0.05-inch centres permits mass termination to a broad line of IDC connectors.
- CPR: Not Yet Qualified
- TPE insulation provides excellent transmission properties
- Zippable for branching or discrete termination
- 117R Impedance
- 11.7pF/ft Capacitance
- 0.16?H/ft Inductance
- 74% Velocity of propagation
Applications
Computers & Computer Peripherals
Product details
| Cable Shielding |
Unscreened |
| No. of Cores |
10Core |
| Wire Gauge |
28AWG |
| Conductor Area CSA |
- |
| Reel Length (Imperial) |
- |
| Reel Length (Metric) |
- |
| Jacket Colour |
Grey |
| Cable Width |
12.7mm |
| No. of Max Strands x Strand Size |
7 x 36AWG |
| Pitch Spacing |
1.27mm |
| Voltage Rating |
300V |
| Conductor Material |
Tinned Copper |
| Jacket Material |
TPE |
| Ribbon Cable Type |
Flat Ribbon Cable |
| Product Range |
3355 Series |
Other details
| Brand |
3M |
| Part Number |
3355/10 |
| Quantity |
1 Metre |
| Technical Data Sheet EN |
 |
