Description

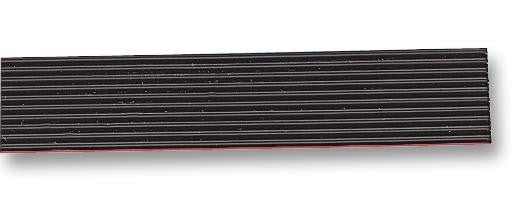

The 3319-10 is a 10-conductor black High Flex Flat Ribbon Cable, 28AWG wire on 0.050-inch centers permits mass termination to a broad line of IDC connectors. The 3319 series flat cable is made of round silver plated copper conductor, PVC jacket.
- 19 Strands of high strength Cu alloy provide longest flex life available for dynamic applications
- Zippable for branching or discrete termination
- Flex life of 100 million cycles at 1-3/4" diameter
- 103R Unbalanced, 171R balanced characteristic impedance
- VW-1 Flammability rating
Applications
Industrial
Product details
| No. of Cores | 10Core |
| Reel Length (Metric) | - |
| Conductor Material | Silver Plated Copper |
| Pitch Spacing | 1.27mm |
| Jacket Material | PVC |
| Voltage Rating | 300V |
| Cable Width | 12.7mm |
| Reel Length (Imperial) | - |
| Product Range | 3319 Series |
| Wire Gauge | 28AWG |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 19 x 40AWG |
| Conductor Area CSA | 0.093mm� |
| Ribbon Cable Type | Flat Ribbon Cable |
Other details
| Brand | 3M |
| Part Number | 3319-10 |
| Quantity | 1 Metre |
| Technical Data Sheet EN |  |
