| ₹ 2947.01 includes GST and import duties. | |
| B2B customers can avail ₹ 449.42 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

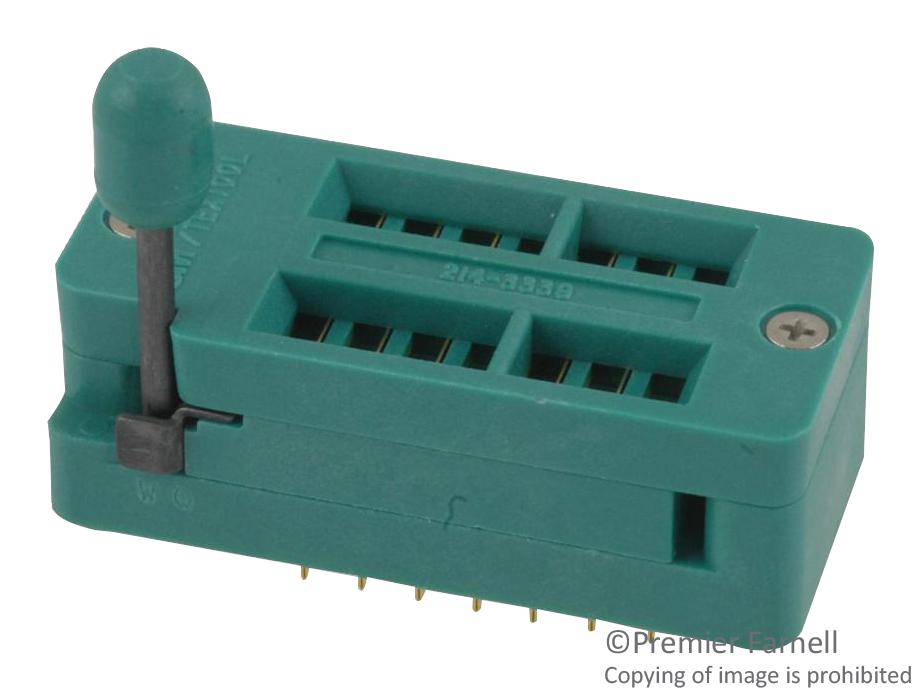

The 214-3339-00-0602J is a 0.1-inch 14-lead green ZIP DIP Socket made of glass-filled polysulfone. It is easily disassembles for repair-ability and has contact point of 0.11-inch below top surface of socket.
- 1A Current rating
- >1 x 10�R at 500VDC Insulation resistance
- UL94V-0 Flammability rating
- -55 to 150°C Operating temperature range
- 0.3" Distance between rows
Applications
Industrial
Product details
| No. of Contacts: 14Contacts |
| Connector Type: DIP Socket |
| Pitch Spacing: 2.54mm |
| Product Range: Text Tool |
| Row Pitch: 7.62mm |
| Contact Material: Beryllium Copper |
| Contact Plating: Gold Plated Contacts |
Other details
| Brand | 3M |
| Part Number | 214-3339-00-0602J |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2888.07 |
| 3-5 | ₹ 2858.6 |
| 5-10 | ₹ 2799.66 |
| 10+ | ₹ 2740.72 |
Bulk discount will be automatically applied during checkout based on quantity.
