Description
3DMakerPro Toucan Standard Overview

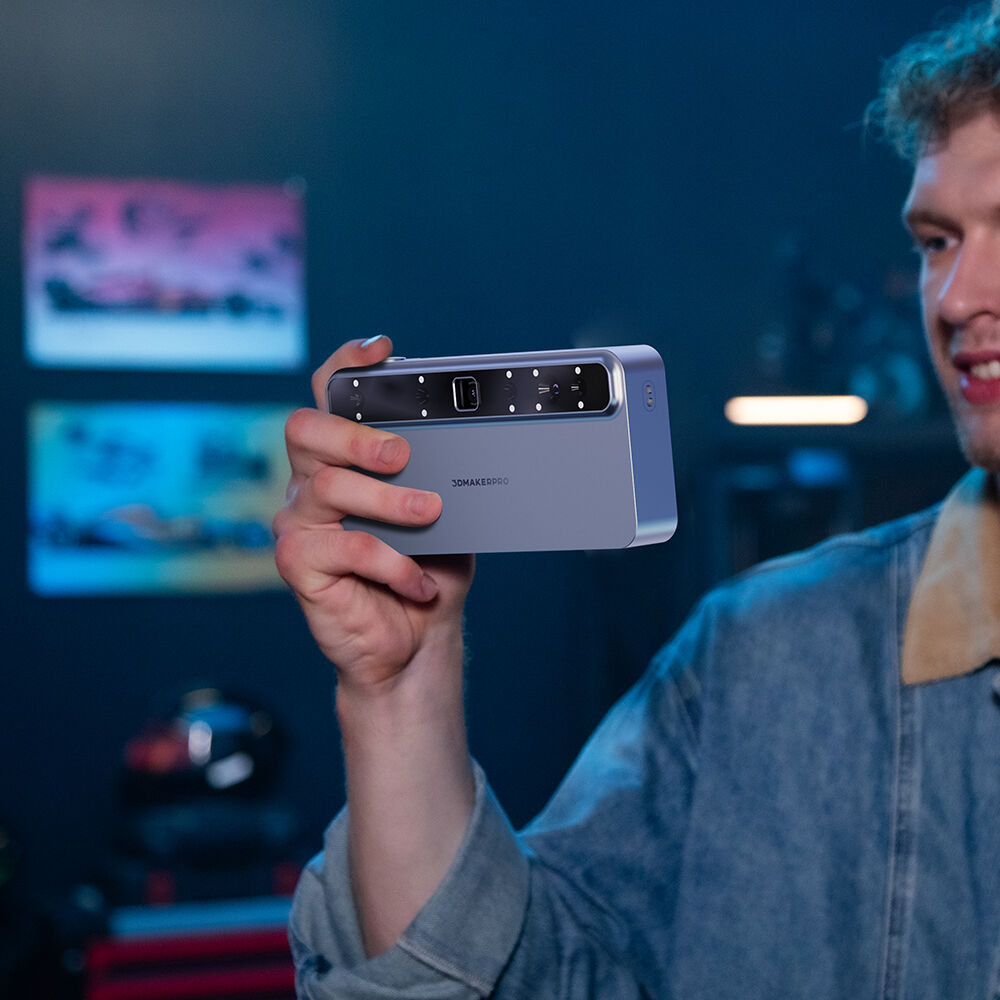

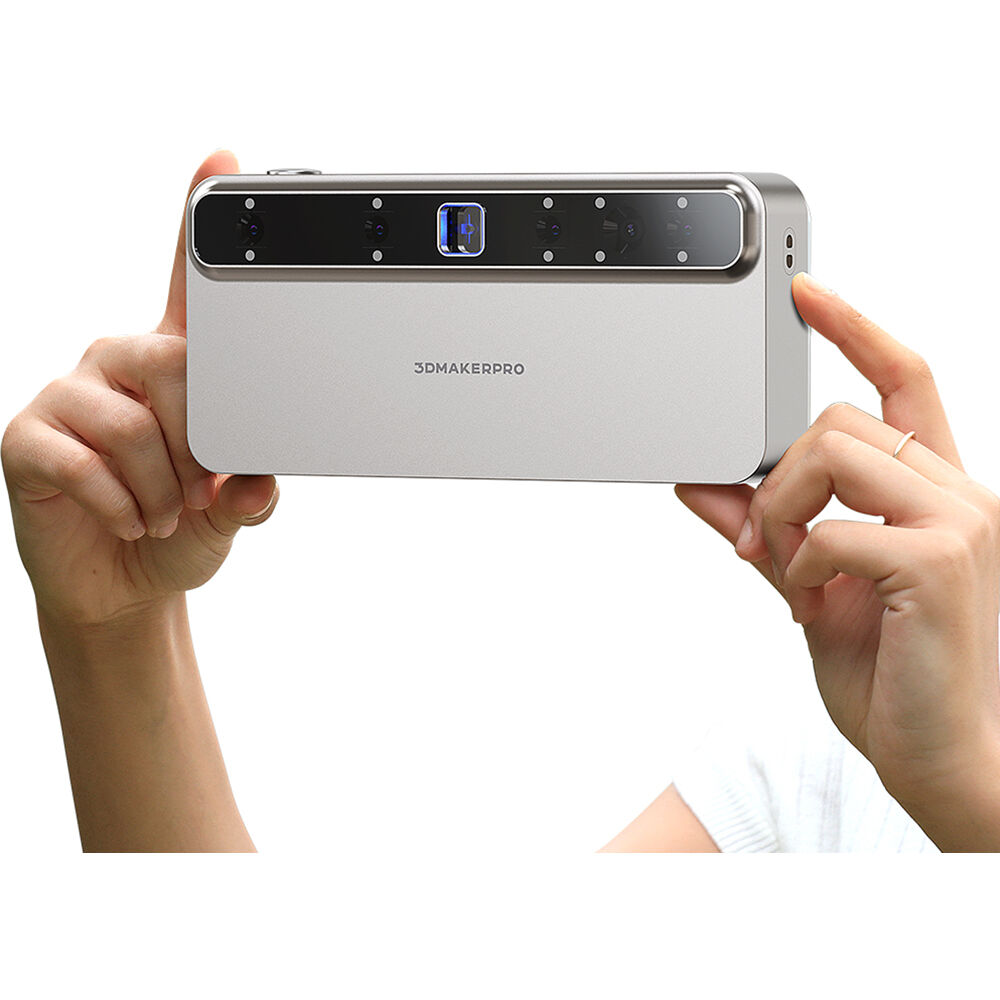

Scan objects large and small in fine detail with the Toucan Standard 3D Scanner from 3DMAKERPRO. Using blue laser structured light, this all-in-one scanner is capable of speeds up to 15 fps and sports a 9-axis IMU sensor. It features an accuracy and resolution of 0.03mm and can scan objects up to 157.5". Along with a full-color 48MP RGB camera, two small-format and two large-format 3D cameras sit along the top of the scanner. This dual scan camera system allows anything from small machine components to substantial objects like cars to be scanned.
To make the most of its capabilities, the scanner is built with capable internal components. Inside, an 8-core 2.4 GHz CPU and Mali-G52 GPU, along with 32GB of DDR4 RAM, allow for onboard processing. It has 256GB of internal storage, Wi-Fi and Bluetooth capabilities, and a 6600mAh battery that offers up to two hours of battery life. An AMOLED screen makes navigating and evaluating scans a joy.

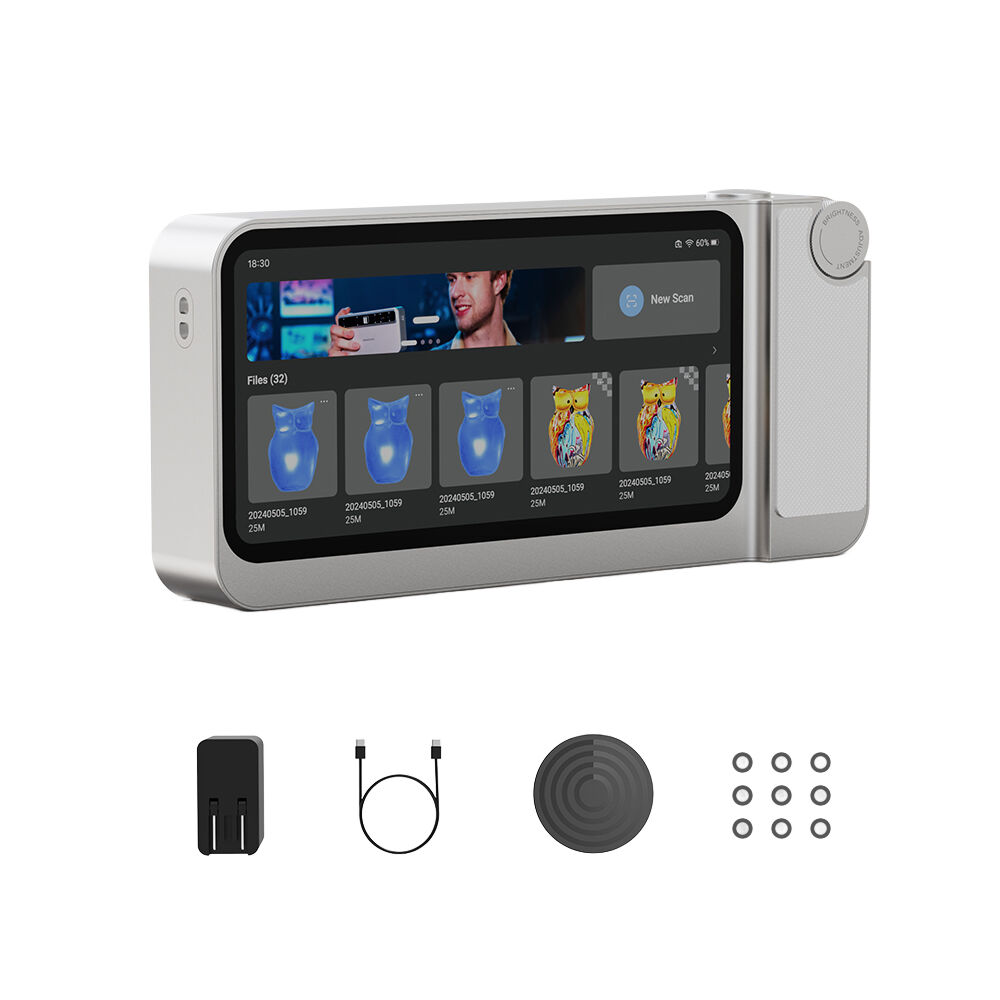

- 3DMakerPro Toucan Standard 3D Scanner
- Power Adapter
- USB-C Cable

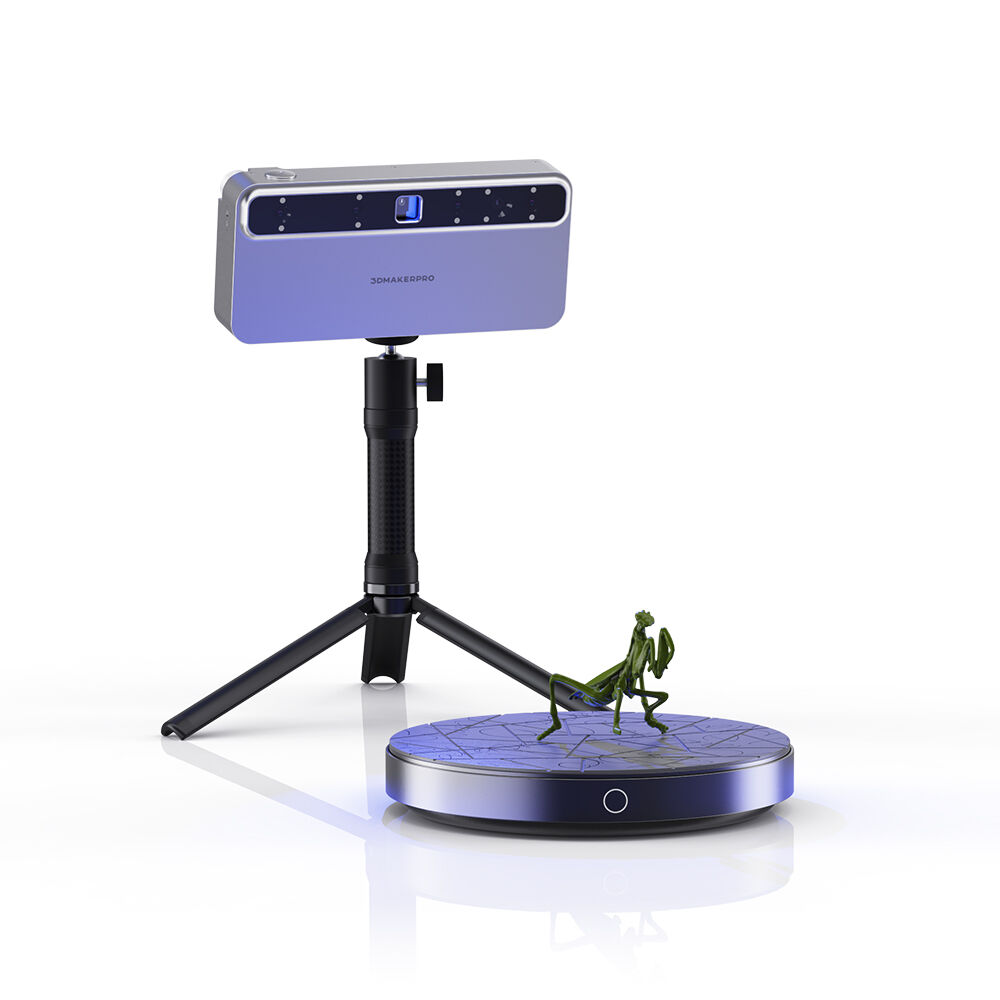

- Manual Turntable
- Calibration Board
- Silicone Case
- Lanyard
- Limited 2-Year Manufacturer Warranty
No additional resources available
3DMakerPro Toucan Standard Specs
| Scan Speed |
15 fps
|
| Scan |
Volume:
Minimum: 0.6 x 0.6 x 0.6" / 15 x 15 x 15 mm Maximum: 157.5 x 157.5 x 157.5" / 4000 x 4000 x 4000 mm |
| Accuracy |
0.03 mm
|
| Working Distance |
7.9 to 39.4" / 200 to 1000 mm
|
| File Formats |
ASC, OBJ, PLY, STL
|
| Estimated Battery Life |
2 Hours
|
| Scan Speed |
15 fps
|
| Scan |
Volume:
Minimum: 0.6 x 0.6 x 0.6" / 15 x 15 x 15 mm Maximum: 157.5 x 157.5 x 157.5" / 4000 x 4000 x 4000 mm |
| Light Source |
Laser
|
| Accuracy |
0.03 mm
|
| Working Distance |
7.9 to 39.4" / 200 to 1000 mm
|
| Point Distance |
1.18 mil / 0.03 mm
|
| Image Resolution |
48 MP
|
| File Formats |
ASC, OBJ, PLY, STL
|
| System Connection |
USB-C (Version Unspecified)
|
| Display |
No
|
| CPU |
8-Core: Up to 2.4 GHz
|
| Memory |
32 GB DDR4
|
| Storage Drives |
256 GB eMMC
|
| Capacity |
6600 mAh
|
| Estimated Battery Life |
2 Hours
|
| Dimensions |
7.9 x 3.7 x 1.5" / 200 x 93 x 37.5 mm
|
| Weight |
1.6 lb / 735 g
|
| Package Weight |
4.63 lb
|
| Box Dimensions (LxWxH) |
12.4 x 8.9 x 3.7"
|
