Load Capacity: 88.2 lbHeight: 3.93"Weight: 12.91 ozArca-Type Compatible3 Legged Thing Bucky Professional Carbon Fibre Travel Tripod System with AirHed Vu

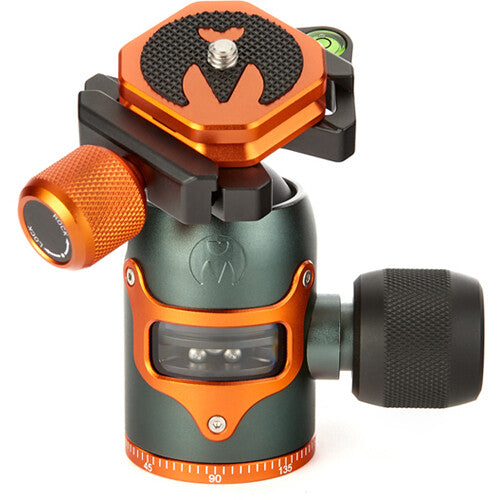

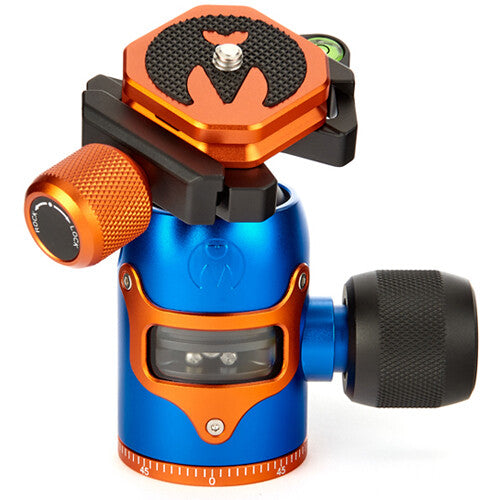

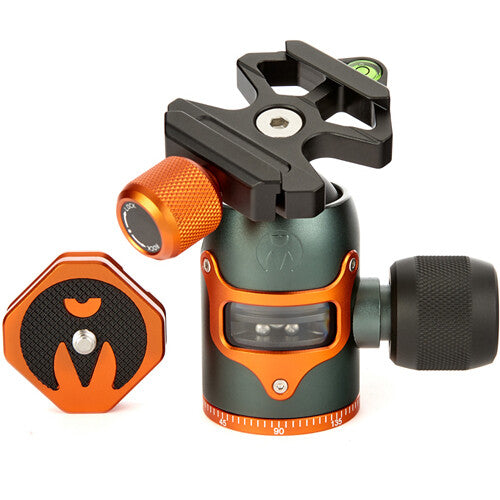

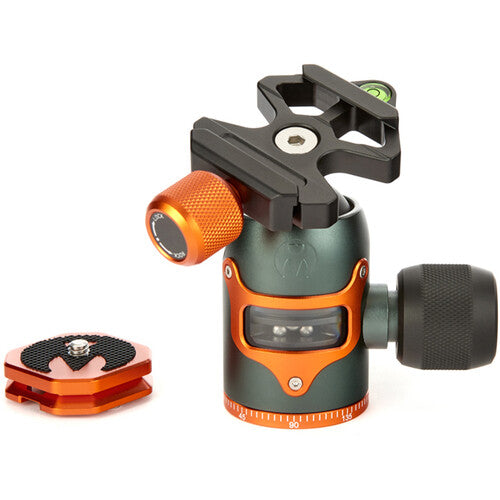

The AirHed Vu Ball Head from 3 Legged Thing is a ball head with a load capacity of 88.2 lb that can be attached to tripods or other support systems that feature a 3/8"-16 mount. The head's magnesium alloy casing features a unique vision panel that allows the inner mechanism to be seen. By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, and fully tilted to a vertical position or returned to its upright position. The base of the head incorporates an independent panning lock knob.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included Arca-type QR-OCTA Quick Release Plate, which includes dual safety screws along the underside to prevent it from accidentally sliding off the receiver clamp when it is opened. The quick release receiver features a colored, knurled tightening knob to quickly and securely clamp the quick release plate.
AirHed Vu Ball Head
- Arca-type ball head with 88.2 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control and is tiltable down to a 90° angle
- Casing features a unique vision panel that allows inner mechanism to be seen
- Large primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, and fully tilted
- Secondary locking knob with knurled surface allows head to rotate 360°
- Integrated clamp on top of on the ball-and-socket joint is compatible with included QR-OCTA Quick Release Plate
- Knurled quick release receiver plate knob
- Built-in bubble level
- Durable magnesium alloy construction
QR-OCTA Quick Release Plate
- Compatible with Arca-type quick release clamps
- 1/4"-20 mount
- Rubber traction pad
- Dual safety screws
- Durable, aluminum alloy construction
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Female |
| Quick Release Plate Type | Arca-Type |
| Load Capacity | 88.18 lb / 40 kg |
| Number of Bubble Levels | 1 |
| Friction Control | No |
| Independent Pan Lock | Yes |
| Material | Magnesium |
| Vertical Tilt | 90° |
| Panning Range | 360° |
| Ball Sphere Diameter | 1.18" / 30 mm |
| Base Diameter | 1.65" / 42 mm |
| Dimensions | H: 3.9" / H: 10.0 cm |
| Weight | 12.91 oz / 366 g |
| Package Weight | 1.275 lb |
| Box Dimensions (LxWxH) | 4.6 x 4.6 x 4.5" |
In the Box
- 3 Legged Thing AirHed Vu Ball Head (Gray)
- QR-OCTA Quick Release Plate
- 1/4"-20 Stagsden Camera Bolt
- Limited 5-Year Warranty
