3 Legged Thing AIRHED PRO Overview

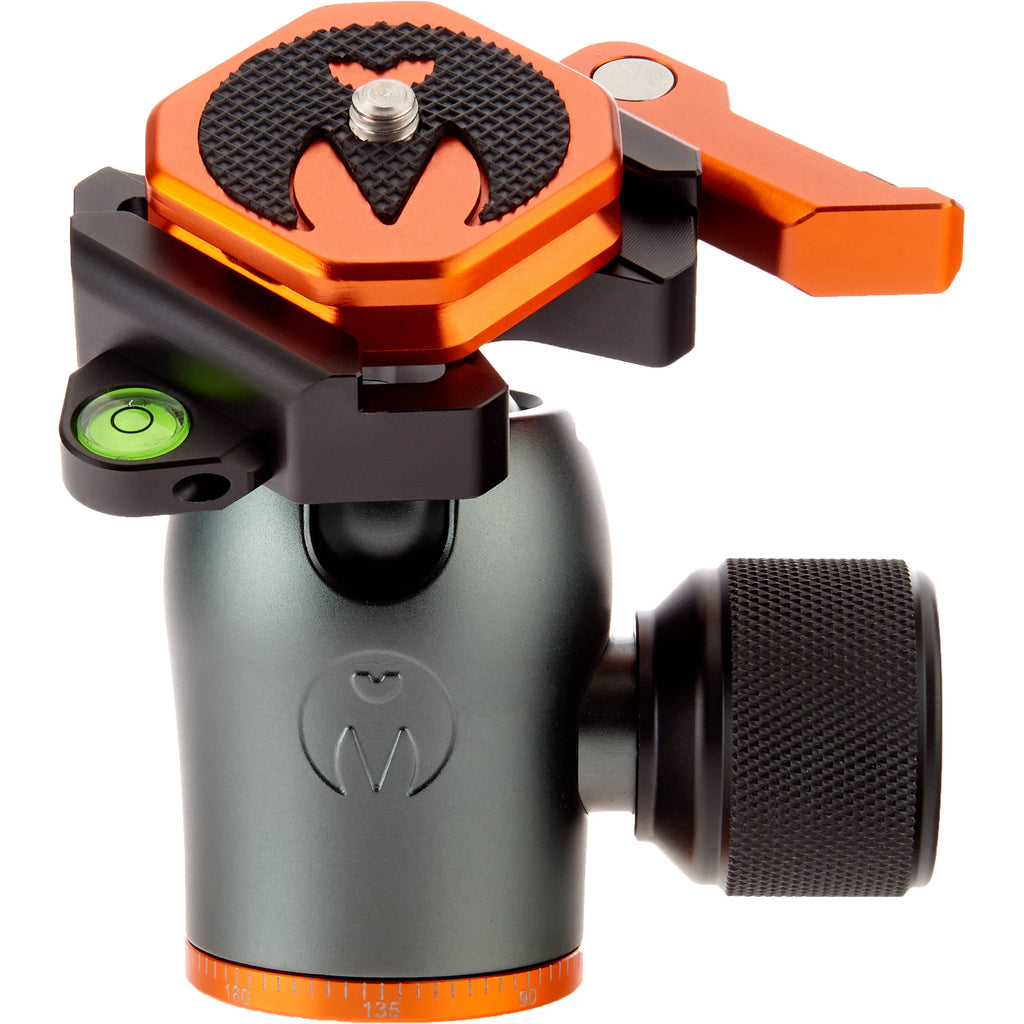

The gray AirHed Pro Lever Ball Head from 3 Legged Thing is an Arca-type ball head with a load capacity of 88.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QR-OCTA Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by using the clamp's push-and-pull cam lock lever. When opened, the lever can be rotated and flipped over so that when used to lock the clamp, the direction of the lever's motion best suits either a right- or left-handed user.
Dual retaining screws are included for use along the underside of the plate. These screws prevent the plate from accidentally sliding off the ball head when the clamp is opened. The quick release plate features a rubberized, non-slip platform while a built-in bubble level along the edge of the clamp opposite the cam lock lever accommodates landscape orientations.

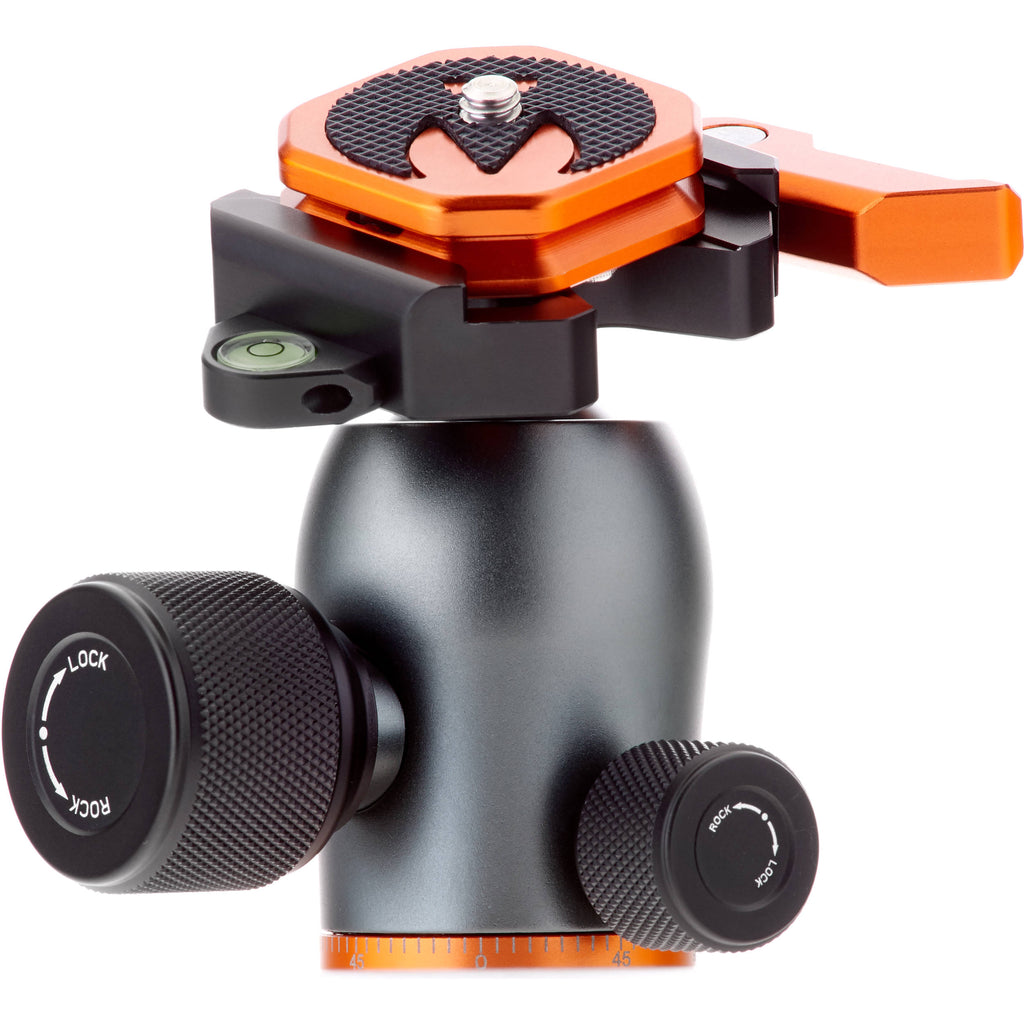

By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Under the primary locking knob is a secondary locking knob, which controls the ability to rotate the head 360°.
AirHed Pro Lever Ball Head
- Arca-type ball head with 88 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Large primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Secondary locking knob with knurled surface allows head to rotate 360°

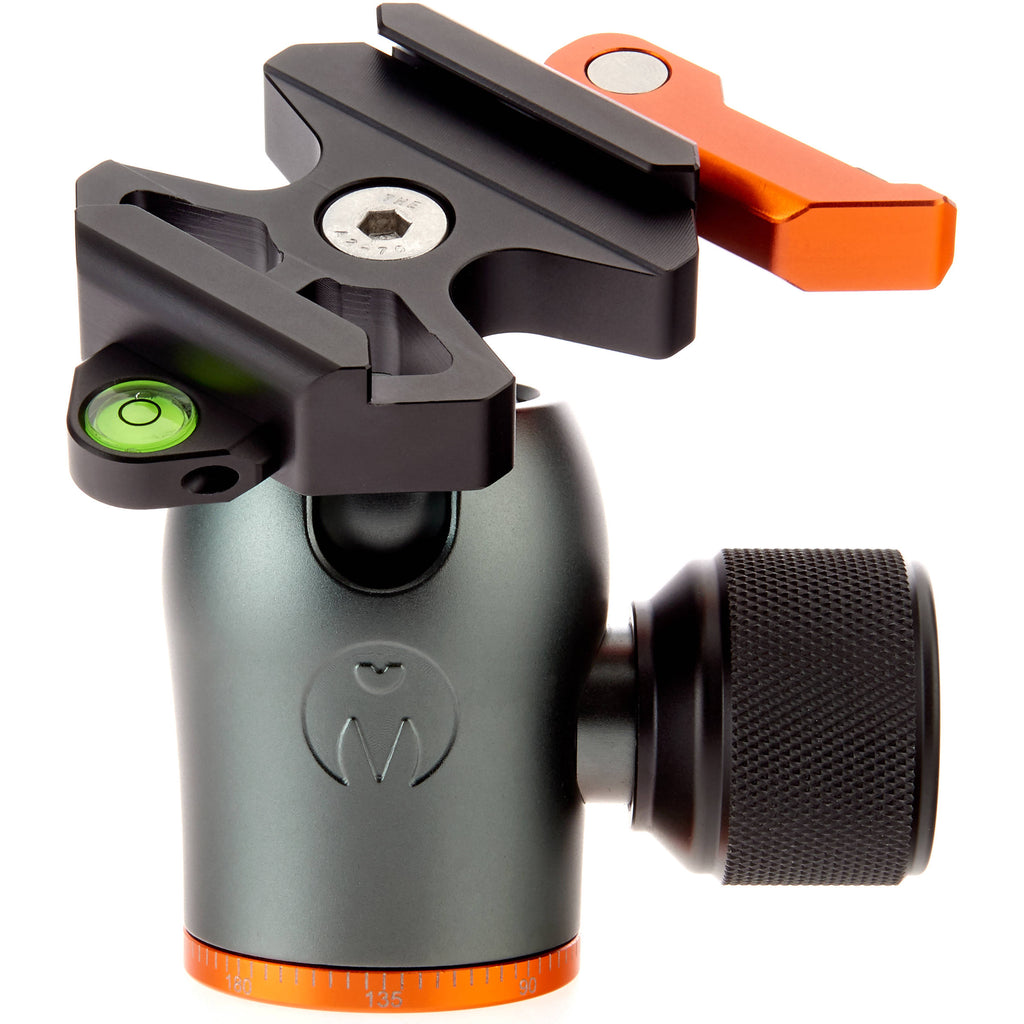

- Integrated clamp on top of on the ball-and-socket joint is compatible with included QR-OCTA Quick Release Plate
- Push-and-pull cam lock lever to secure compatible Arca-type quick release plates within the integrated clamp
- When opened, cam lock lever can be rotated and flipped over so that when used to lock the clamp, the direction of the lever's motion best suits either a right or left-handed user
- Built-in bubble level along the edge of the clamp opposite the cam lock lever accommodates landscape orientations
- Durable magnesium alloy construction
QR-OCTA Quick Release Plate
- Compatible with Arca-type quick release clamps
- 1/4"-20 mount
- Dual retaining screws along the underside of the plate prevent the plate from accidentally sliding off the AirHed Pro Lever Ball Head
- Durable, aluminum alloy construction
In the Box
- 3 Legged Thing AirHed Pro Lever Ball Head (Gray)
- QR-OCTA Quick Release Plate
- 1/4"-20 Stagsden Camera Bolt
- Limited 5-Year Warranty
3 Legged Thing AIRHED PRO Specs
General
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1/4"-20 Male |
| Quick Release Plate Type | Arca-Type |
| Load Capacity | 88 lb / 39.92 kg |
| Number of Bubble Levels | 1 |
| Friction Control | No |
| Independent Pan Lock | Yes |
| Material | Magnesium |
Pan & Tilt Range
| Vertical Tilt | 90° |
| Panning Range | 360° |
Physical
| Ball Sphere Diameter | 1.18" / 30 mm |
| Dimensions | H: 3.5" / H: 89.0 mm |
| Weight | 0.72 lb / 0.33 kg |
Packaging Info
| Package Weight | 0.915 lb |
| Box Dimensions (LxWxH) | 4.8 x 4 x 4" |
