2N IP Verso Overview

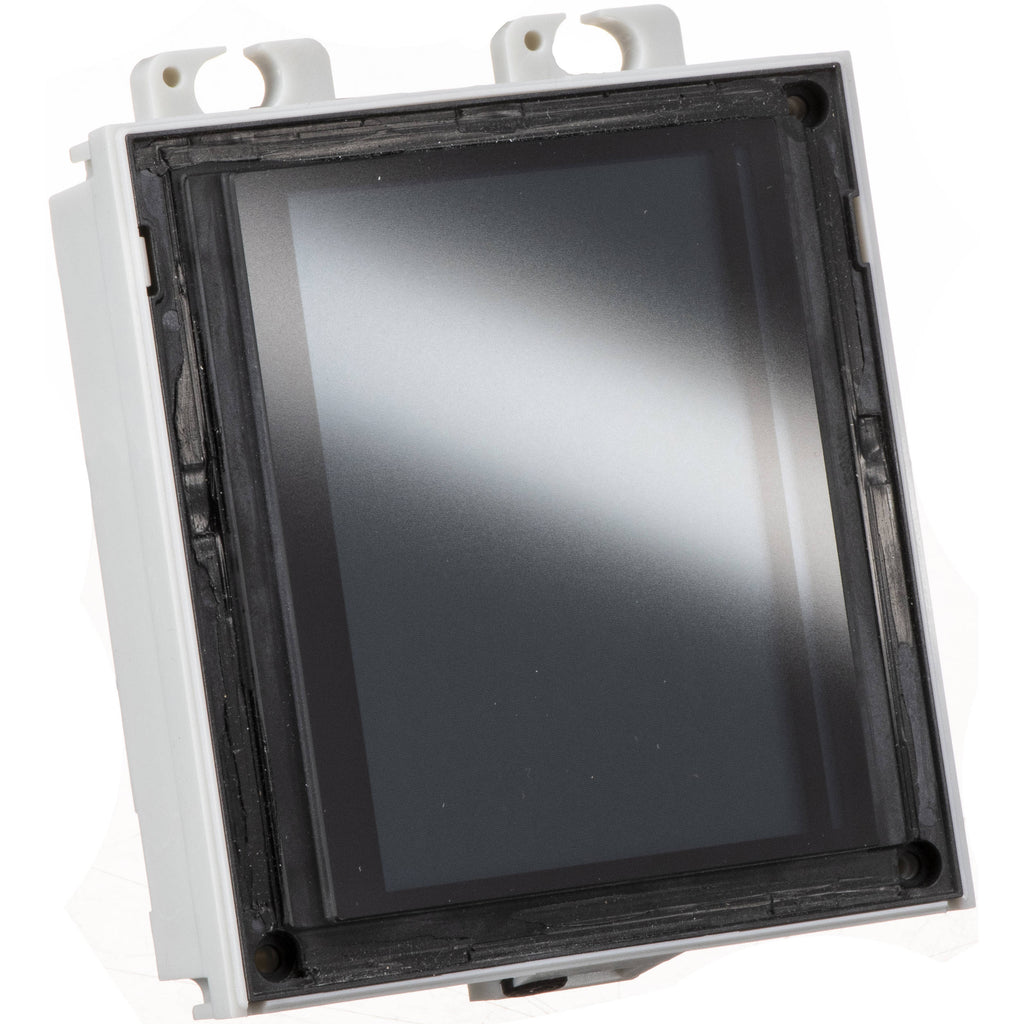

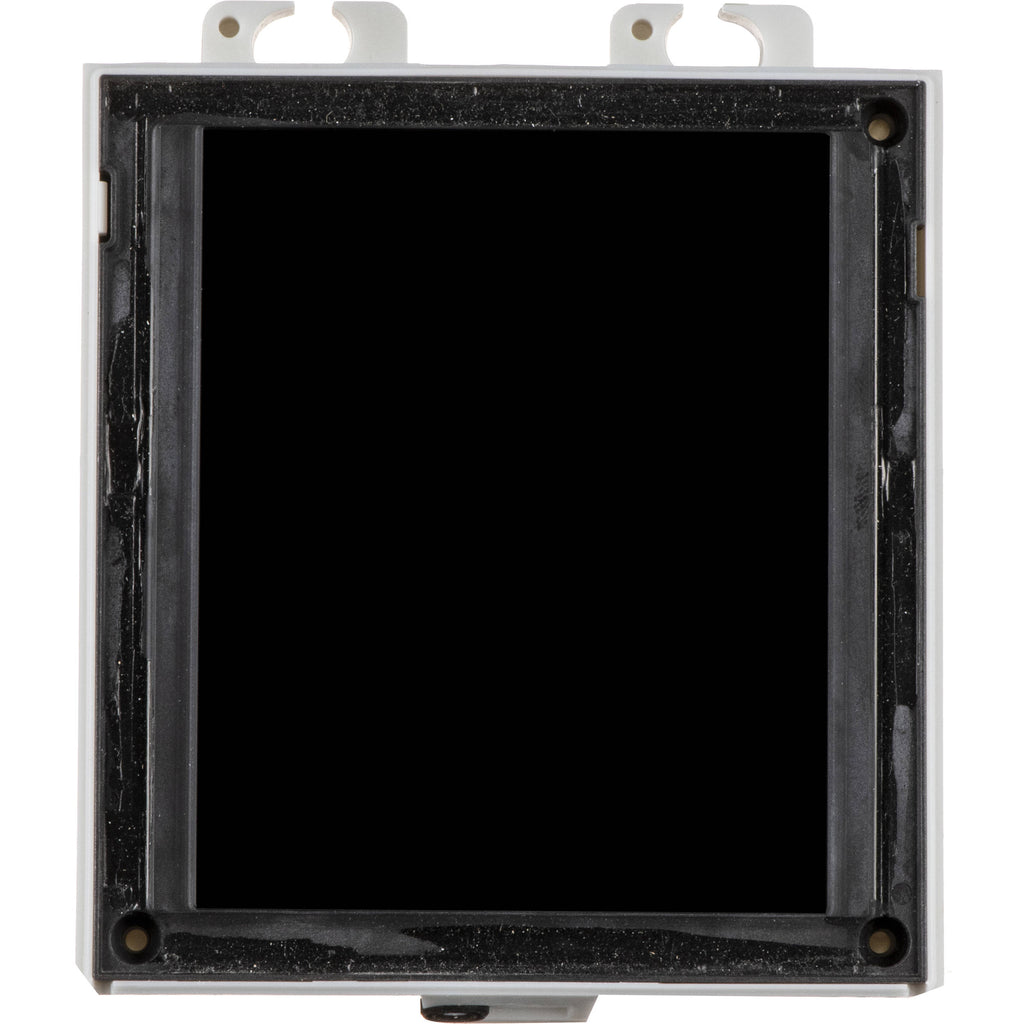

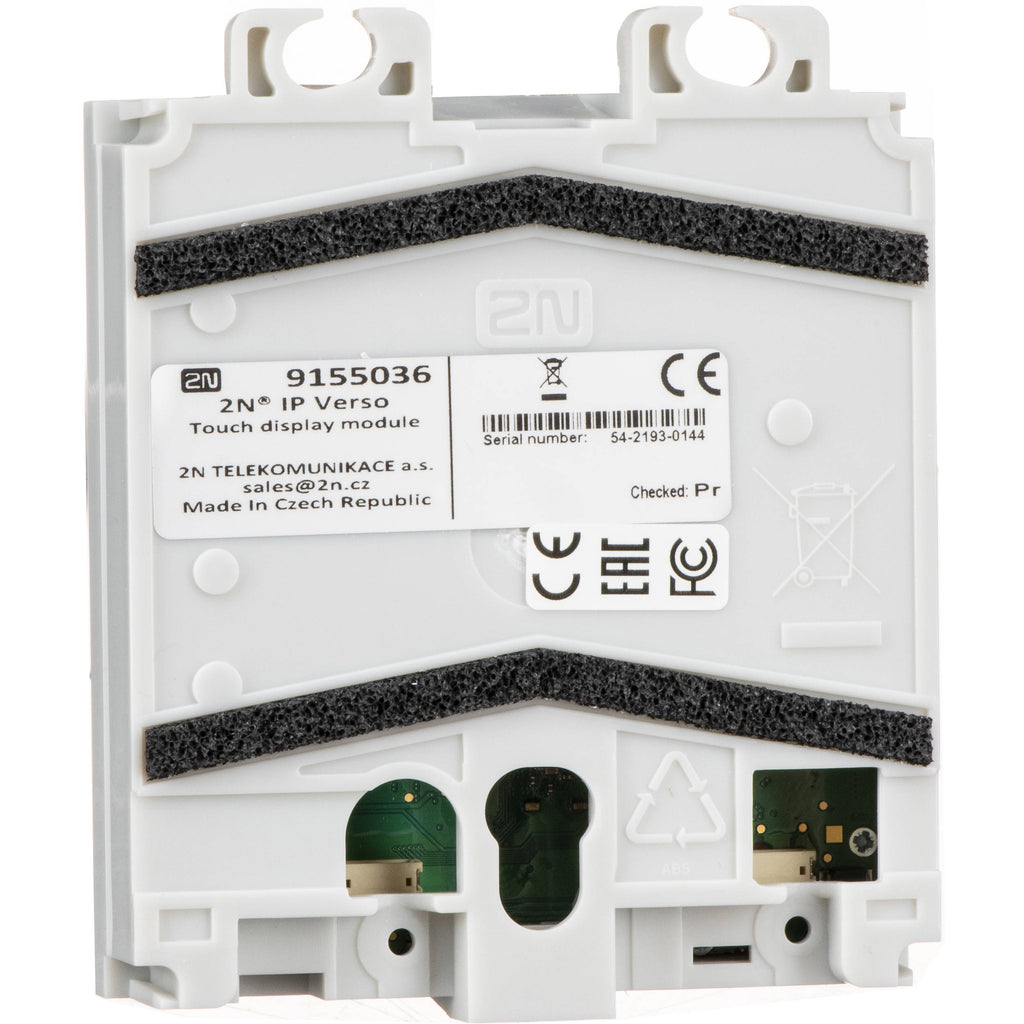

The weather-resistant 01275-001 Touch Display Module is designed to be used with Verso intercoms and Access Unit devices from 2N. It provides access code entry via a touch keypad and can store up to 10,000 contacts. This touch display features a 320 x 214 resolution, a 4" LCD screen, a 400:1 contrast ratio, an 80° field of view from all directions, and an IK07 rating for impact resistance.
Compatible with Verso intercoms and Access Unit devices from 2N
Tree data structure phone book with a capacity for storing up to 10,000 contacts
Scramble keypad to prevent onlookers from detecting the access code
Search function via LCD screen
Display can be read in total darkness and in direct sunlight
Capable of presenting a slideshow during idle time
2N IP Verso Specs
Resolution (H x V) |
320 x 214 Pixels |
LCD Screen |
4" / 101.6 mm |
Contrast Ratio |
400:1 |
Brightness |
350 cd/m² |
Field of View |
80° (All Directions) |
Operating Temperature |
-4 to 140°F / -20 to 60°C |
IK Rating |
IK07 |
Weight |
0.6 lb / 280 g |
Packaging Info
Package Weight |
0.625 lb |
Box Dimensions (LxWxH) |
5.3 x 4.4 x 1.4" |
