Description

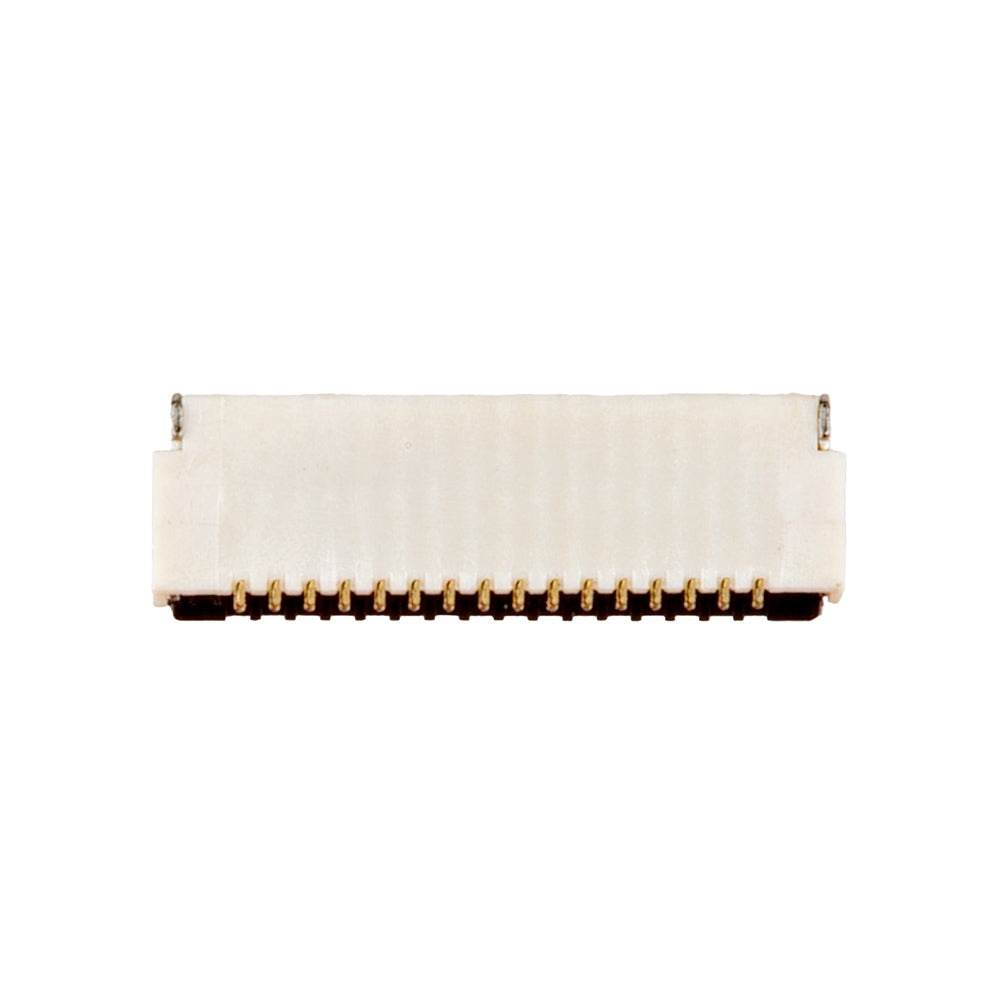

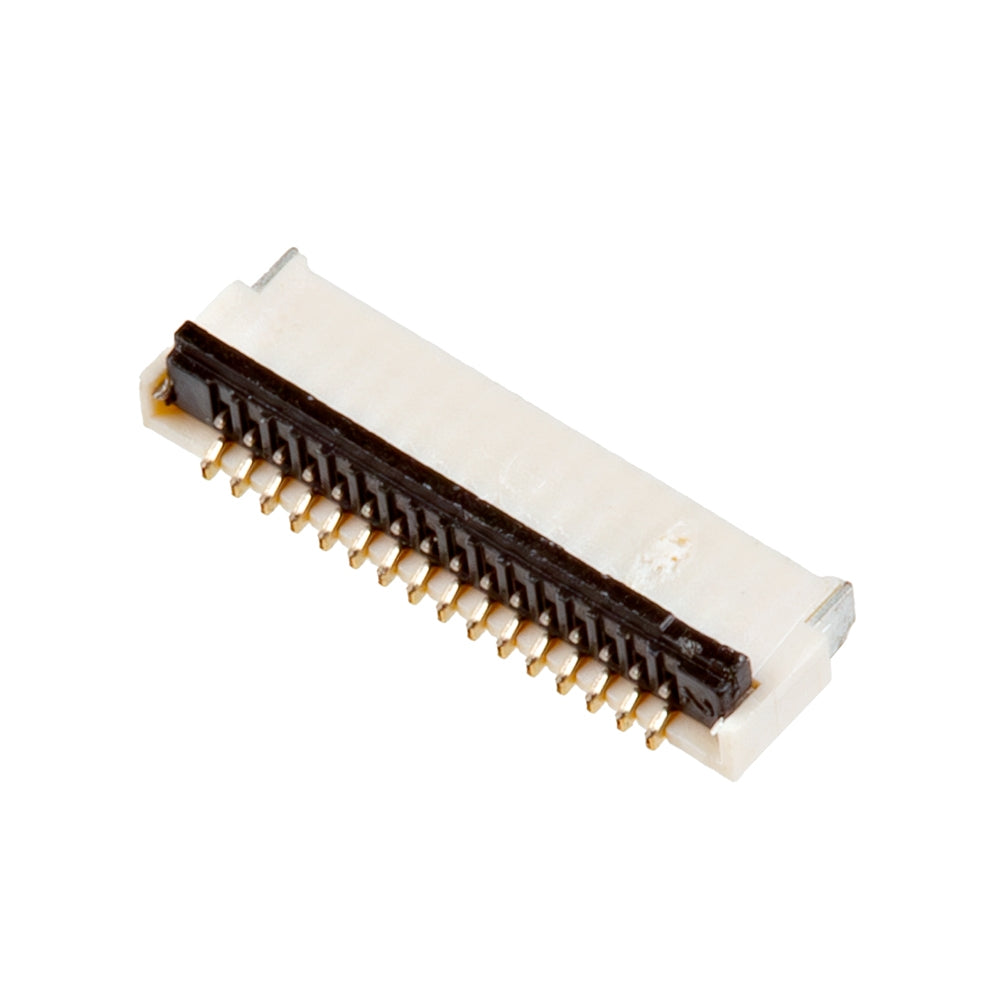

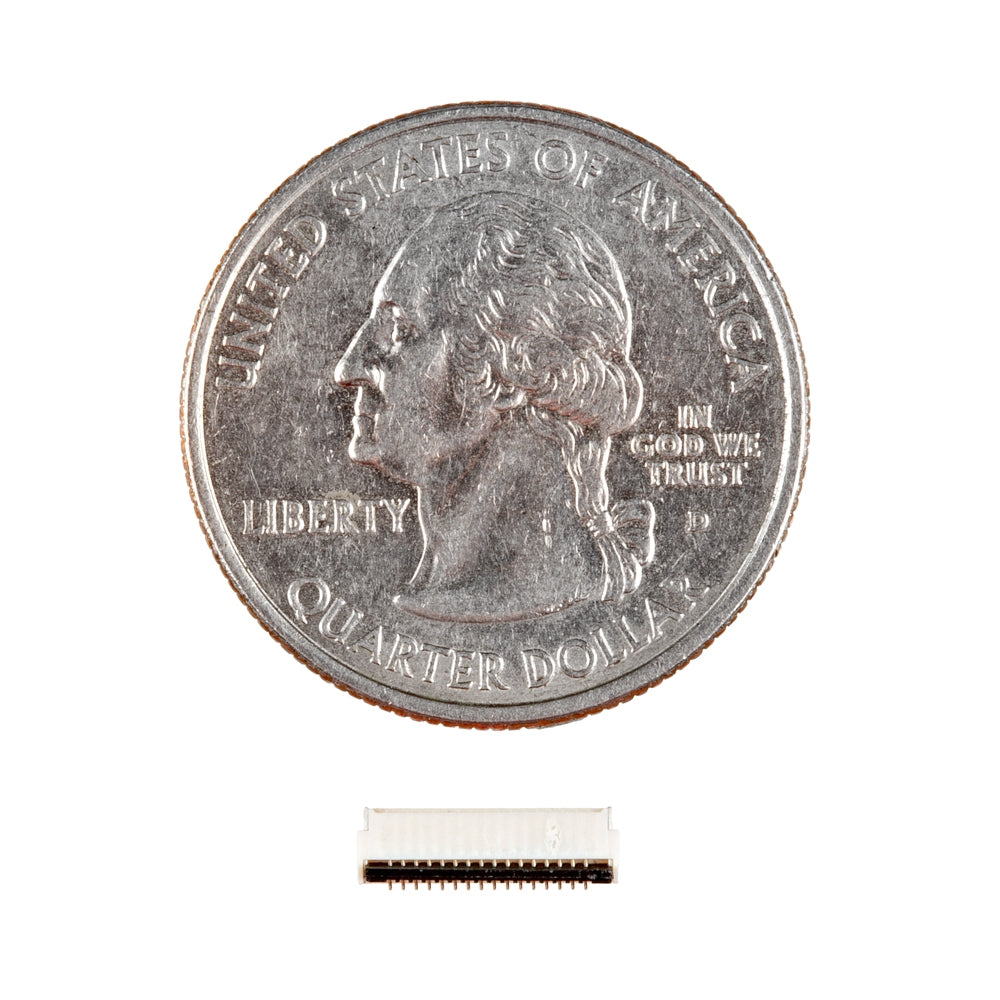

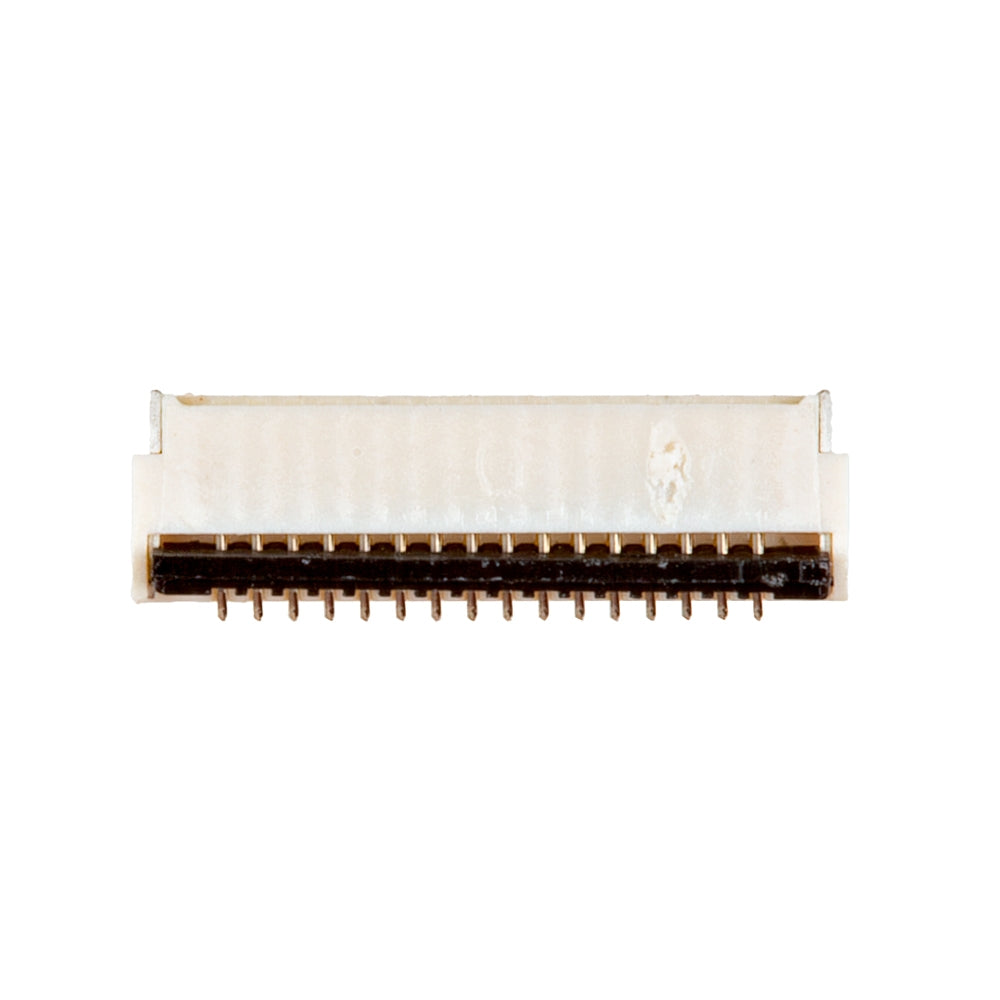

This is a 16-pin surface mount dual contact 0.5mm pitch ZIF FPC connector.
Features & Specs
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top and Bottom
- Number of Positions: 16
- Pitch: 0.5mm (0.020")
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 1.00mm (0.039")
- Locking Feature: Flip Lock, Backlock
- Cable End Type: Tapered
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Housing Material: Thermoplastic
- Actuator Material: Thermoplastic
- Voltage Rating: 30V
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 0.2A
Features & Specs
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top and Bottom
- Number of Positions: 16
- Pitch: 0.5mm (0.020")
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 1.00mm (0.039")
- Locking Feature: Flip Lock, Backlock
- Cable End Type: Tapered
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Housing Material: Thermoplastic
- Actuator Material: Thermoplastic
- Voltage Rating: 30V
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 0.2A
