Description
1010music Compact Mixer/Recorder Overview
Connect, mix, and record Eurorack, samplers, drum machines and synthesizers with the 1010 Music Bluebox, a compact digital mixer and recorder with 12 mono or 6 stereo inputs all with independent control. Each track offers control of volume, gain, 4 band parametric EQ, pan, mute and solo functions. Apply high-quality global reverb and delay effects along with 4-band EQ per track to add new depth to your sound with total control to quickly tweak incoming audio or track playback as needed.

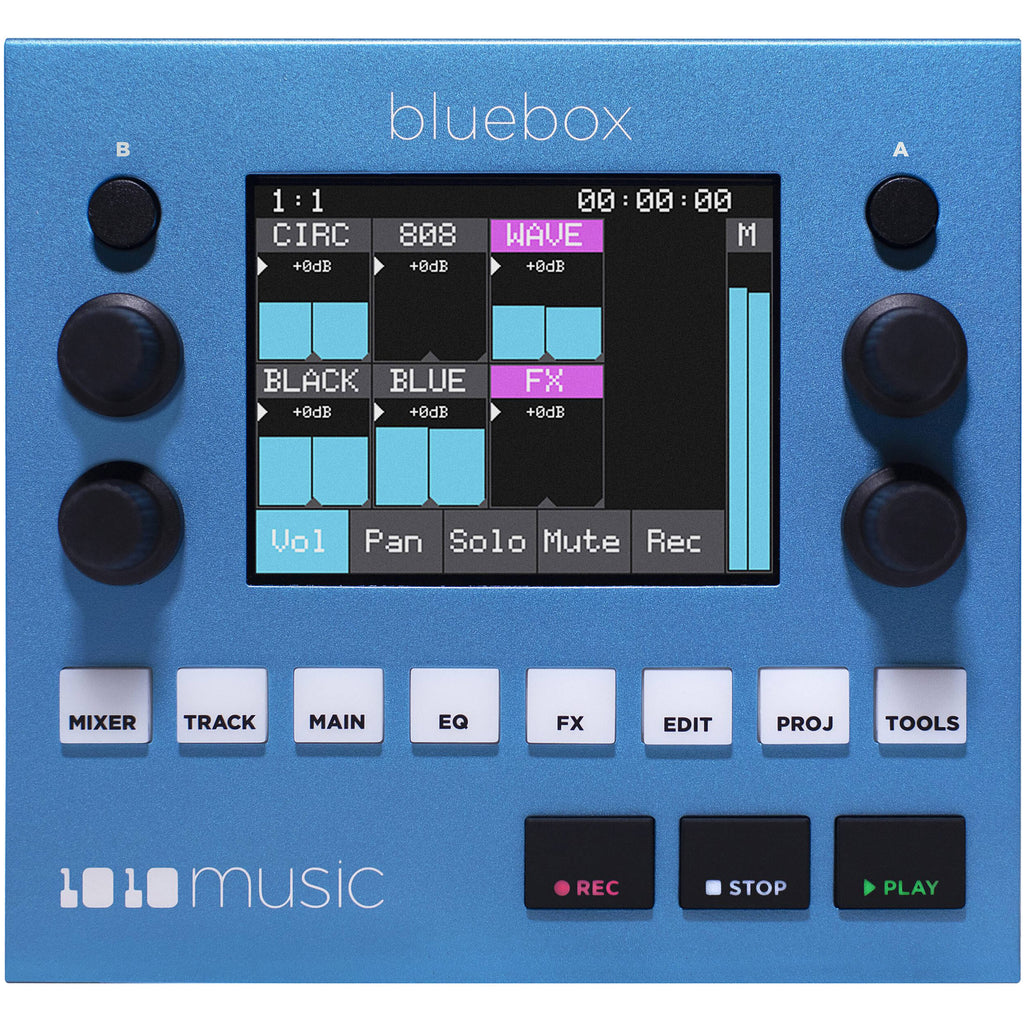

The Bluebox allows you to record the stereo main mix or each track individually to a standard microSD card, allowing you to capture your jam session for later review or record the ultimate mix of the tracks for your song. The durable metal case is small and fits into tight places. It also can be thrown into a backpack for the ultimate portable setup. The built-in 3.5" touchscreen, physical knobs, and buttons allow you to easily navigate the user interface. The rear panel also includes a USB-A port for connecting a MIDI controller. The Bluebox ships with a microSD card, USB power cable with 3 international adapters, two MIDI adapters (3.5mm to 5-pin DIN Type-B), and a USB-B splitter for power and data.
- Mix 12 mono / 6 stereo tracks of live or prerecorded sound.
- Independently route each track to any combination of three stereo outputs:
- Stereo Output 1 ? Main mix
- Stereo Output 2 ? Assignable, with dedicated sub-mixer (pre or post fader)
- Stereo Output 3 ? Headphone output, with dedicated submixer (pre or post fader)
- Control one parameter for multiple tracks at once in Mixer mode.
- Focus on one track at a time in Track mode.
- Adjust the level or mute state of each output independently.
- Use touch gestures or knobs to tweak your sound with four band EQ per track with support for Low Cut / Low Shelf, Parametric, and High Shelf / High Cut settings for each band.
- Apply high-quality Reverb and Delay effects with independent effect sends for each track.
- Override the headphone output with the Main mix on demand.
- Maximize the loudness and unify your mix with the built-in global compressor
- Sync to external clocks through the MIDI Input and Output.
- Record hours of music as 24-bit / 48 kHz WAVs directly to the microSD card as a multitrack or as the main stereo mix.
- Playback previously recorded tracks while recording new ones.
- Load firmware updates through the microSD card.
- Mix electronic music gear such as the 1010music blackbox, eurorack modules, drum machines, samplers, and synthesizers.
- Save and recall Project settings including all parameters for tracks, outputs, EQ and effects.
- Plug into a power outlet, or use with your USB Power Bank for hours of use on the go.
- Fit it into a small spot on your desk, and then tuck it in your pack for the next gig.

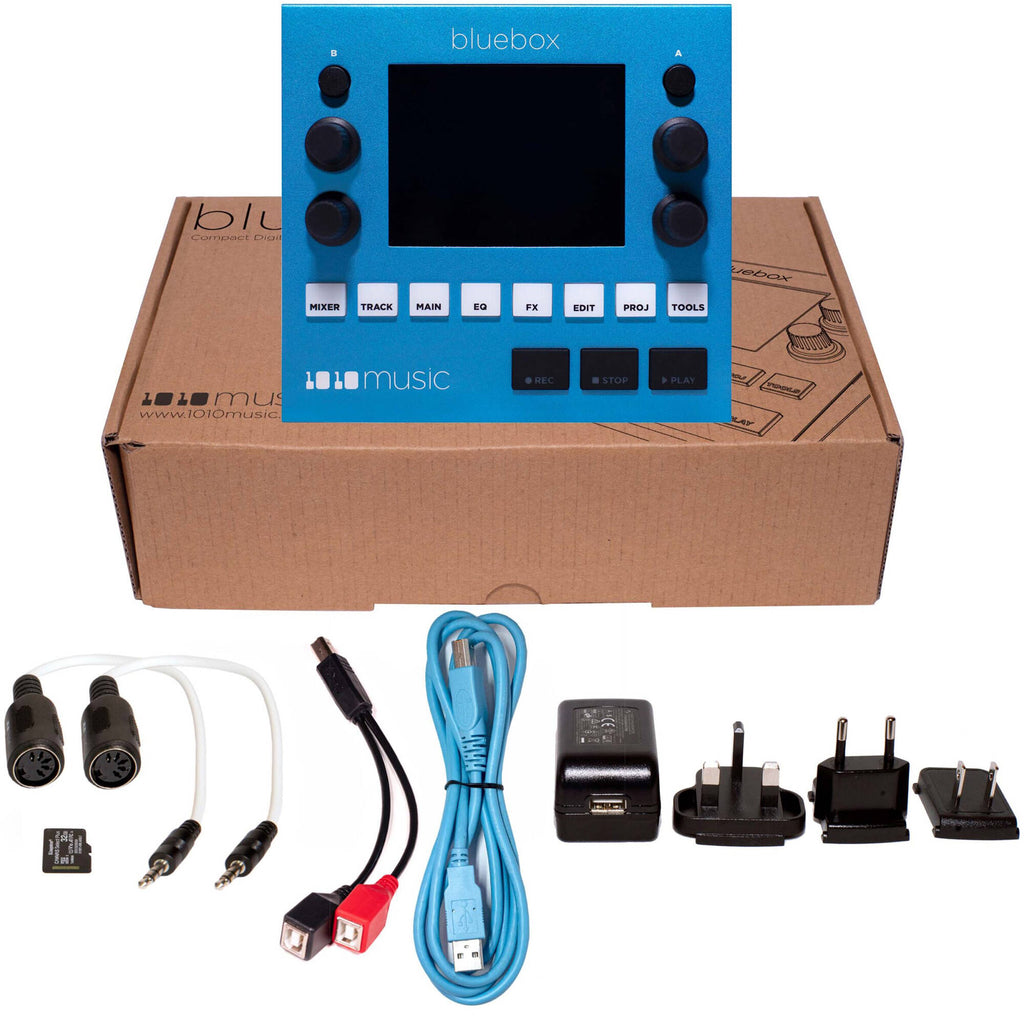

- 1010music Bluebox Compact Digital Mixer/Recorder (Blue)
- microSD Card
- USB Power Cable + 3 International Adapters
- 2 x 3.5mm TRS to Female 5-Pin DIN (Type-B)
- USB-B Splitter (Red=Power, Black=Data)
- Limited 1-Year Manufacturer Warranty
1010music Compact Mixer/Recorder Specs
| Sound Generation |
Digital
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
1/8" (3.5 mm) / 1/8" (3.5 mm) Headphone
|
| MIDI I/O |
1x 1/8" / 3.5 mm TRS Type-B Input
1x 1/8" / 3.5 mm TRS Type-B Output |
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Synth Type |
Desktop Synth Module
|
| Sound Generation |
Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| AD/DA Conversion |
24-Bit / 48 kHz
|
| Display |
3.5" / 88.9 mm Color LCD Touchscreen
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
Reverb
Delay |
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC
|
| Audio I/O |
6x 1/8" / 3.5 mm TRS Line/Modular/Eurorack Input
2x 1/8" / 3.5 mm TRS Stereo Main/Line Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Pedal Support |
No
|
| MIDI I/O |
1x 1/8" / 3.5 mm TRS Type-B Input
1x 1/8" / 3.5 mm TRS Type-B Output |
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
1x USB-B (Bus Power)
1x USB-A (Device/Controller Connection) |
| Power Requirements |
USB Bus Power, USB Power Adapter (Included)
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Current Consumption |
2 A
|
| Color |
Blue
|
| Included Accessories |
microSD Card, USB Cable
|
| Dimensions |
5.5 x 5 x 2" / 14 x 12.7 x 5.1 cm
|
| Weight |
1 lb / 454 g
|
| Package Weight |
2.075 lb
|
| Box Dimensions (LxWxH) |
10.4 x 6.5 x 3"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
