Lumens DC193 Overview

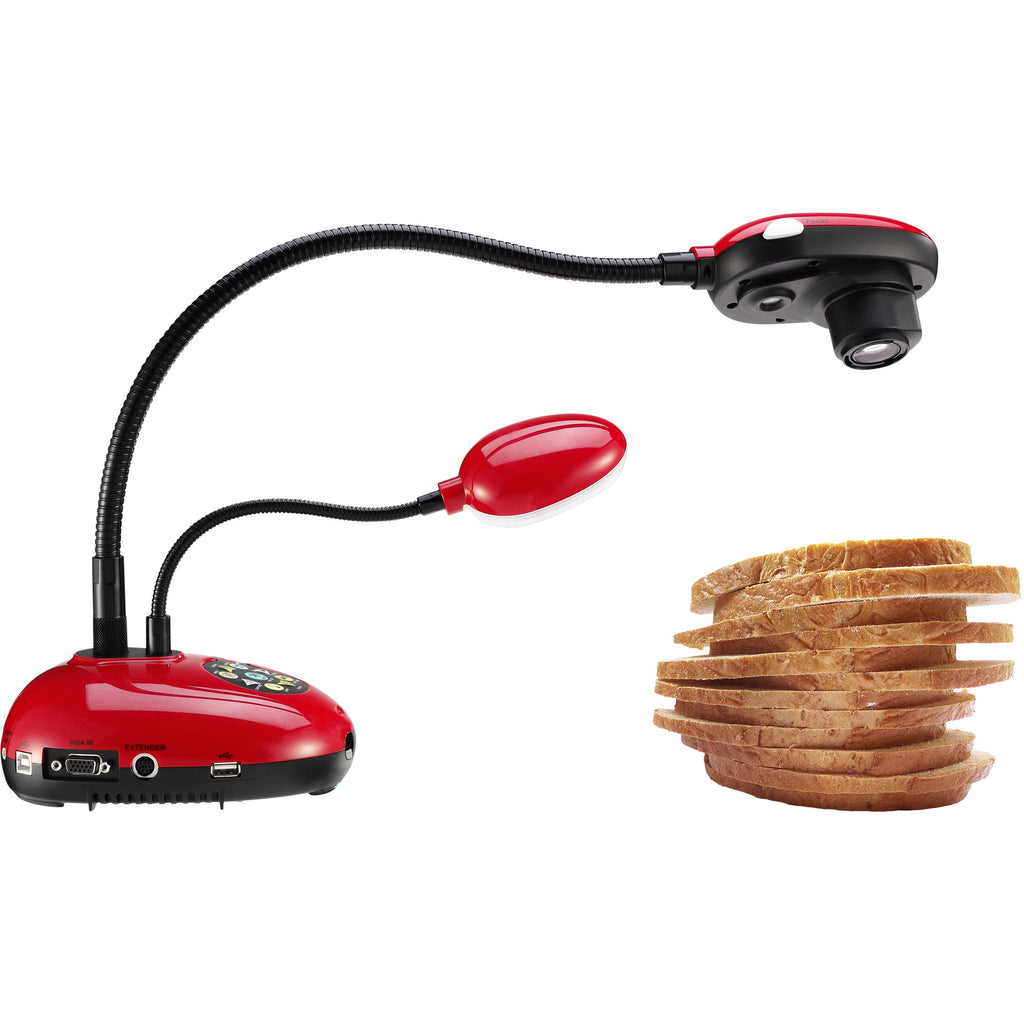

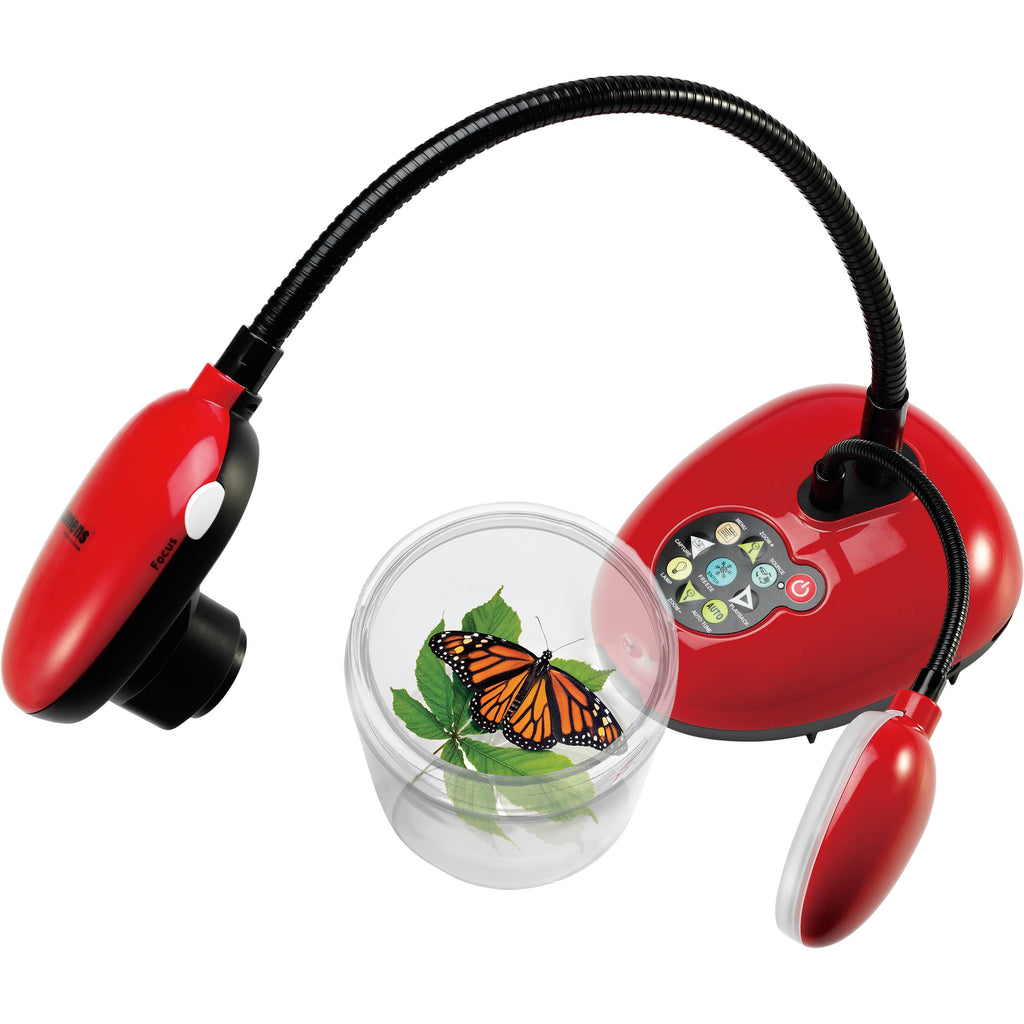

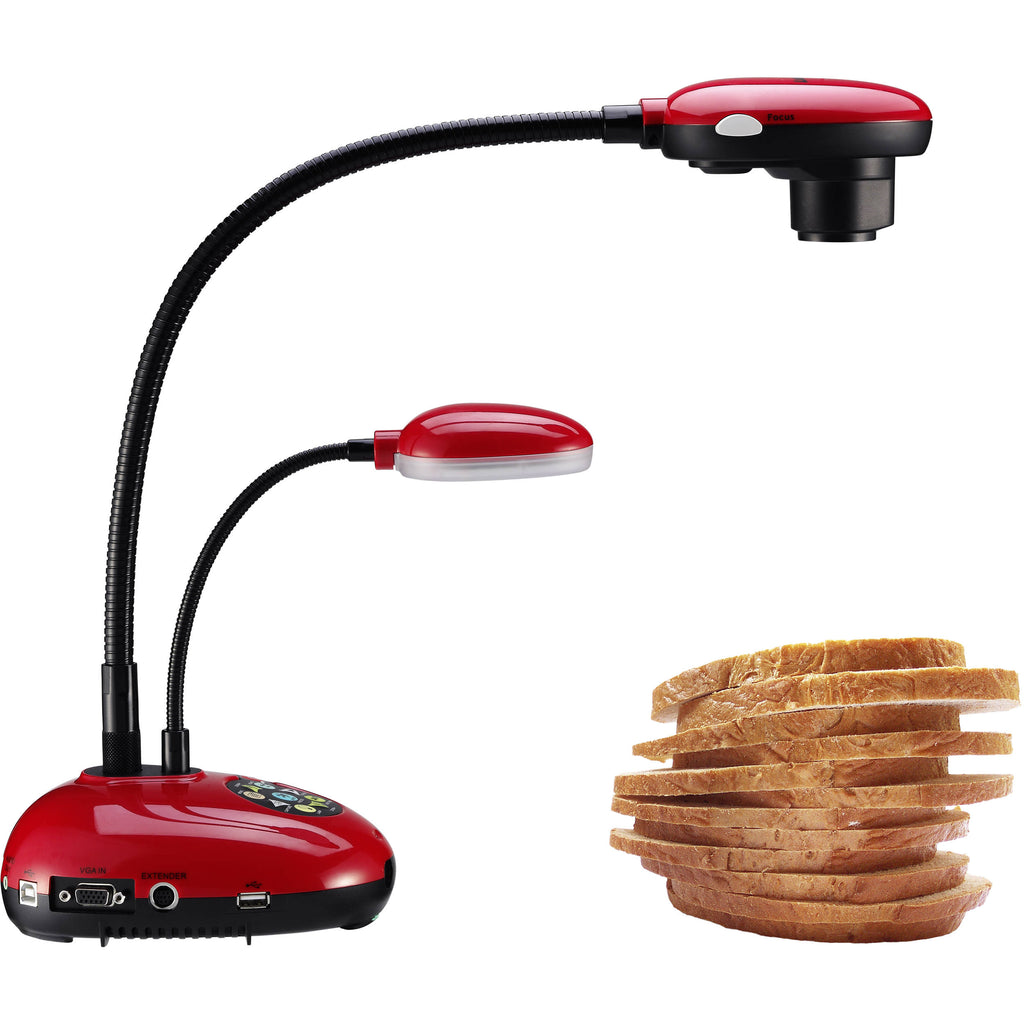

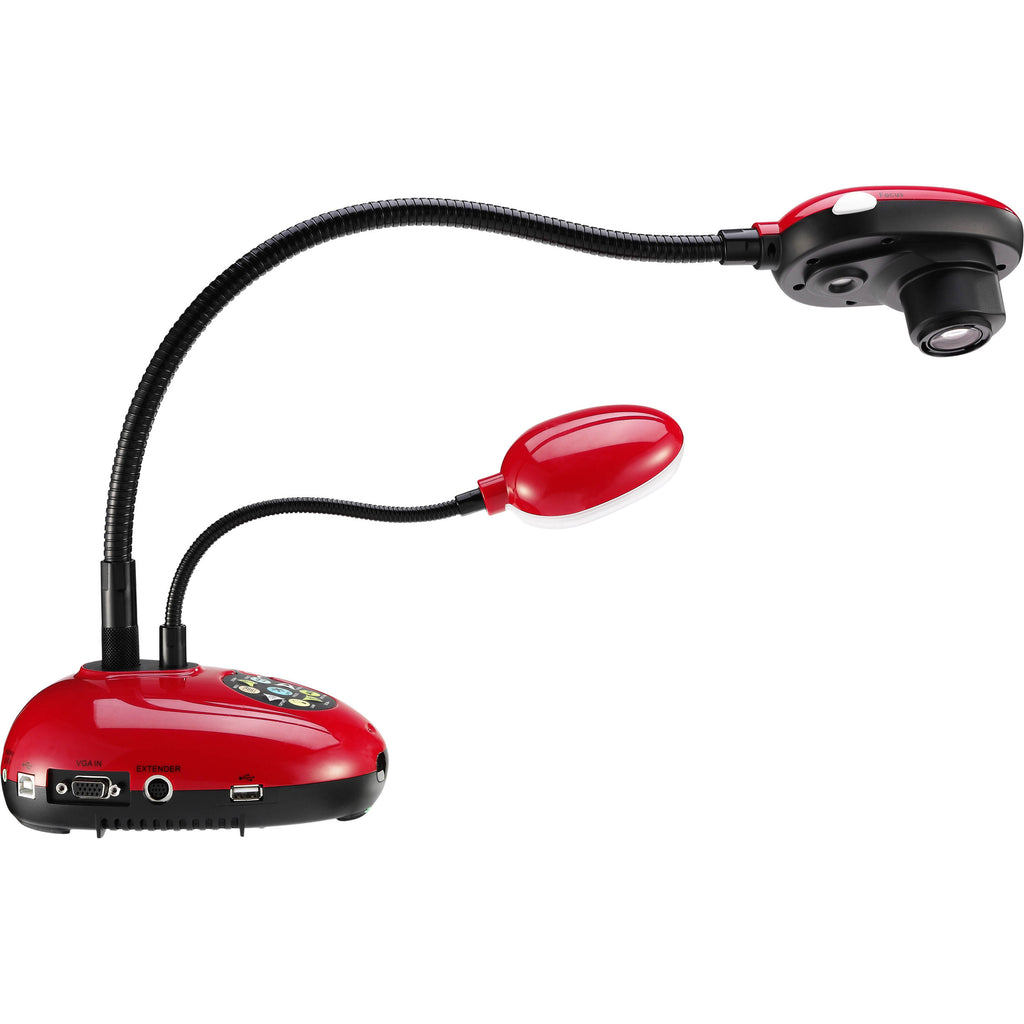

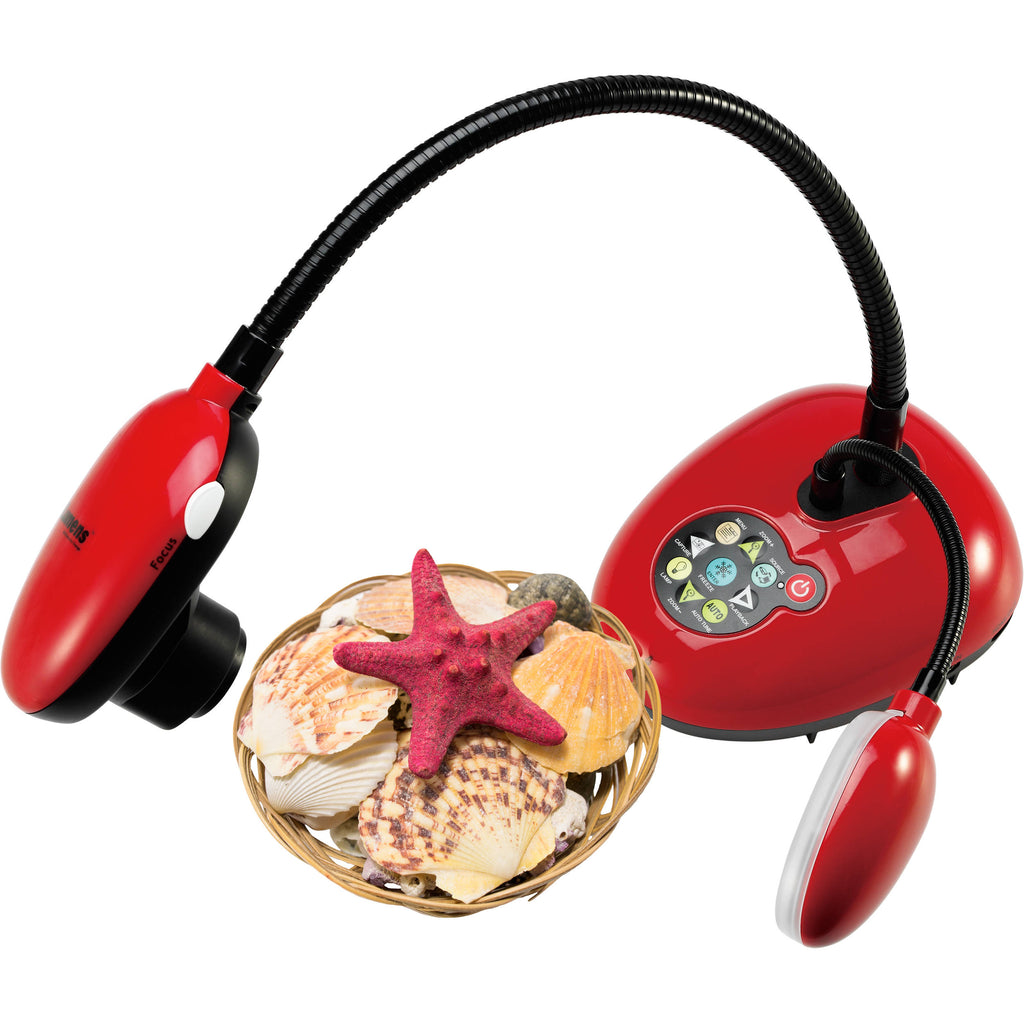

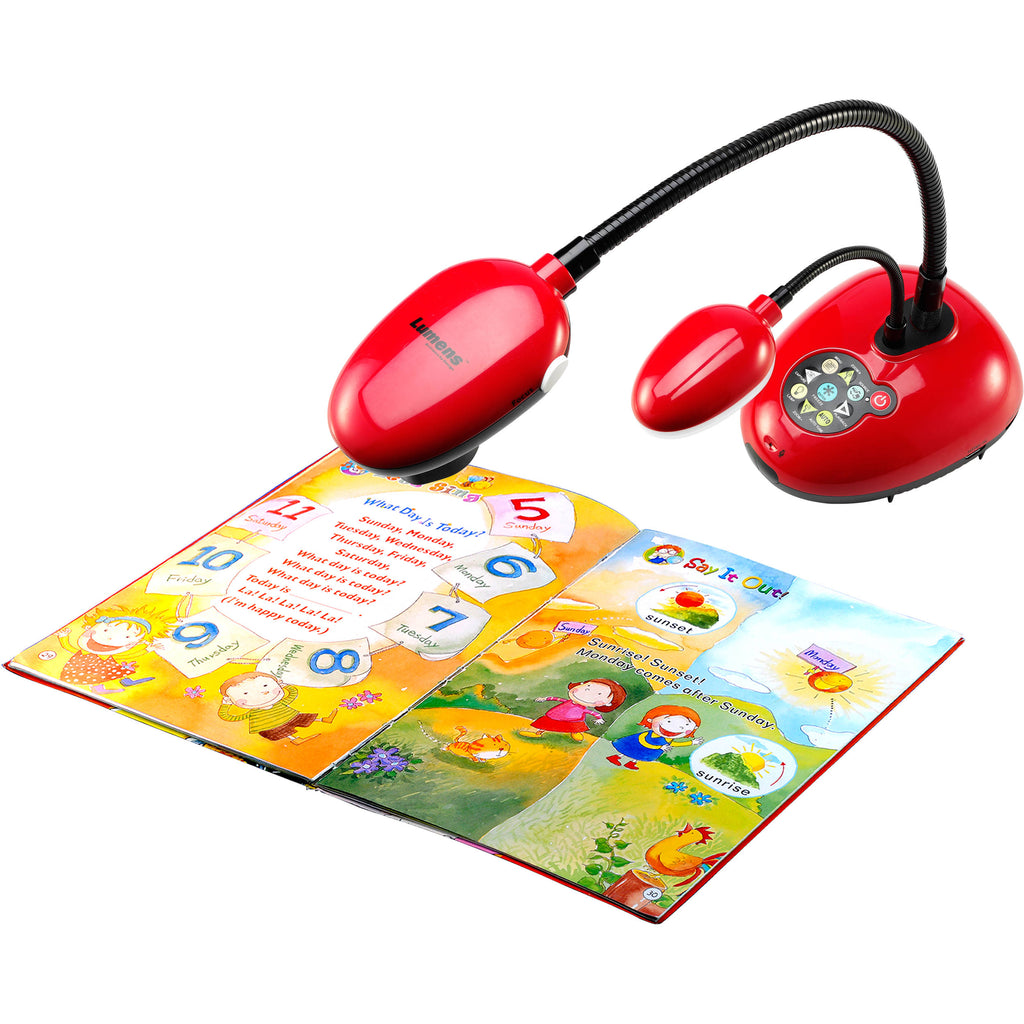

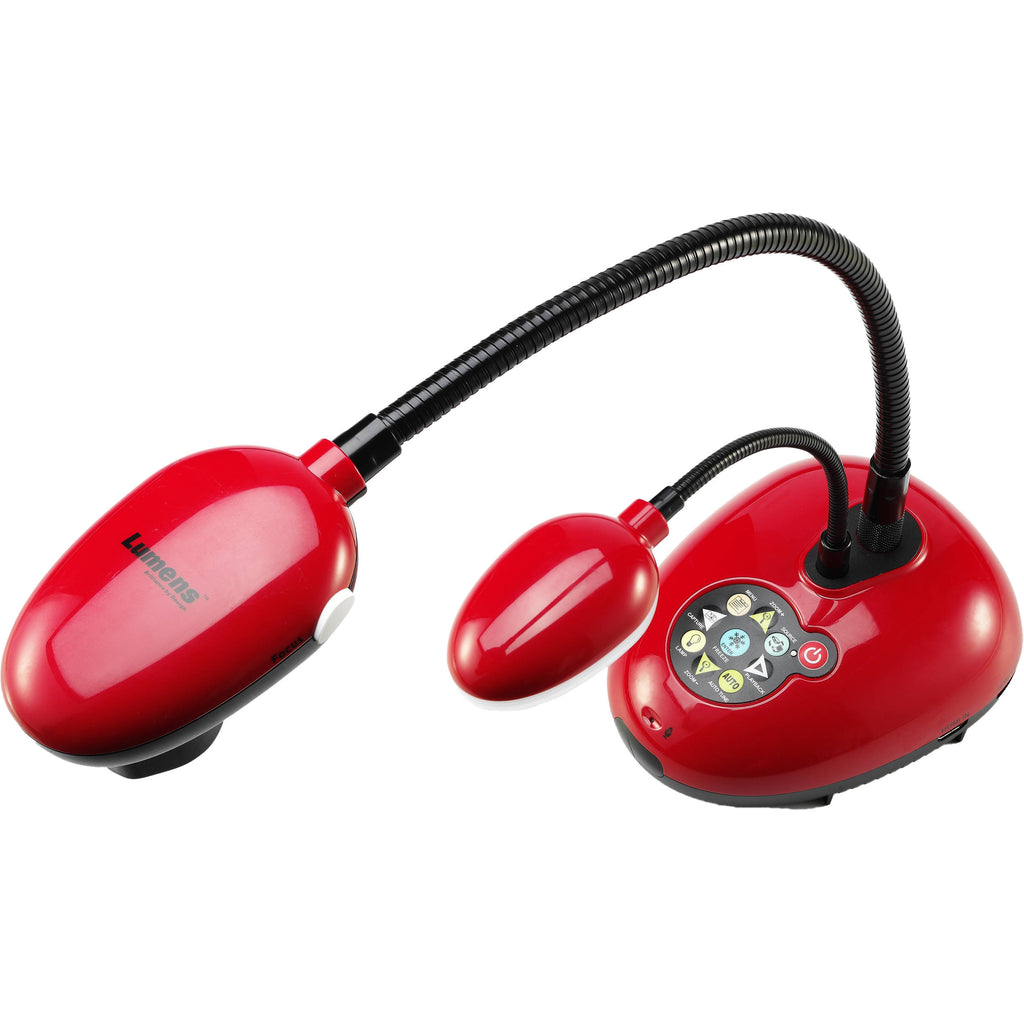

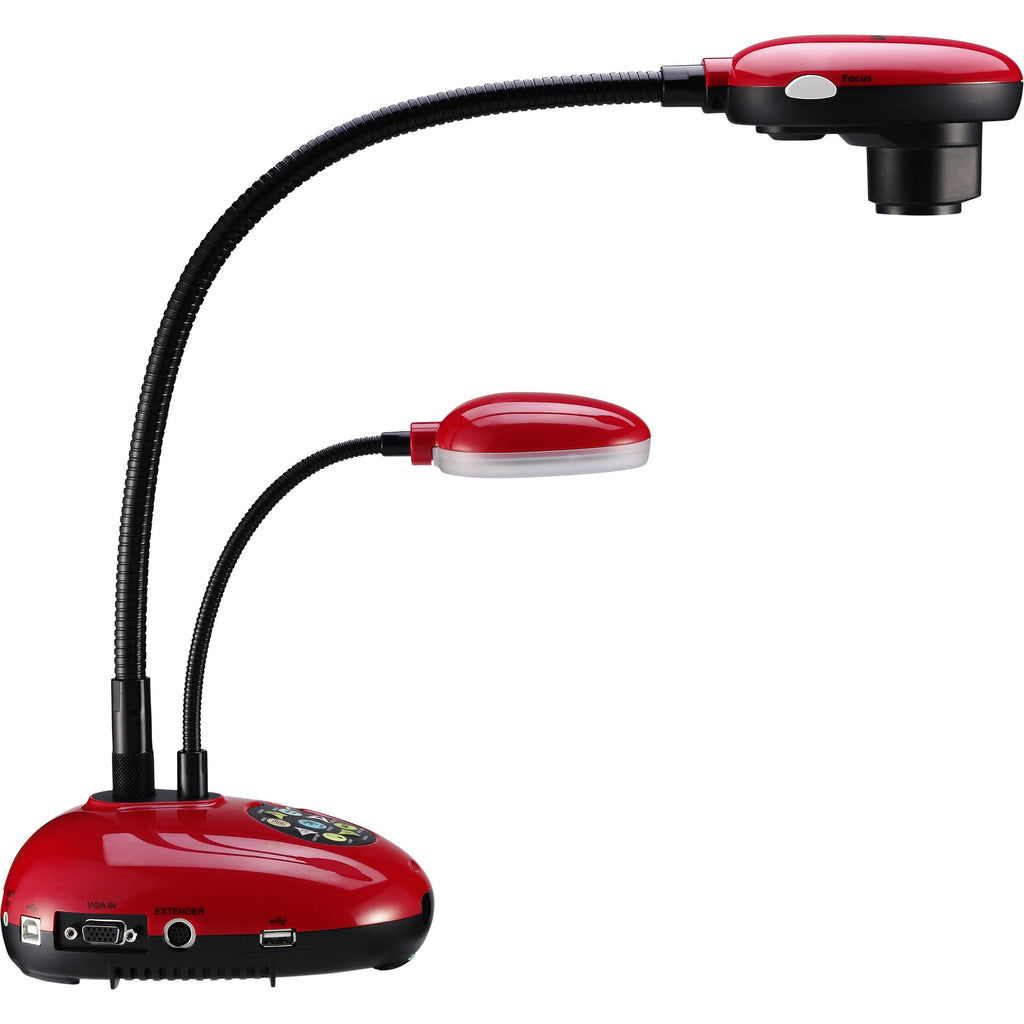

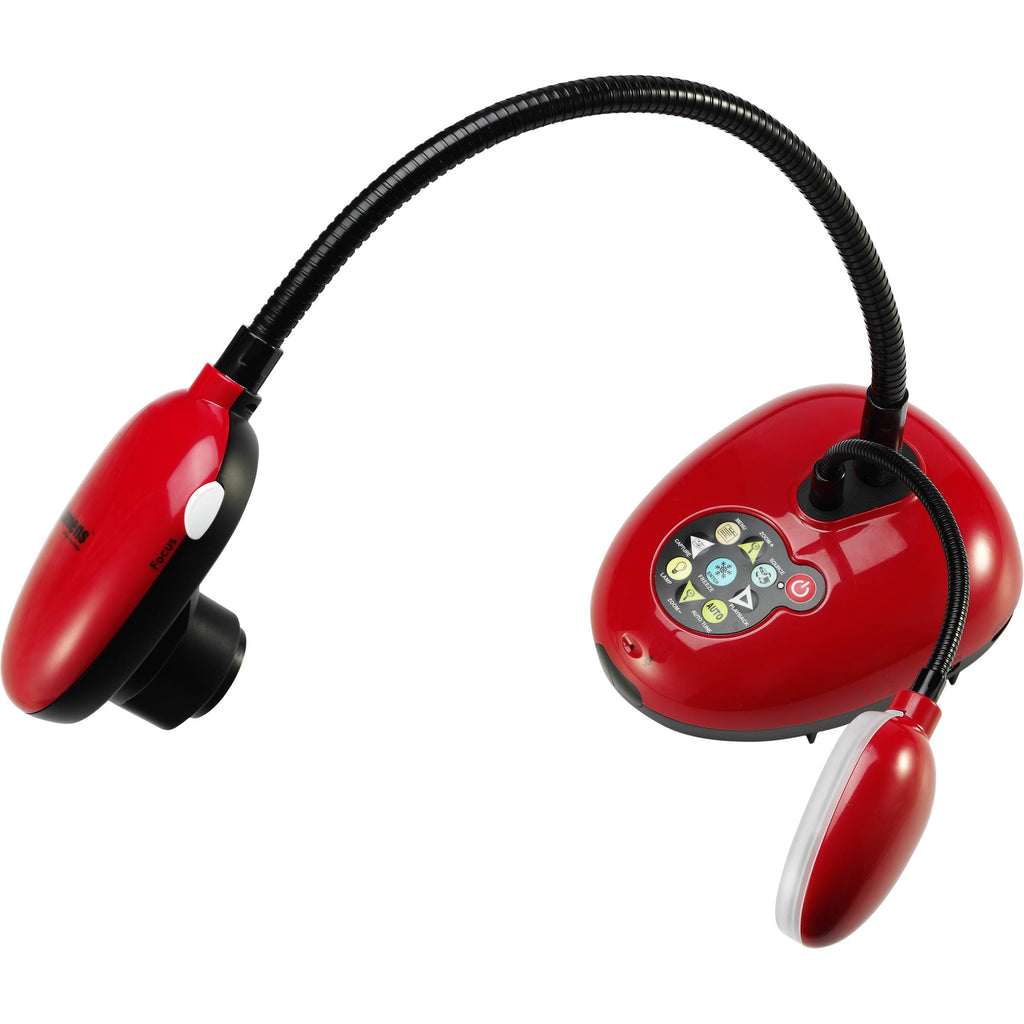

The red Ladibug DC193 Document Camera from Lumens features a 20x zoom and a professional image sensor to deliver vivid colors at Full HD 1080p/30 fps. It transmits a streaming image smoothly in real-time without delays. The internal memory stores up to 240 images and is expandable to 4TB using a USB flash drive. The one-touch video recording button allows for recording standalone presentations without the need for a PC. The jointless, highly flexible gooseneck enables a 360° viewing angle and the ability to view an object from just 1.2" to observe the object's finer details. The adjustable side lamp design prevents reflections. It is a high-definition multimedia document camera that makes presentations and teaching more interactive.
VGA and HDMI input/output
Compatible with USB flash drives

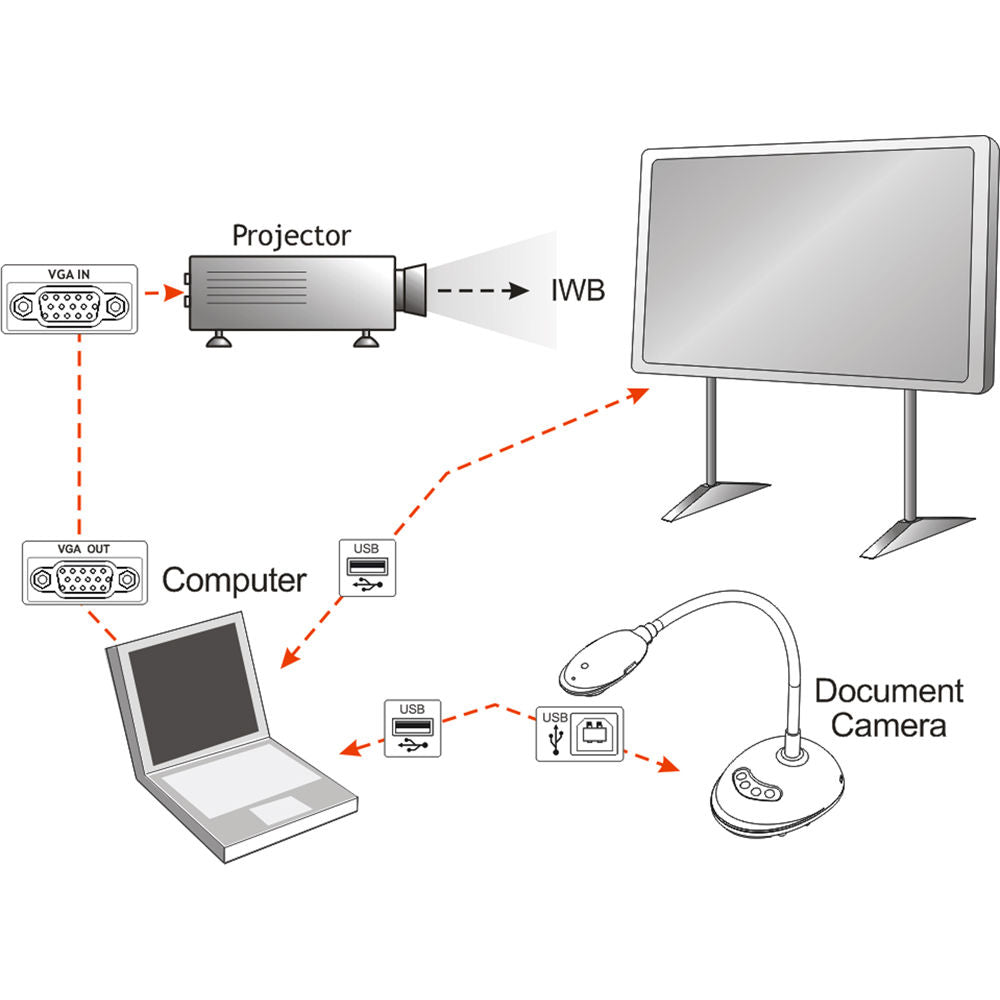

Compatible with all major whiteboard brands
Offers image optimization auto-tune button
Rigid lens provides protection from abnormal operation
Annotation without PC allows a USB wired or wireless mouse to directly edit the image
Built-in power allows a stable power supply for constant image and data flow
Anti-reflection allows light source to be adjusted according to the environment in order to prevent reflections.
Instant image adjustment adjusts the clarity, brightness, and color according to the actual environment automatically
![]()
UPC: 842183001968
Lumens DC193 Specs
Sensor
| Sensor | 1/3" CMOS |
| Sensor Resolution | 3.25 MP |
| Zoom | 12x (Digital)
10x (Optical) |
| Frame Rate | 30 fps |
| Output Resolution | 1920 x 1080 |
| Minimum Focusing Distance | 0.8" / 2.0 cm |
General
| Capture Area | 15.7 x 11.8" / 400 x 300 mm |

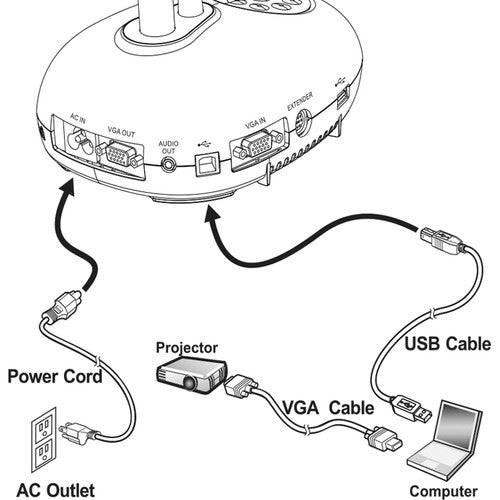

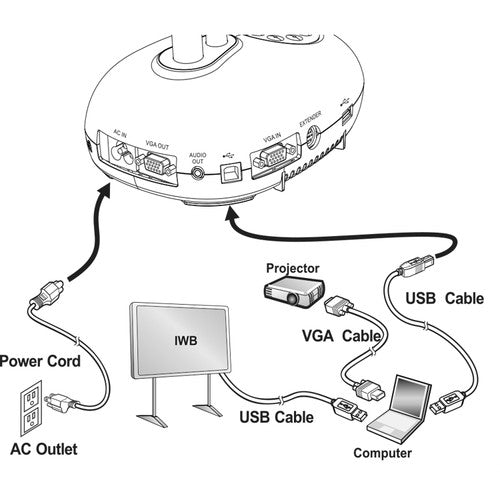

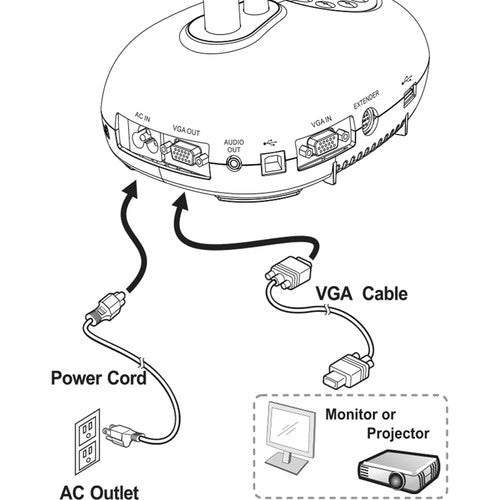

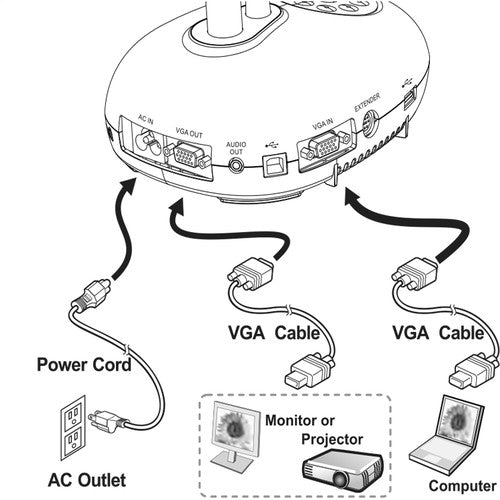

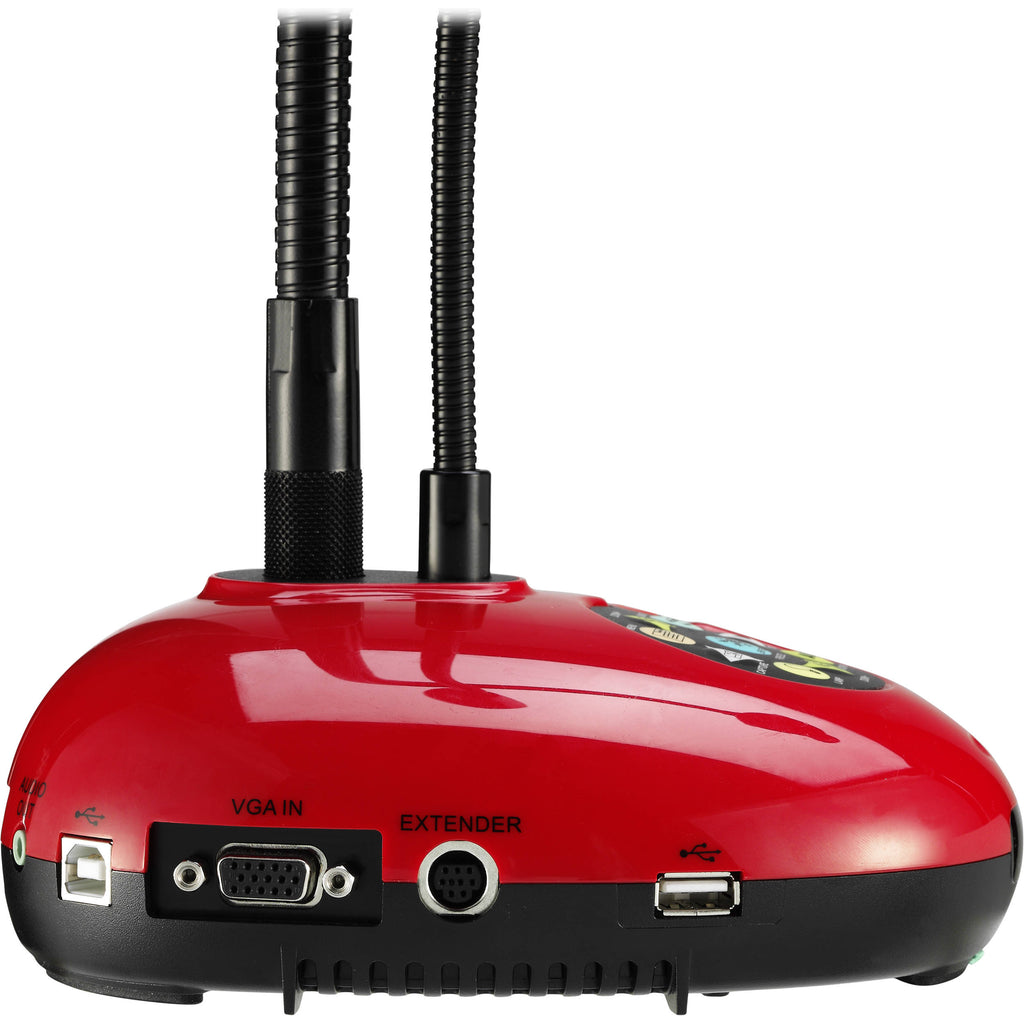

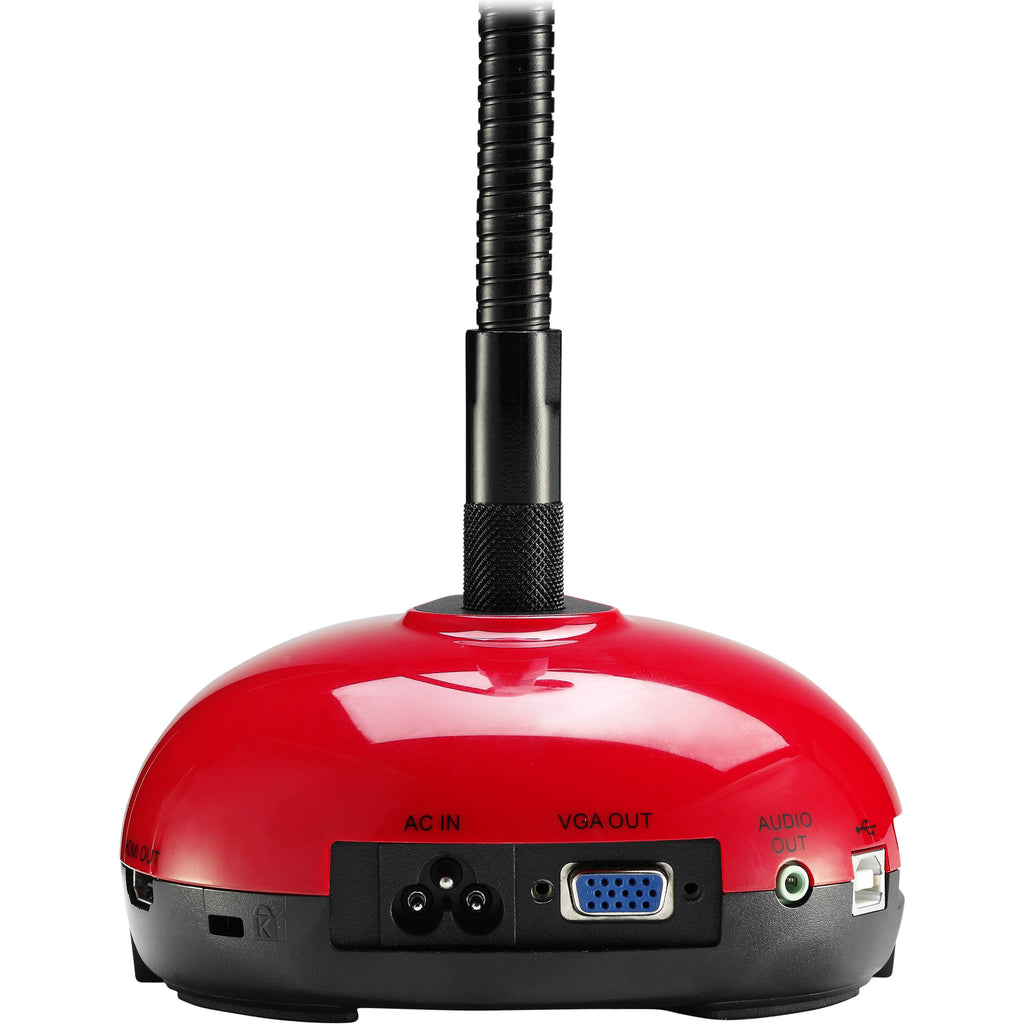

| Video Connections | 1 x HD15 VGA Input
1 x HD15 VGA Output

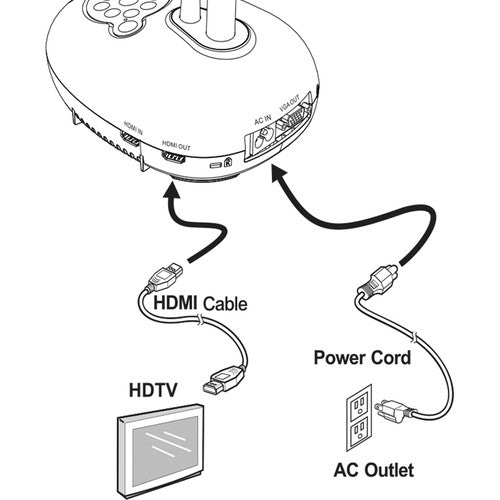

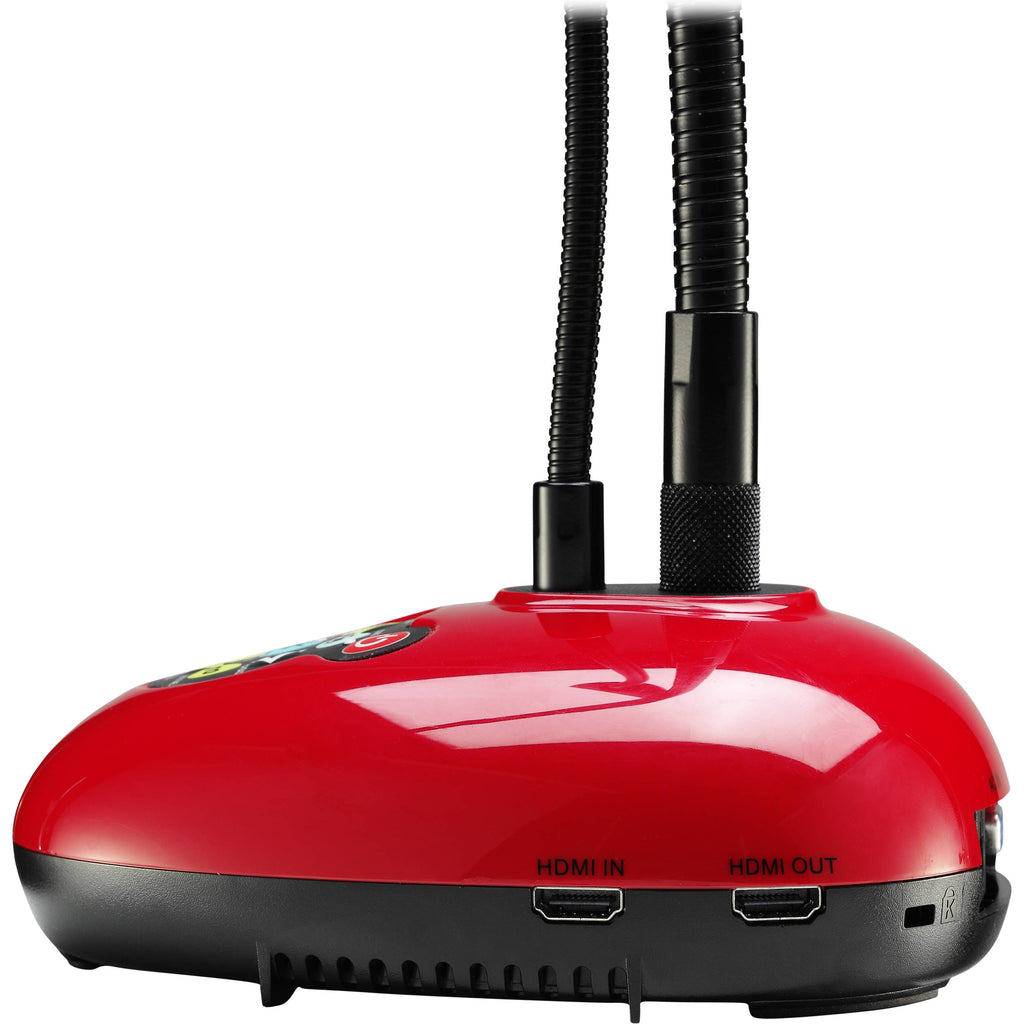

1 x HDMI Input
1 x HDMI Output |
| Audio Connections | 1 x 1/8" / 3.5 mm Line Output |

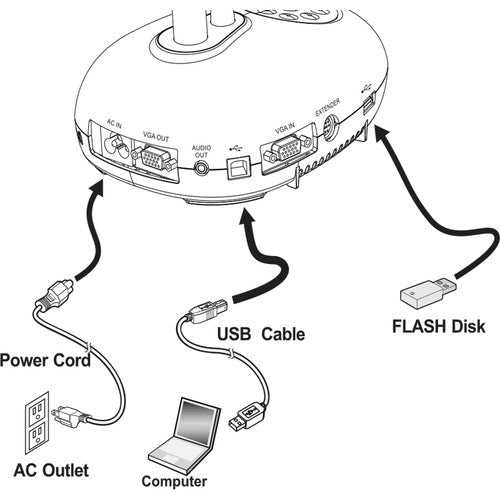

| I/O Connections | 1 x Proprietary

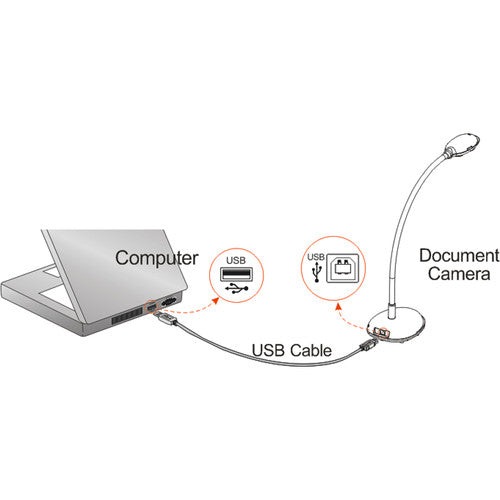

2 x USB 2.0 Type-B |
| Signal-to-Noise Ratio | 51 dBA |
Convenience
| Built-In LED Lighting | Yes |
| Built-In Mic | Yes |
| Focus Modes | Auto |
| Image Capture Modes | Single, Continuous |
Compatibility
| Operating System Support | Android, ChromeOS, Windows, iOS, macOS/OS X |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Packaging Info
| Package Weight | 8 lb |
| Box Dimensions (LxWxH) | 14.1 x 12.2 x 7.7" |
