Description
Product Overview

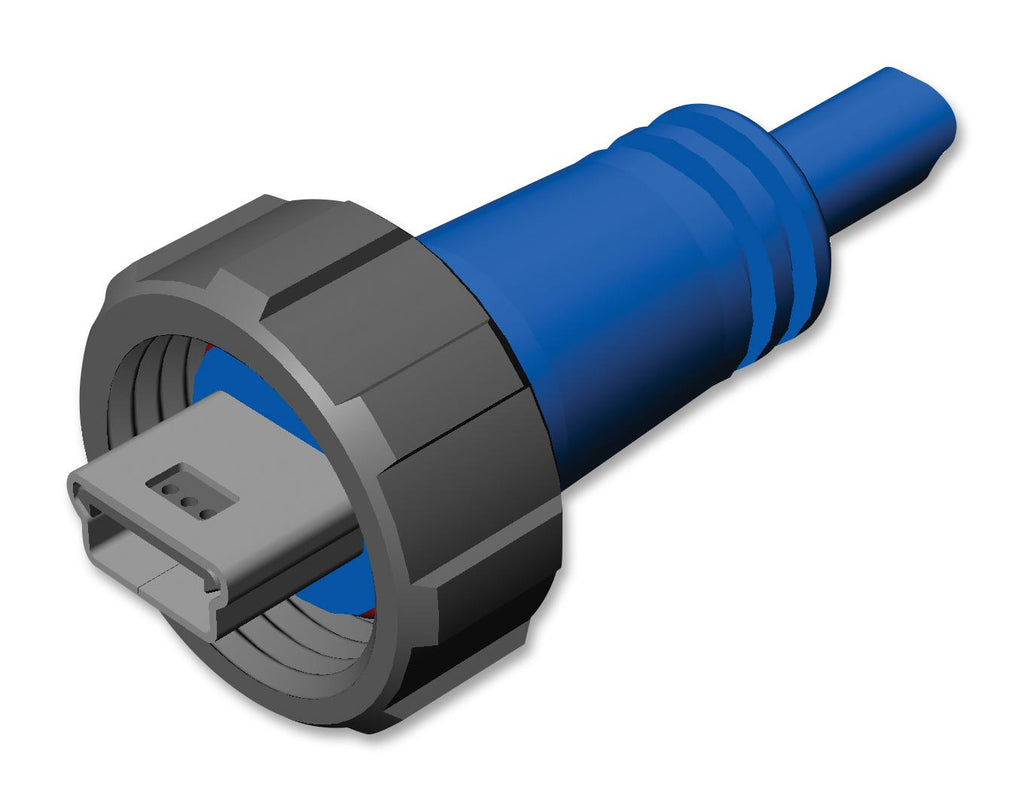

The 690-W05-260-043 is a 5-contact straight mini USB type B male E-SEAL waterproof Connector with gold flash plating over nickel contacts, nickel plated steel shell, silicone O-ring. It is compatible with all Windows versions. It is complies with USB1.0. Compatible with asynchronous and isochronous data transfer methods. It supports secure latching system for safe mating under severe vibration or shock conditions.
- 1A Current rating
- 50mΩ Maximum contact resistance
- 100MΩ Minimum insulation resistance
- IP67 Protection rating
Applications
Communications & Networking, Security, Industrial
Product details
| USB Connector Type | Mini USB Type B |
| Gender | Plug |
| No. of Positions | 5 |
| IP Rating | IP67 |
| Contact Material | - |
| SVHC | No SVHC (23-Jan-2024) |
| USB Standard | USB 1.0 |
| Connector Mounting | Panel Mount |
| Product Range | - |
| Contact Plating | - |
Other details
| Brand | EDAC |
| Part Number | 690-W05-260-043 |
| Quantity | Each |
| Drawing (313.17KB) EN | View or download |
| Technical Data Sheet (172.60KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 97999999.02 |
| 3-5 | ₹ 96999999.03 |
| 5-10 | ₹ 94999999.05 |
| 10+ | ₹ 92999999.07 |
Bulk discount will be automatically applied during checkout based on quantity.
