Product Overview

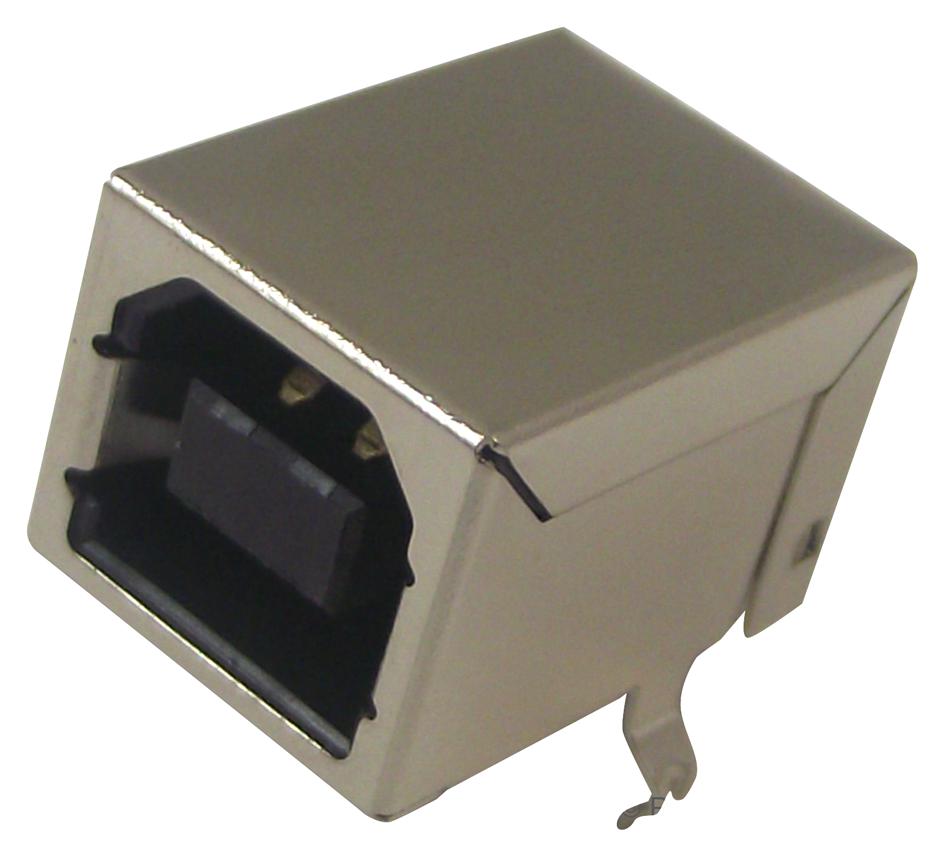

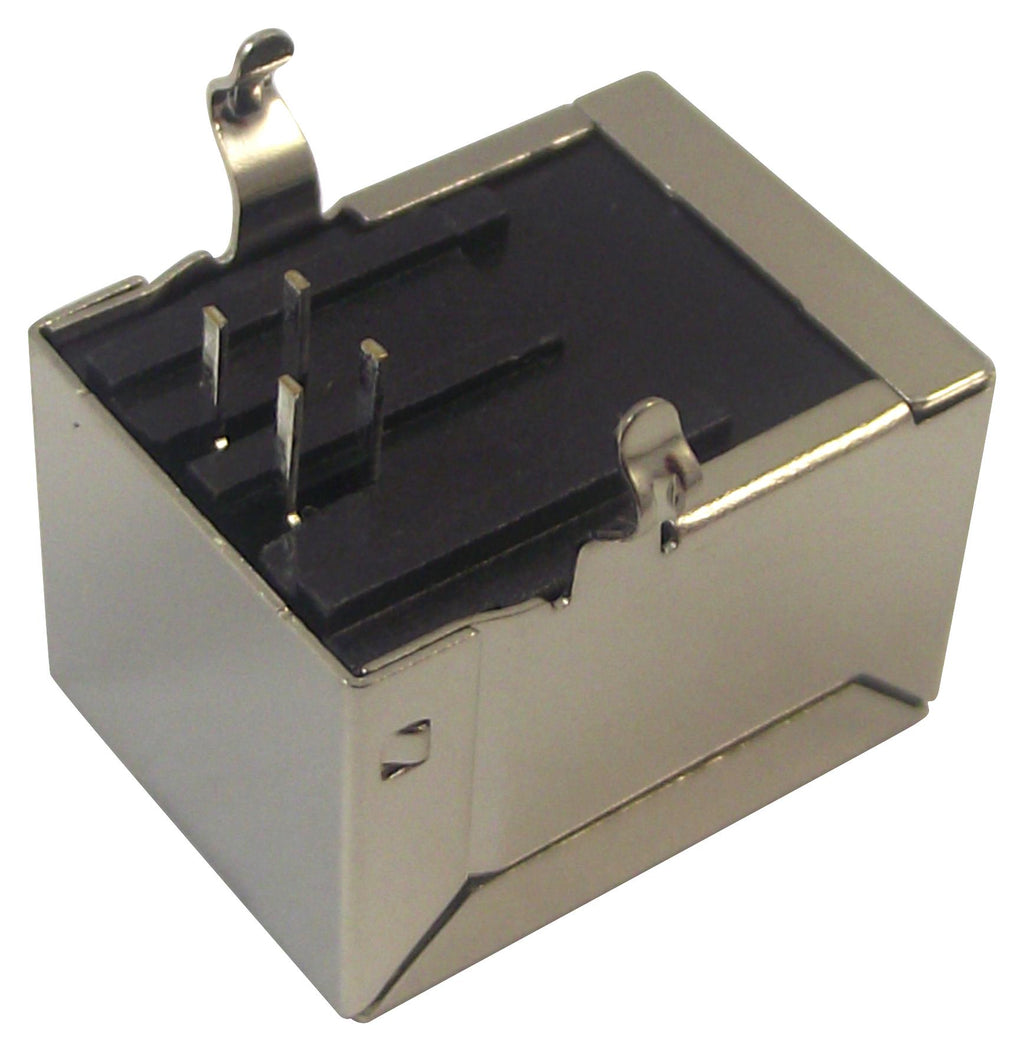

USB-B-S-RA is a USB Type B receptacle designed for USB 2.0 connectivity. This right-angle connector features 4 pins and is intended for through-hole mounting, ensuring stable attachment to PCBs. Ideal for applications requiring a compact, reliable USB connection, it provides ease of integration and robust performance in various electronic devices.
- 4 position, through hole mounting
- PBT, glass filled insulator, black insulator colour
- Phosphor bronze contacts, nickel plated copper alloy shell
- 30VAC max operating voltage, 1A max current rating
- 30mohm max contact resistance, 1,000Mohm min insulation resistance
Product details
| USB Connector Type |
USB Type B |
| Gender |
Receptacle |
| Connector Mounting |
Through Hole Mount |
| Contact Material |
Phosphor Bronze |
| Product Range |
- |
| USB Standard |
USB 2.0 |
| No. of Positions |
4Ways |
| Orientation |
Right Angle |
| Contact Plating |
Gold Flash Plated Contacts |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
MULTICOMP |
| Part Number |
USB-B-S-RA |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
