Description

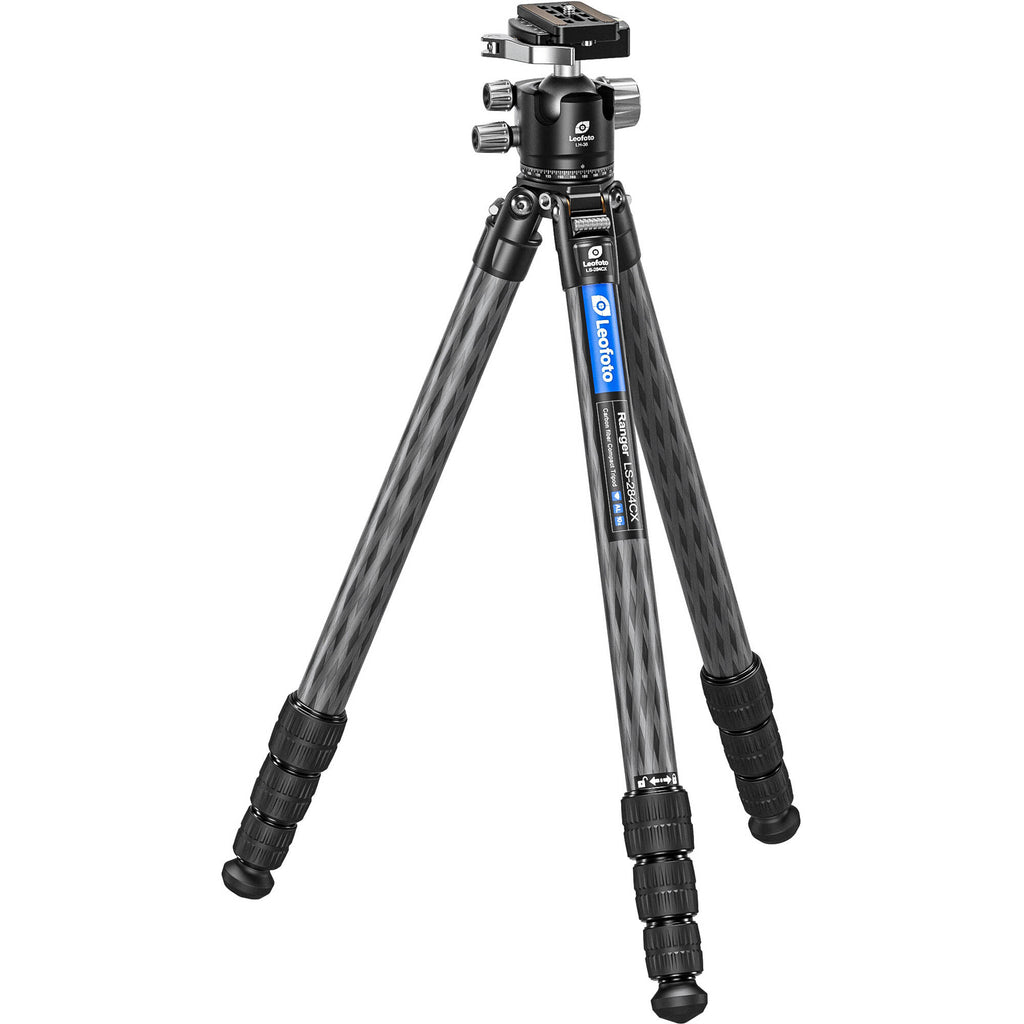

Leofoto Ranger LS-284C with LH-36R Ball Head Overview
The LS-284C X Ranger Series Carbon Fiber Tripod with LH-36LR Ball Head from Leofoto is a lightweight carbon fiber tripod. It has a load capacity of 22 lb and a maximum height of 67.8" when used with the included detachable center column. This tripod system offers three leg angle positions, weighs 4.1 lb, and folds down to 22" for easy storage and transport. The ball head has an Arca-type quick release set with a lever release mechanism.

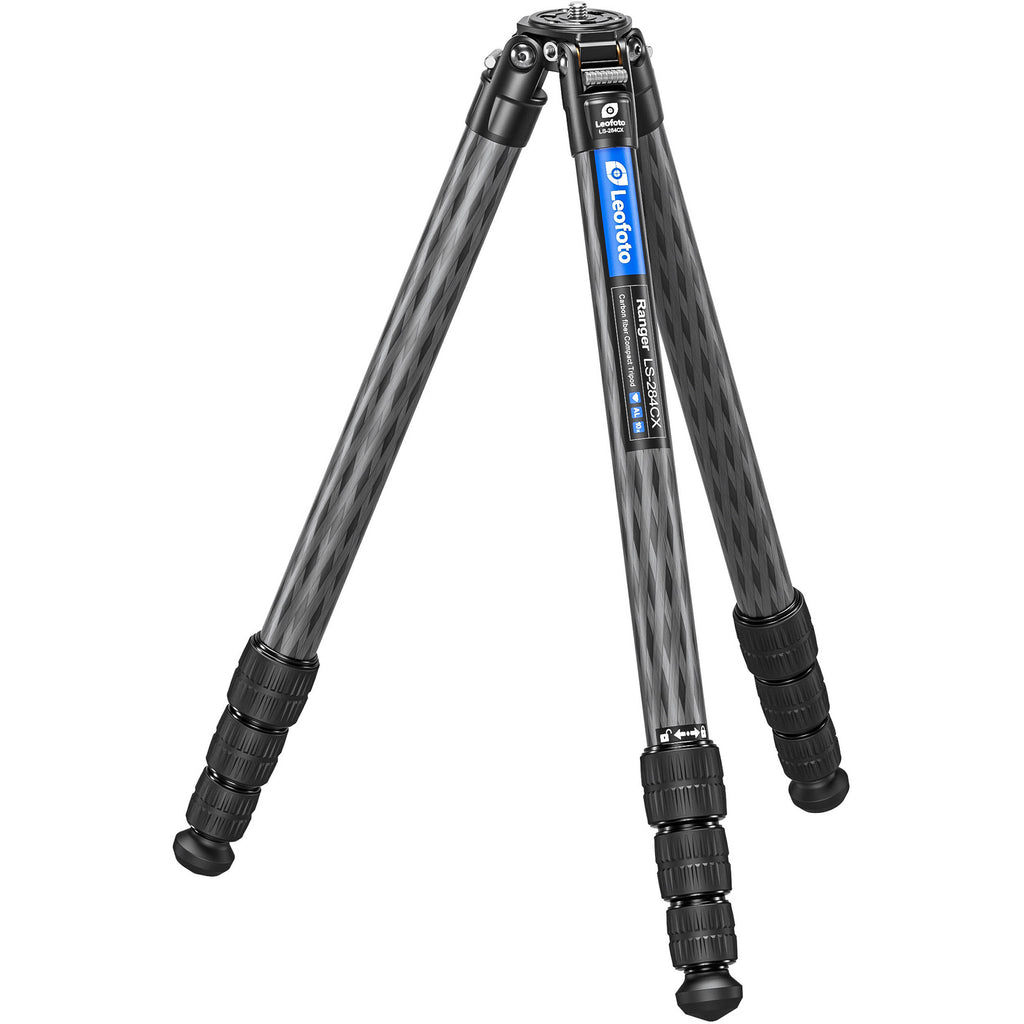

Leofoto LS-284C X Ranger Carbon Fiber Tripod
Ideal for both video and photographic capture, the four-section
LS-284C X Ranger Carbon Fiber Tripod with Leveling Base from
Leofoto features single-handed operation and a detachable center column. This lightweight carbon fiber tripod extends to a maximum of 64.6" using the column and has a flat base with a combination 3/8"-16 and 1/4"-20 screw. It features 23, 55, and 85° leg angles that can be set single-handedly.
Detachable Center Column
The included detachable center column adds 7.8 to 12.5" in height for a total maximum height of 64.6".

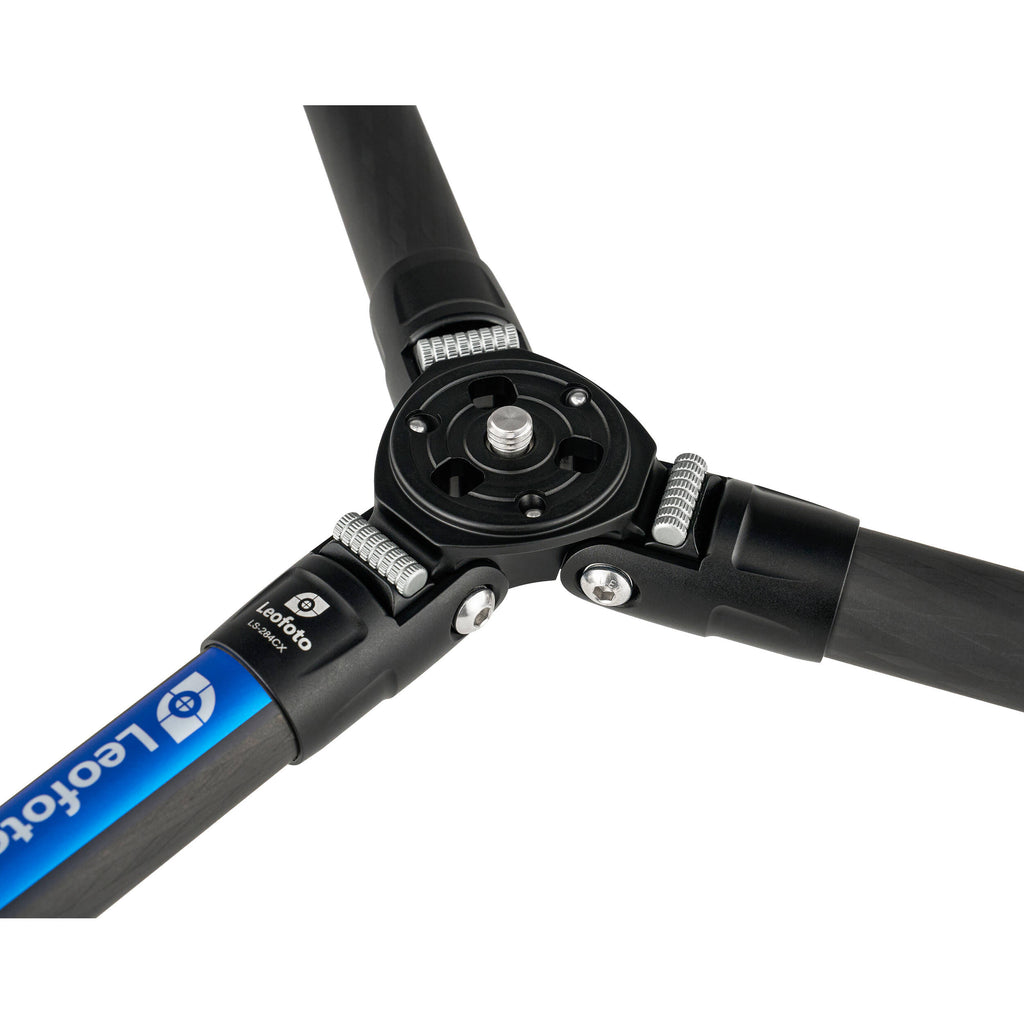

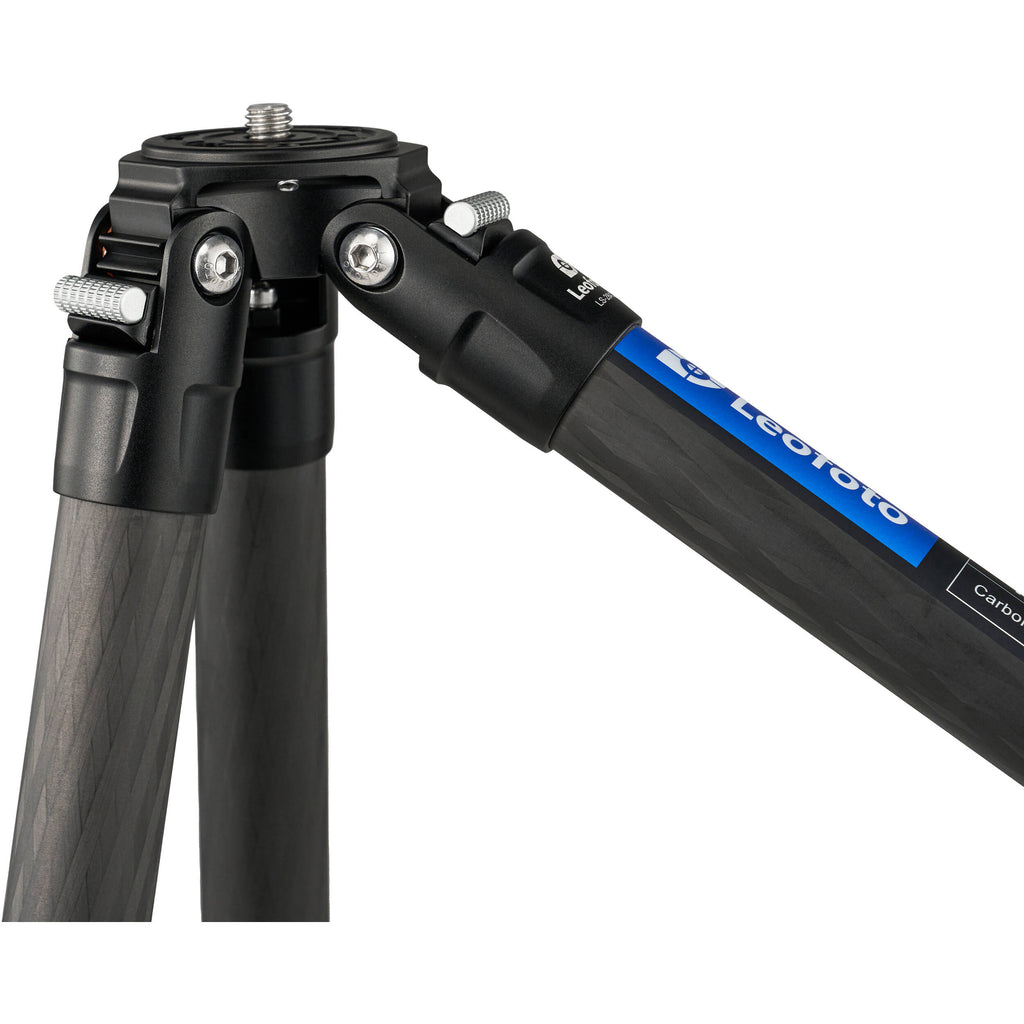

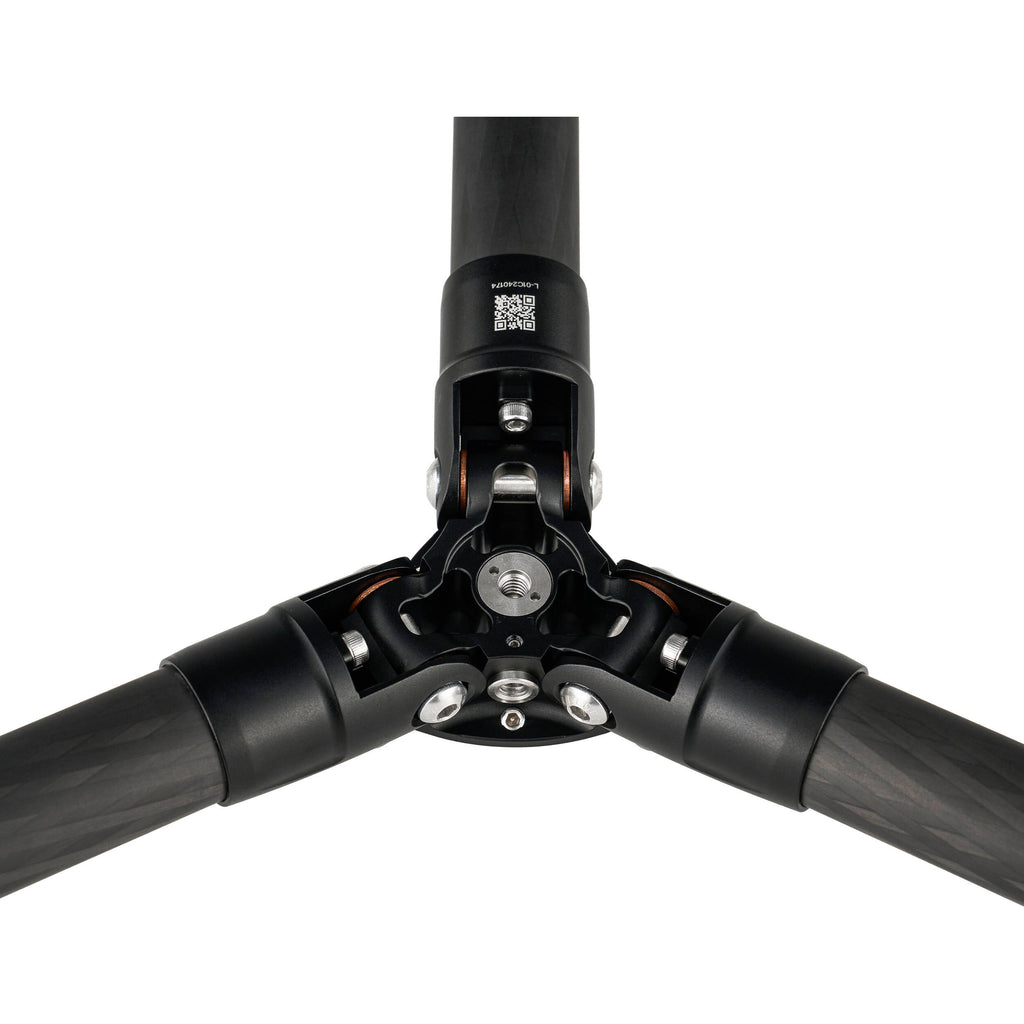

Three Leg-Angle Positions
Three leg angles of 23, 55, and 85° provide quick positioning when setting up the tripod.

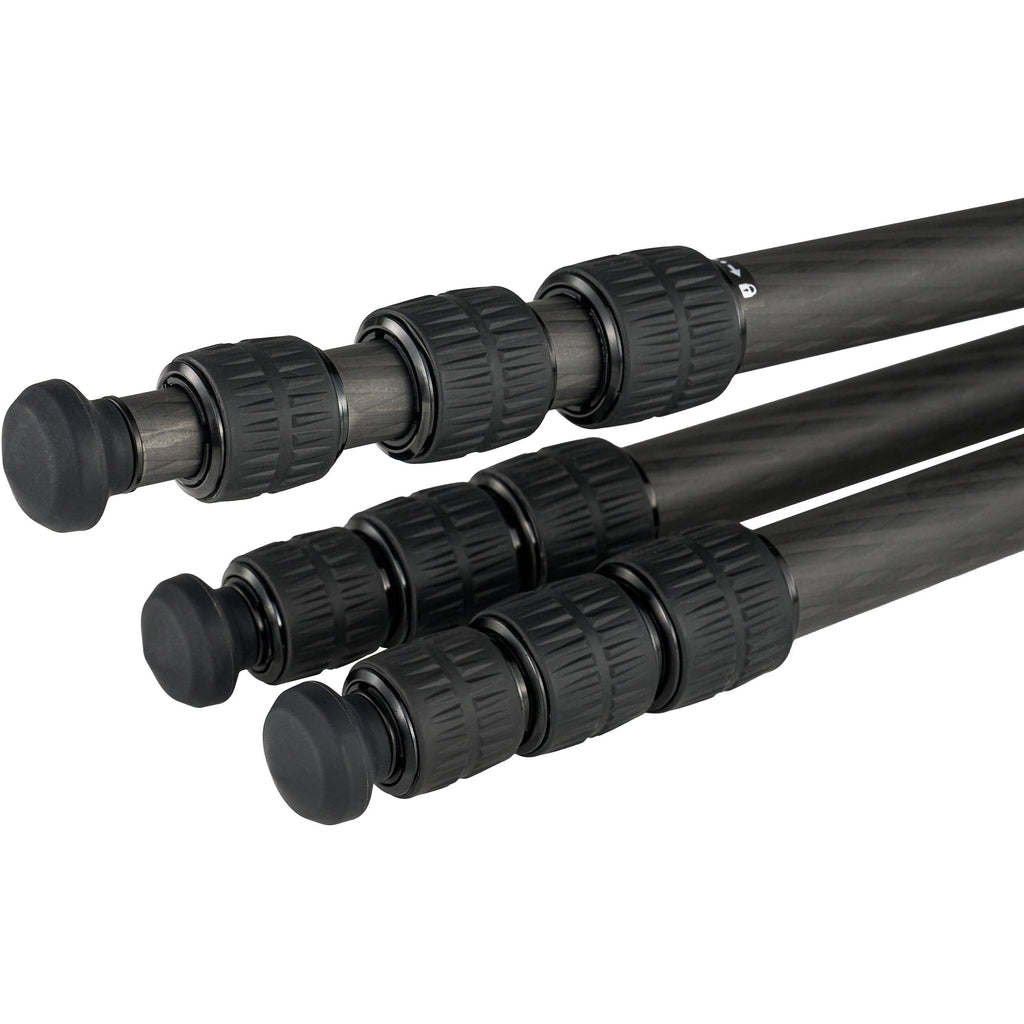

Carbon Fiber Legs
The tripod legs are built from 10-layer Toray carbon fiber to reduce vibrations and increase strength and stability.

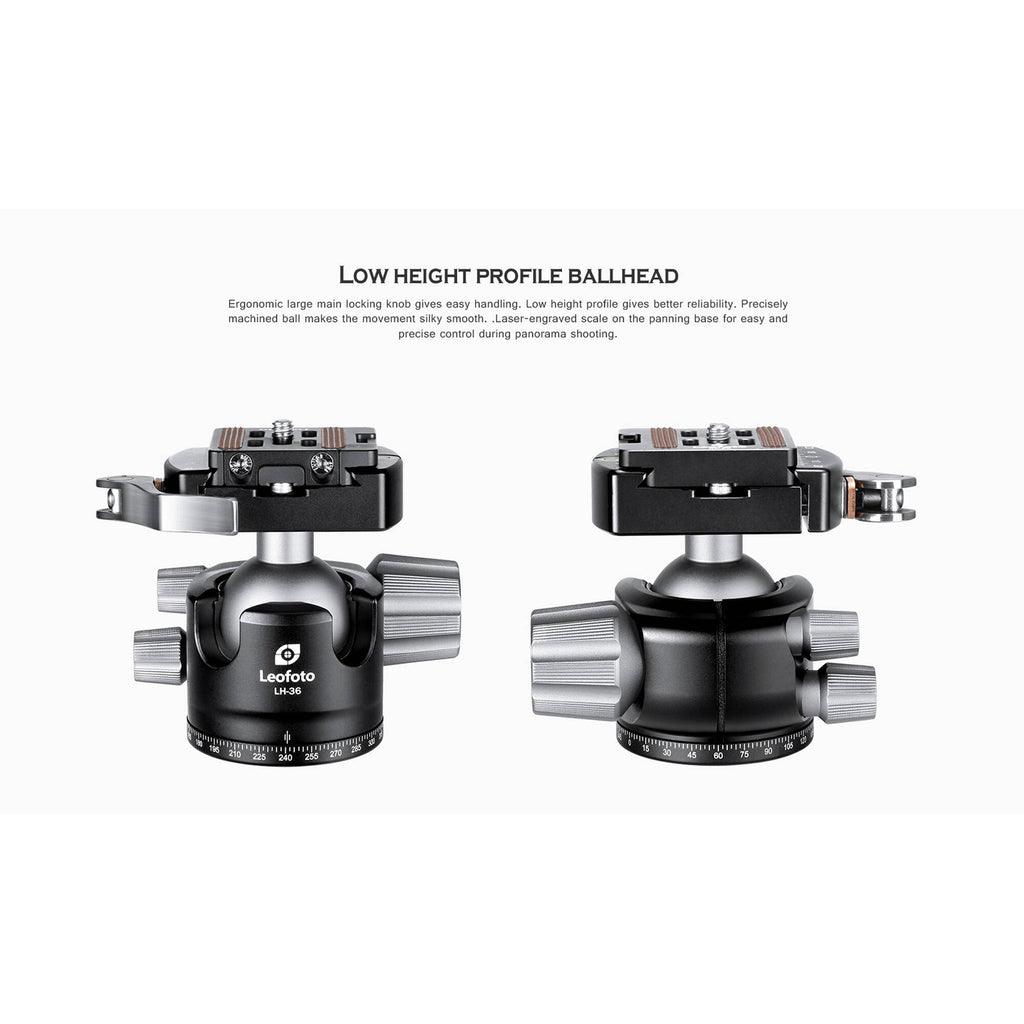

Leofoto LH-36LR Ball Head with LR-50 Lever-Release Clamp
Compact, Robust Ball Head
The compact yet robust
LH-36LR Ball Head with LR-50 Lever-Release Clamp from
Leofoto provides an Arca-type quick release system and quick release lever for fast horizon leveling. This flat-base, low-profile head supports loads up to 39.7 lb and features a single ball lock, a tension knob, and a separate pan lock. It also incorporates a bubble level and laser-engraved scales for precise leveling and positioning.
Lever Release Clamp
The lever release lets you quickly and easily lock the head with a single twist.
Items Included
- Leofoto LS-284C X Ranger Carbon Fiber Tripod
- Leofoto DC-282C Carbon Fiber Add-On Column for Tripods and Monopods
- Carrying Case
- Limited 10-Year Manufacturer Warranty
- Leofoto LH-36LR Ball Head with LR-50 Lever-Release Clamp
- Leofoto LR-50 Lever Release Clamp with QR Plate
- Allen Key
- Multi-Tool
- Pouch
- Limited Lifetime Warranty
Additional Resources
No additional resources available
Leofoto Ranger LS-284C with LH-36R Ball Head Specs
Key Specs
| Head Mount Type |
3/8"-16 Male
|
| Primary Material |
Carbon Fiber
|
| Load Capacity |
22 lb / 10 kg
|
| Maximum Working Height |
64.6" / 164 cm
|
| Minimum Working Height |
3.1" / 8 cm
|
| Closed Length |
18.7" / 47.5 cm
|
| Weight |
2.4 lb / 1.1 kg
|
Legs
| Head Mount Type |
3/8"-16 Male
|
| Primary Material |
Carbon Fiber
|
| Leg Lock |
Twist Lock
|
| Leg Sections |
4
|
| Independent Leg Spread |
Yes
|
| Leg Positions |
3 Positions
|
| Foot Features |
Removable, Spiked
|
General
| Load Capacity |
22 lb / 10 kg
|
| Maximum Working Height |
64.6" / 164 cm
|
| Center Column |
No
|
| Max Height without Center Column |
52.0" / 132 cm
|
| Minimum Working Height |
3.1" / 8 cm
|
| Closed Length |
18.7" / 47.5 cm
|
| Accessory Mounting |
1x 1/4"-20 Female Thread
|
| Bubble Level |
No
|
| Detachable Monopod |
No
|
| Spreader Support |
No
|
| Weight |
2.4 lb / 1.1 kg
|
Packaging Info
| Package Weight |
4.56 lb
|
| Box Dimensions (LxWxH) |
24.4 x 6.3 x 5.1"
|
Leofoto Ranger LS-284C with LH-36R Ball Head Specs
Key Specs
| Camera Mounting |
1/4"-20 Screw (Quick Release Plate)
|
| Head Type |
Ball Head
|
| Drag Control |
Yes
|
| Load Capacity |
39.7 lb / 18 kg
|
| Weight |
15.2 oz / 430 g
|
Head
| Camera Mounting |
1/4"-20 Screw (Quick Release Plate)
|
| Head Type |
Ball Head
|
| Base Mount |
Flat Base with 3/8"-16 Female
|
| Counter Balance |
No
|
| Dimensions |
Base Diameter: 2.0" / 52.00 mm
Height: 3.3" / 83.00 mm Camera Plate: 2.0 x 1.7" / 50.00 x 44.00 mm |
Pan & Tilt
| Drag Control |
Yes
|
| Independent Pan Lock |
Yes
|
| Independent Tilt Lock |
Yes
|
| Vertical Tilt |
+0° to -90°
|
| Lateral Tilt |
No
|
General
| Load Capacity |
39.7 lb / 18 kg
|
| Accessory Mounting |
No
|
| Bubble Level |
Yes
|
| Weight |
15.2 oz / 430 g
|
Packaging Info
| Package Weight |
1.22 lb
|
| Box Dimensions (LxWxH) |
4.5 x 4.2 x 4.1"
|
