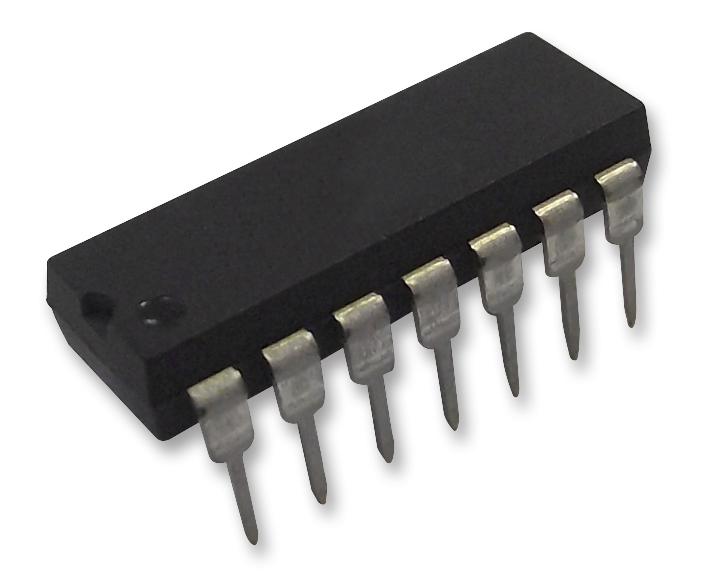

That Corporation THAT300P14-U THAT300P14-U Bipolar Transistor Array Low-Noise Quad NPN 40 V 20 mA

The THAT300P14-U is a 40V low noise matched Transistor Array with 4 matched NPN transistors. It exhibits both high speed and low noise with excellent parameter matching between transistors of the same gender. It is suited for low noise amplifier input stages and log amplifiers applications. Fabricated in a dielectrically isolated, complementary bipolar process, each transistor is electrically insulated from the others by a layer of insulating oxide (not the reverse-biased PN junctions used in conventional arrays). They exhibit inter-device crosstalk and DC isolation similar to that of discrete transistors. The resulting low collector to substrate capacitance produces a typical NPN fT of 350MHz.

• 0.8nV/â��Hz Low voltage noise

Applications

Audio

Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. Warnings This is an ESD (electrostatic discharge) sensitive device. Use ESD-preventative measures when storing and handling this device. Unused devices should be stored in conductive packaging.

Other details

Brand	THAT CORPORATION
Part Number	THAT300P14-U
Quantity	Each
Technical Data Sheet EN
