Description
The LP395Z/NOPB is a fast monolithic ultra-reliable Power Transistor with complete overload protection. This very high gain transistor has included on the chip, current limiting, power limiting and thermal overload protection, making it difficult to destroy from almost any type of overload. Thermal limiting at the chip level, a feature not available in discrete designs, provides comprehensive protection against overload. Excessive power dissipation or inadequate heat-sinking causes the thermal limiting circuitry to turn-OFF the device preventing excessive die temperature. It offers a significant increase in reliability while simplifying protection circuitry. It is especially attractive as a small incandescent lamp or solenoid driver because of its low drive requirements and blowout-proof design. It is easy to use and only a few precautions need be observed. Excessive collector to emitter voltage can destroy the LP395 as with any transistor.
- Internal thermal limiting
- Internal current and power limiting
- Directly interfaces with TTL or CMOS
- Green product and no Sb/Br
- 2µs Switching time
Applications
Industrial, Power Management
Product details
| Transistor Polarity: NPN |
| Collector Emitter Voltage Max: 36V |
| Continuous Collector Current: 100mA |
| Power Dissipation: - |

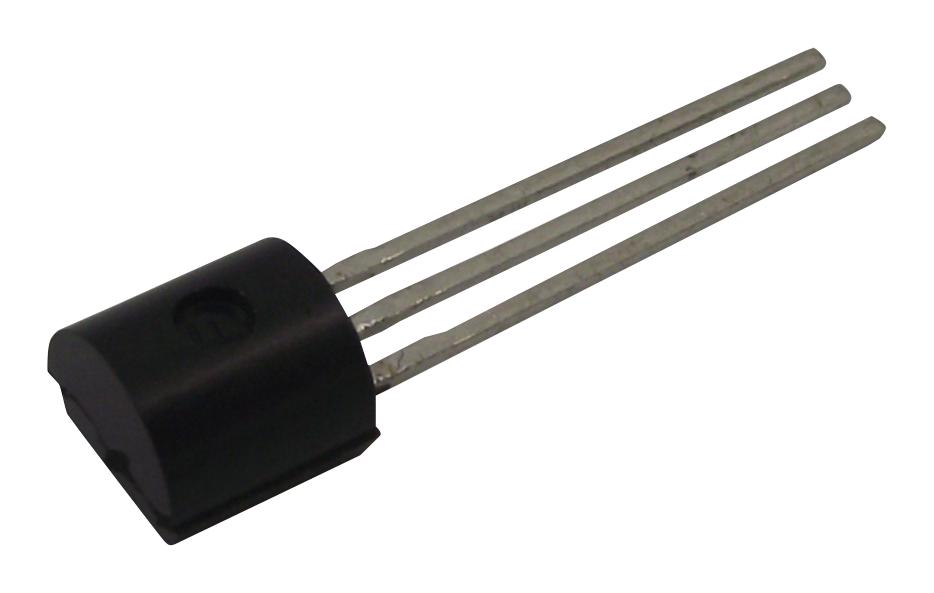

| Transistor Case Style: TO-92 |
| Transistor Mounting: Through Hole |
| No. of Pins: 3Pins |
| Transition Frequency: - |
| DC Current Gain hFE Min: - |
| Operating Temperature Max: 125°C |
| Product Range: - |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LP395Z/NOPB |
| Quantity | Each |
| Technical Data Sheet EN |  |
