Description
Product Overview
The CSD669 is a high-voltage NPN silicon transistor designed for medium-current applications, offering reliable performance in a compact TO-126-3 package. With a maximum collector-emitter voltage of 160V and a current rating of 1.5A, it is suitable for use in switching and amplification circuits where high voltage tolerance and moderate current handling are required. The CSD669 transistor is a robust and versatile NPN component, ideal for high-voltage and medium-current applications. Its reliable performance, compact TO-126-3 package, and broad operating temperature range make it a valuable choice for various electronic circuits and systems.
- Collector-Emitter Voltage (Vceo): 160V
- Collector-Base Voltage (Vcbo): 160V
- Emitter-Base Voltage (Vebo): 5V
- Collector Current (Ic): 1.5A
- Base Current (Ib): Dependent on specific application and circuit design
- Power Dissipation (Pd): Typically up to 2W, depending on cooling and mounting conditions
- DC Current Gain (hFE): Typically between 50 and 150 at Ic = 1A, Vce = 10V (varies with specific part and operating conditions)
- Package Type: TO-126-3
- Pin Configuration: 3 Pins (Collector, Base, Emitter)
- Mounting Style: Through-Hole
- Package Dimensions: Compact and efficient for space-constrained applications
- Junction Temperature (Tj): -55°C to +150°C
- Thermal Resistance, Junction to Ambient (RθJA): Approximately 100°C/W (varies with heat sinking and mounting conditions)
Applications
Audio, Power Supplies, DC/DC Converters, Motor Drive & Control, Signal Processing
Product details
| Transistor Polarity | NPN |
| Continuous Collector Current | 1.5A |
| Transistor Case Style | TO-126 |
| No. of Pins | 3Pins |
| DC Current Gain hFE Min | 60hFE |
| Product Range | Multicomp Pro Bipolar Transistor PNP |
| MSL | - |
| Collector Emitter Voltage Max | 160V |
| Power Dissipation | 20W |
| Transistor Mounting | Through Hole |
| Transition Frequency | 140MHz |
| Operating Temperature Max | 150°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MULTICOMP PRO |
| Part Number | CSD669 |
| Quantity | Each |
| Technical Data Sheet (2.56MB) EN | View or download |

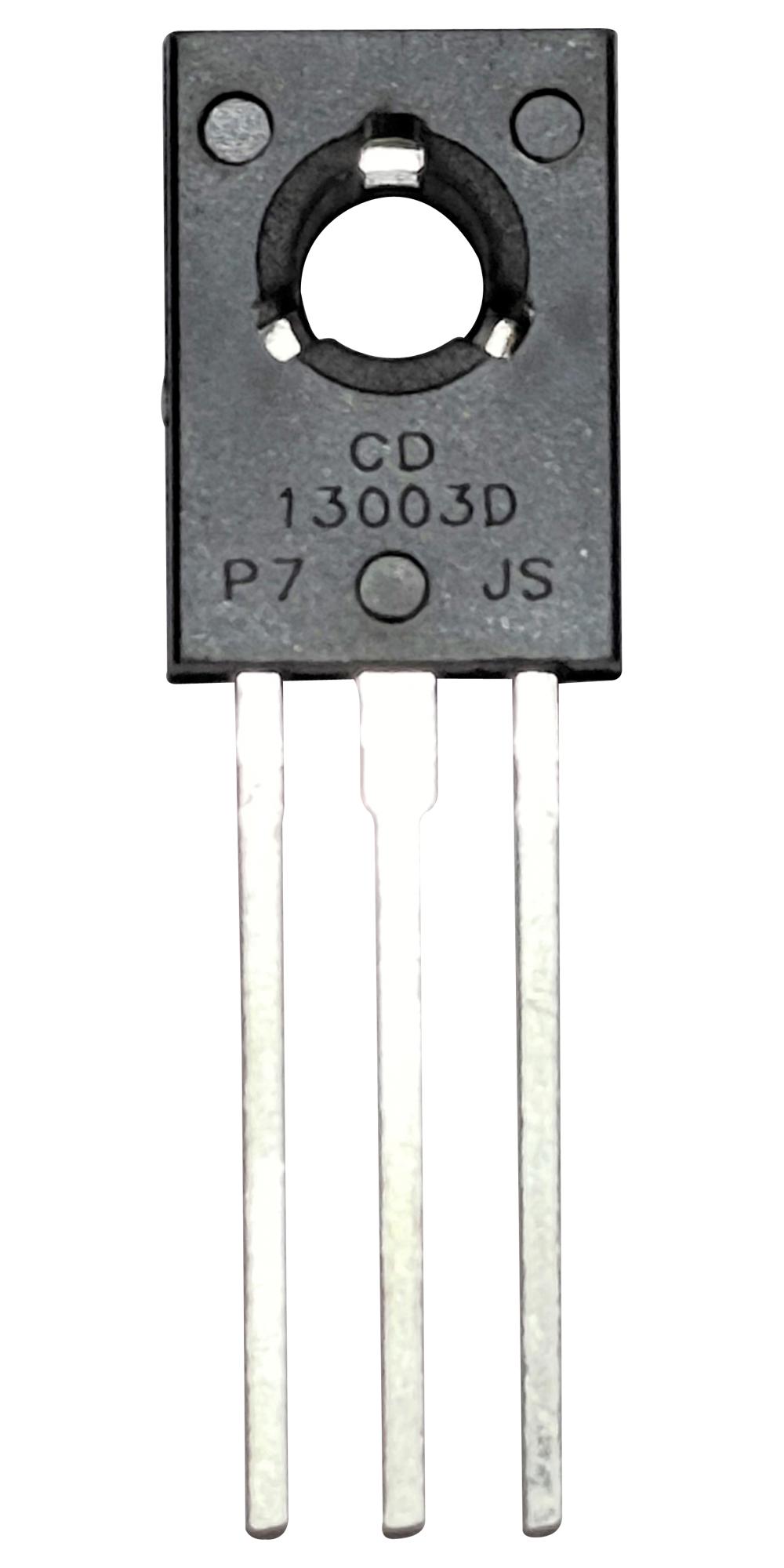

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
