Product Overview
NEXPERIA PRMH13Z Bipolar Pre-Biased / Digital Transistor, Dual NPN, 50 V, 100 mA, 4.7 kohm, 47 kohm
Product details
| Transistor Polarity |
Dual NPN |
| Collector Emitter Voltage V(br)ceo |
50V |
| Collector Emitter Voltage Max PNP |
- |
| Continuous Collector Current |
100mA |
| Base Emitter Resistor R2 |
47kohm |
| Transistor Case Style |

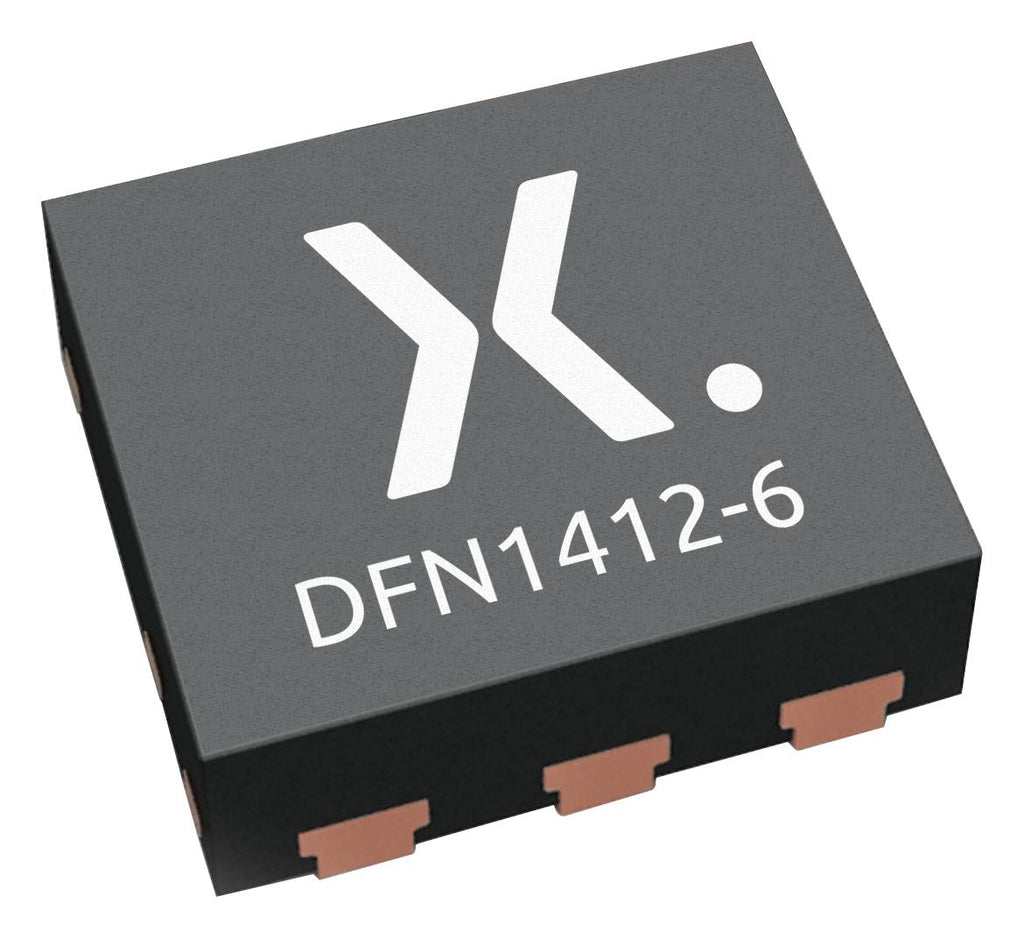

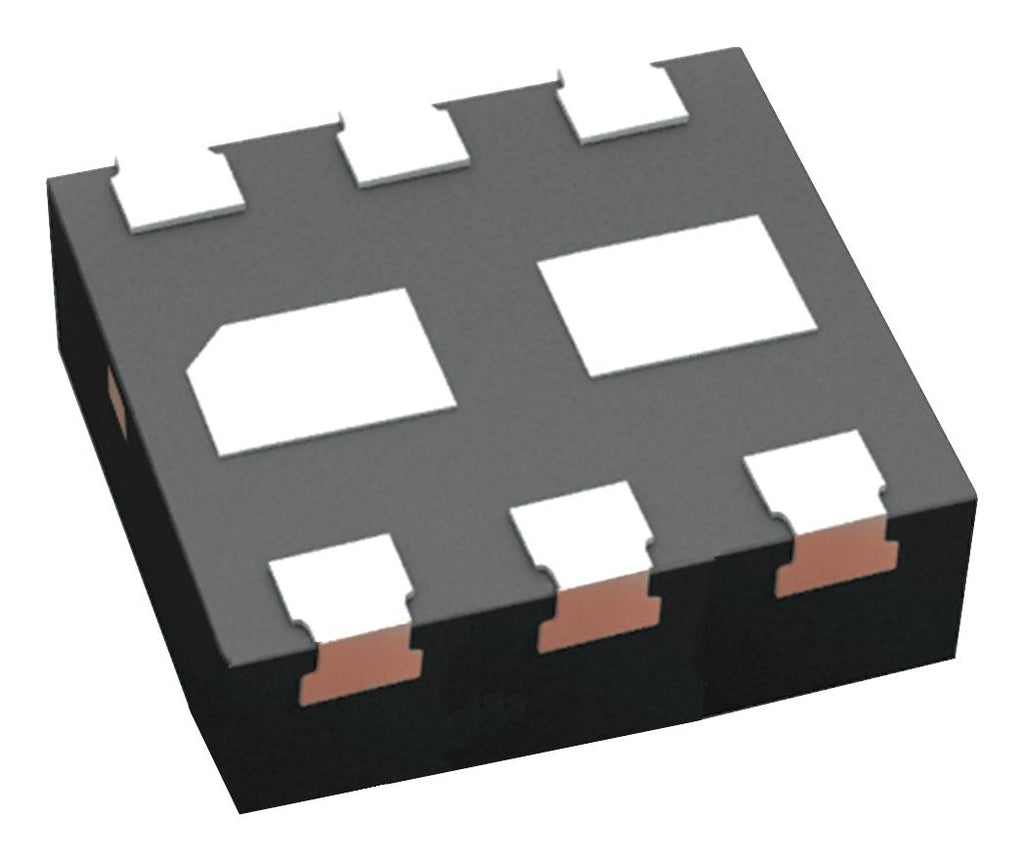

DFN1412 |
| No. of Pins |
6 Pin |
| Power Dissipation |
480mW |
| DC Current Gain hFE Min |
100hFE |
| Qualification |
AEC-Q101 |
| MSL |
MSL 1 - Unlimited |
| Digital Transistor Polarity |
Dual NPN |
| Collector Emitter Voltage Max NPN |
50V |
| Continuous Collector Current Ic |
100mA |
| Base Input Resistor R1 |
4.7kohm |
| Resistor Ratio, R1 / R2 |
0.1(Ratio) |
| RF Transistor Case |
DFN1412 |
| Transistor Mounting |
Surface Mount |
| Operating Temperature Max |
150°C |
| Product Range |
- |
| Automotive Qualification Standard |
AEC-Q101 |
| SVHC |
No SVHC (25-Jun-2025) |
