Description

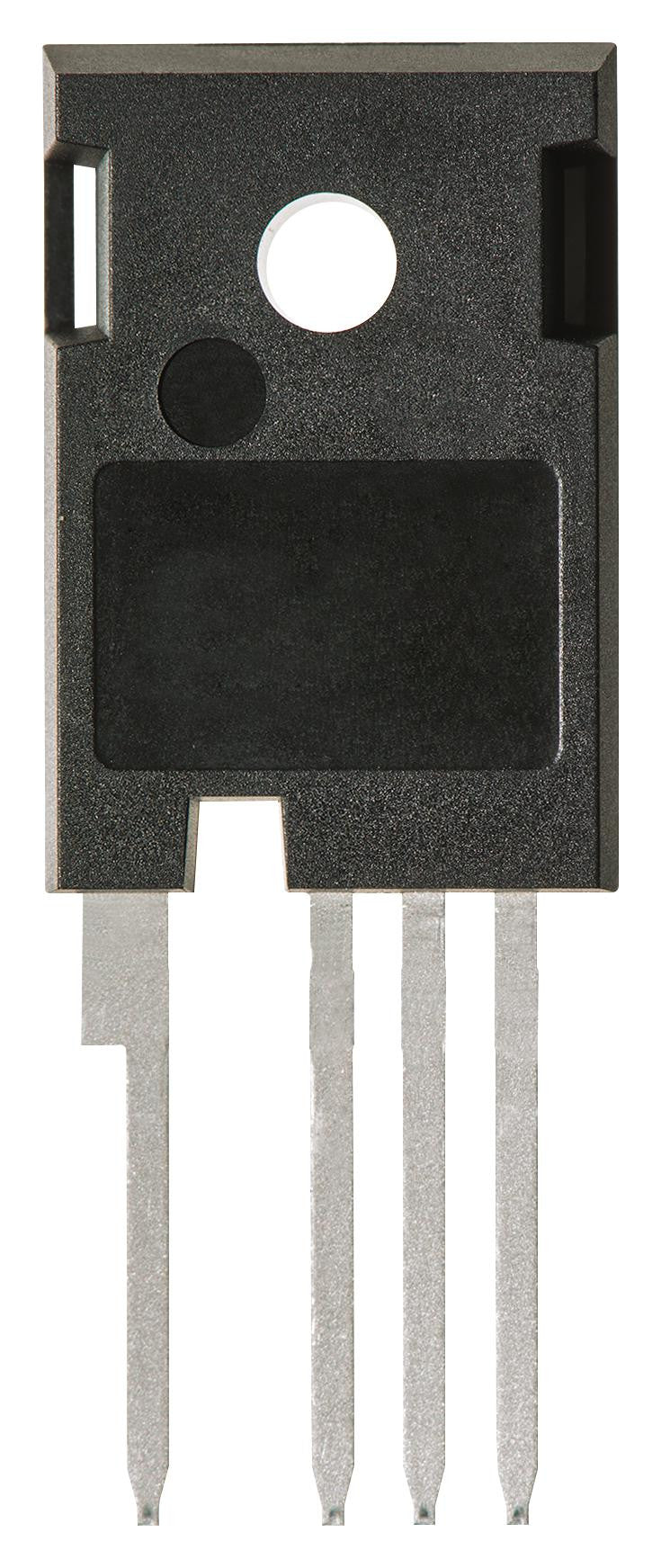

This is a Power MOSFET, N Channel, 50 A, 600 V, 0.034 ohm, 10 V, 3.5 V product from INFINEON with the model number IPZ60R040C7XKSA1
Product details
| Drain Source Voltage Vds | 600V |
| Transistor Case Style | TO-247 |
| Transistor Polarity | N Channel |
| Power Dissipation Pd | 227W |
| Threshold Voltage Vgs | 3.5V |
| Product Range | CoolMOS C7 Series |
| Rds(on) Test Voltage Vgs | 10V |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 50A |
| No. of Pins | 4Pins |
| On Resistance Rds(on) | 0.034ohm |
| MSL | - |
Other details
| Brand | INFINEON |
| Part Number | IPZ60R040C7XKSA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
