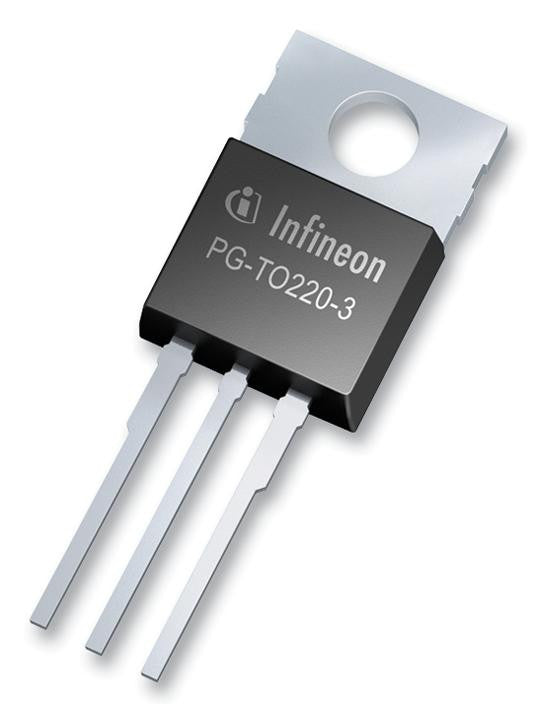

INFINEON IPP040N06NAKSA1 MOSFET Transistor, N Channel, 80 A, 60 V, 0.0036 ohm, 10 V, 2.8 V

This is a MOSFET Transistor, N Channel, 80 A, 60 V, 0.0036 ohm, 10 V, 2.8 V product from INFINEON with the model number IPP040N06NAKSA1

Product details

Transistor Polarity	N Channel
Continuous Drain Current Id	80A
Drain Source Voltage Vds	60V
On Resistance Rds(on)	0.0036ohm
Rds(on) Test Voltage Vgs	10V
Threshold Voltage Vgs	2.8V
Power Dissipation Pd	107W
Transistor Case Style	TO-220
No. of Pins	3Pins
Operating Temperature Max	175°C
Product Range	OptiMOS Series
Automotive Qualification Standard	-
MSL	-

Other details

Brand	INFINEON
Part Number	IPP040N06NAKSA1
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
