INFINEON IPA50R280CEXKSA2 MOSFET Transistor, N Channel, 18.1 A, 500 V, 0.25 ohm, 13 V, 3 V

This is a MOSFET Transistor, N Channel, 18.1 A, 500 V, 0.25 ohm, 13 V, 3 V product from INFINEON with the model number IPA50R280CEXKSA2

Product details

Transistor Polarity	N Channel
Continuous Drain Current Id	18.1A
Drain Source Voltage Vds	500V
On Resistance Rds(on)	0.25ohm
Rds(on) Test Voltage Vgs	13V
Threshold Voltage Vgs	3V
Power Dissipation Pd	30.4W

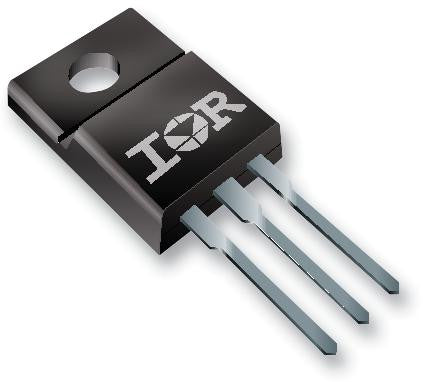

Transistor Case Style	TO-220FP
No. of Pins	3Pins
Operating Temperature Max	150°C
Product Range	CoolMOS CE Series
Automotive Qualification Standard	-
MSL	-

Other details

Brand	INFINEON
Part Number	IPA50R280CEXKSA2
Quantity	Each
Technical Data Sheet EN
Simulation Model EN
Application Note EN
