Description

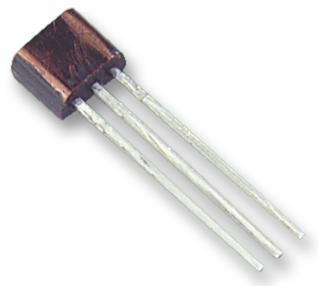

The ZTX658 is a NPN silicon planar medium power high voltage Bipolar Transistor offers 500mA continuous collector current and 400V collector-base voltage. It is used in telephone dialler circuits.
- -55 to 200°C Operating temperature range
Applications
Communications & Networking, Industrial, Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Transistor Polarity: NPN |
| Collector Emitter Voltage Max: 400V |
| Continuous Collector Current: 500mA |
| Power Dissipation: 1W |
| Transistor Case Style: E-Line |
| Transistor Mounting: Through Hole |
| No. of Pins: 3Pins |
| Transition Frequency: 50MHz |
| DC Current Gain hFE Min: 50hFE |
| Operating Temperature Max: 200°C |
| Product Range: - |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | DIODES INC. |
| Part Number | ZTX658 |
| Quantity | Each |
| Technical Data Sheet EN |  |
