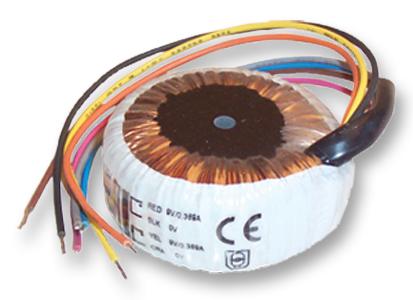

The Multicomp MCFM series are miniature open style toroidal transformers with flying leads. These transformers have a very high quality construction and low radiated magnetic field, suitable for sensitive electronics. MCFM series features a single primary winding tapped at 115VAC and 230VAC 50/60Hz and dual secondary windings. Secondary windings can be connected in series or parallel or used independently.
- Power rating ranges from 1.6VA to 7.0VA
- Maximum ambient temperature of 40°C
- Efficiency up to 80%
- Double insulated primary leads
- Resin filled centre with M4 clear mounting hole
- Flexible lead outs can be trimmed to any length without the need of enamel removal
- Suitable for use in low power equipment
- Designed, tested and manufactured in accordance with EN60742, EN60065 and EN60950
- 100% electrical and flash tested
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Power Management
Product details
| Power Rating |
7VA |
| Primary Voltages |
115V, 230V |
| Secondary Voltages |
2 x 22V |
| Winding Type |
Single Primary, Dual Secondary |
| Toroid Centre |
Centre Potted |
| Transformer Mounting |
Panel Mount |
| Transformer Terminals |
Wire Leaded |
| Outer Diameter |
51mm |
| Height |
24mm |
| Secondary Current Nom |
159mA |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCFM70/22 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
