Description

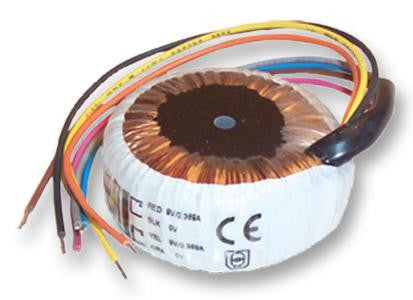

The Multicomp MCFM series are miniature open style toroidal transformers with flying leads. These transformers have a very high quality construction and low radiated magnetic field, suitable for sensitive electronics. MCFM series features a single primary winding tapped at 115VAC and 230VAC 50/60Hz and dual secondary windings. Secondary windings can be connected in series or parallel or used independently.
- Power rating ranges from 1.6VA to 7.0VA
- Maximum ambient temperature of 40�C
- Efficiency up to 80%
- Double insulated primary leads
- Resin filled centre with M4 clear mounting hole
- Flexible lead outs can be trimmed to any length without the need of enamel removal
- Suitable for use in low power equipment
- Designed, tested and manufactured in accordance with EN60742, EN60065 and EN60950
- 100% electrical and flash tested
Applications
Industrial, Power Management
Product details
| Power Rating | 3.2VA |
| Transformer Mounting | Panel |
| Secondary Current Nom | 133mA |
| Product Range | - |
| Secondary Voltages | 2 x 12V |
Other details
| Brand | MULTICOMP |
| Part Number | MCFM32/12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
