Description
Product Overview

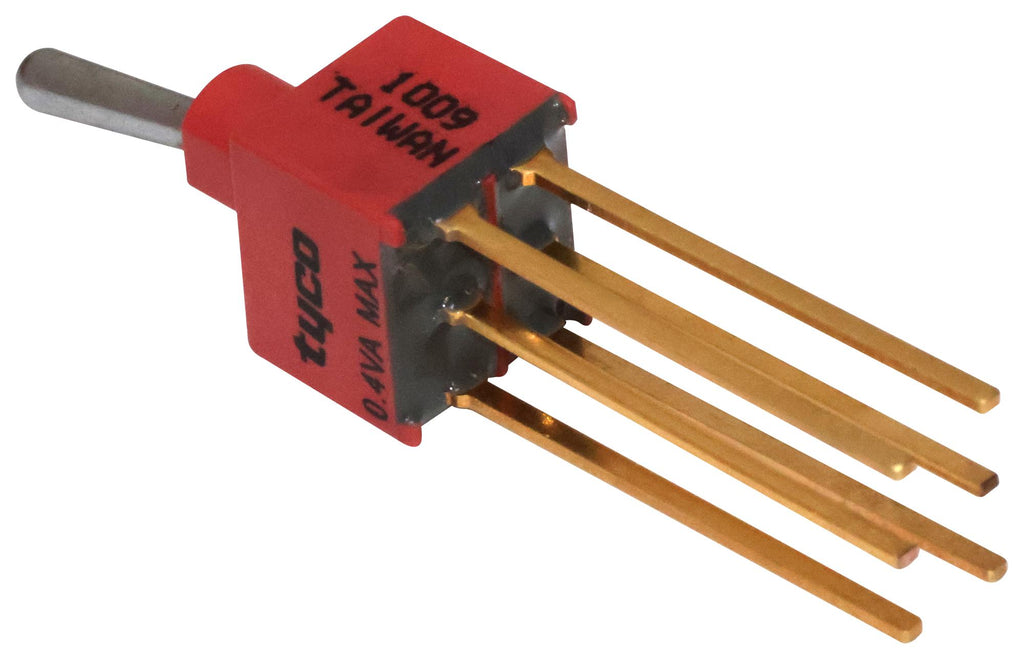

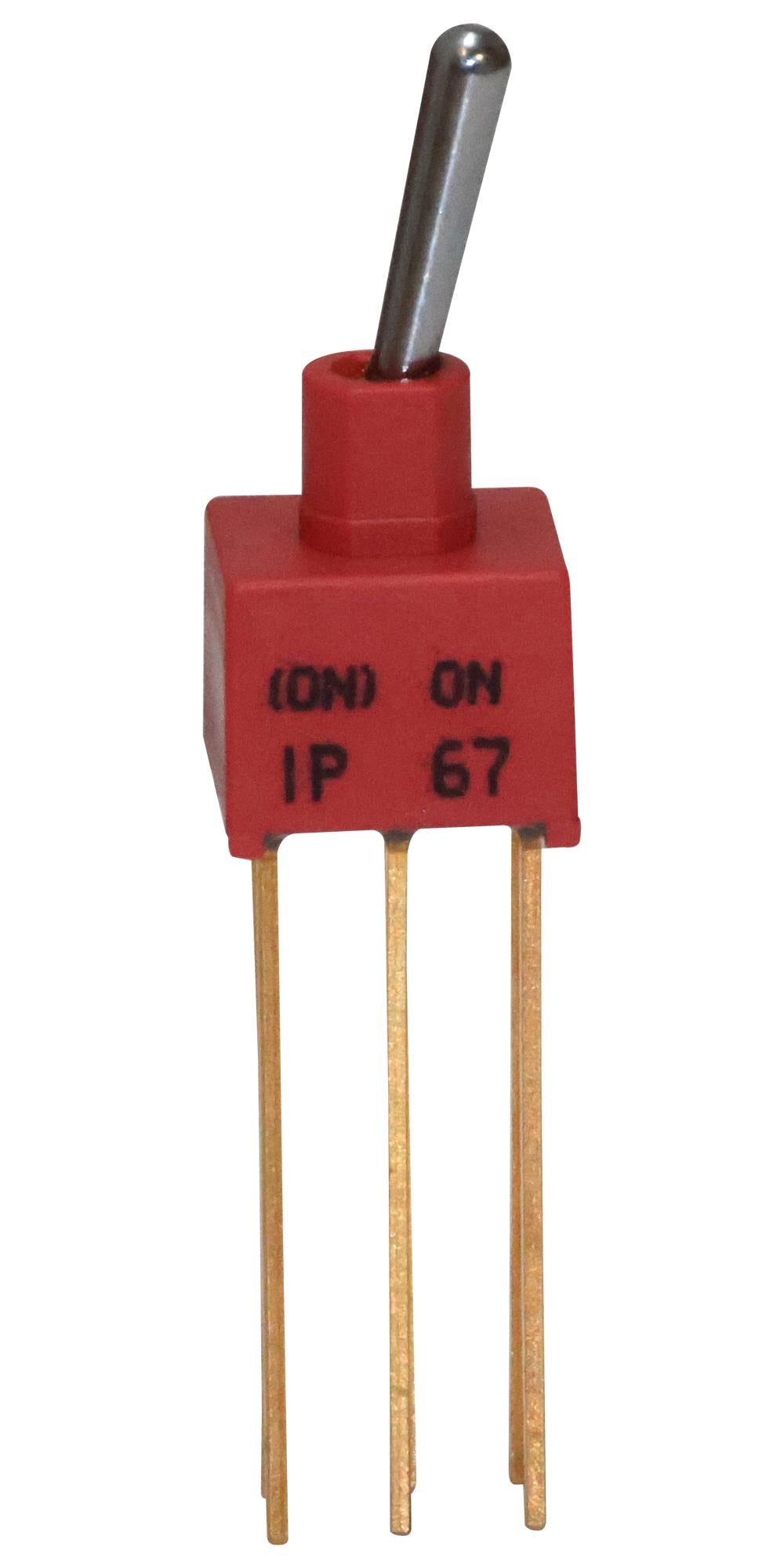

2-1825143-5 is a Gemini AE series sealed, baton long toggle switch. This device is well suited for designs requiring human interface via toggle or rocker-style switch, including: industrial equipment, audio-visual equipment, outdoor concert and lighting equipment, medical, instrumentation, and communication equipment.
- Epoxy sealed terminals, stainless steel frame with brass tin plated solder support
- Hardware included, meets IP67 requirements
- Double pole - double throw configuration (pole-throw)
- 1000Mohm insulation resistance
- 10mohm contact resistance
- 1000VAC maximum dielectric withstanding voltage
- Nickel actuator finish, copper contact base, gold switch contact plating
- 12.7mm toggle length
- UL 94V-0 UL flammability rating
- Operating temperature range from -30°C to +85°C
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 2-1825143-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
