| ₹ 1511.9 includes GST and import duties. | |
| B2B customers can avail ₹ 230.56 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

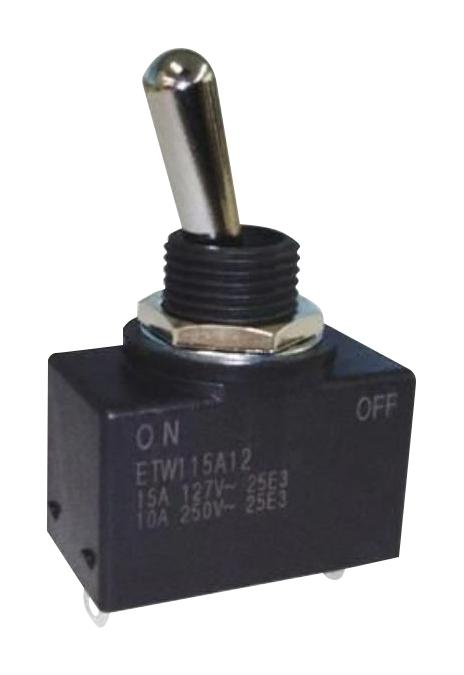

ETW115A12 is an ETW series, 1-pole, environmentally sealed standard toggle switch. Its high dust and water-proof properties ensure high reliability even in tough situations. Applications suitable for the general equipment market, construction machinery, power generation systems, kitchen equipment, and machine tools.
- Front panel seal: IP67 of IEC60529, behind panel seal: IP60 of IEC60529
- Area around the terminal is sealed with adhesive
- 15A current capacity
- Optimized structural design provides a light operating feel
- 1,500V AC 1minute dielectric strength
- 100Mohm min. (500V DC) insulation resistance
- 25,000 cycles electrical life
- Operating temperature range from -10 to +70°C
- Epoxy sealed terminals, cULus recognized
- ON-OFF switching position
Product details
Other details
| Brand | NIDEC COMPONENTS |
| Part Number | ETW115A12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1481.66 |
| 3-5 | ₹ 1466.54 |
| 5-10 | ₹ 1436.31 |
| 10+ | ₹ 1406.07 |
Bulk discount will be automatically applied during checkout based on quantity.
