Description
Product Overview

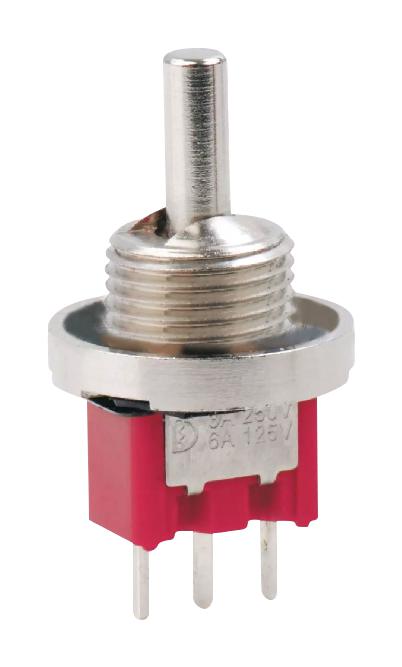

MP1FD2T2B6M2QES-5 is a miniature toggle switch.
- On-None-(On) switch operation, PC mount switch terminals
- 100,000 make-and-break cycles DC 10V and 0.1mA mechanical life
- 10mohm max contact resistance, 500V / 500Mohm min insulation resistance
- 1,000Vrms min at sea level dielectric strength
- Diallyl phthalate (DAP) (UL94V-0) case, stainless steel housing, brass terminal/contact
- Silver contact plating and terminal plating
- 6A at 125VAC/3A at 250VAC or 28VDC rating
- Operating temperature range from -40°C to 85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP1FD2T2B6M2QES-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
