Description

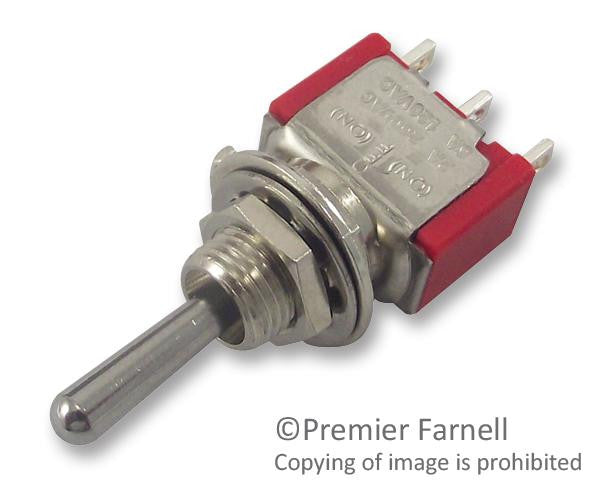

The 1MS4 series from Multicomp are toggle switches. These are single pole, sealed, miniature switches available in various terminations.
- Maximum contact resistance of 10mohm
- Operating temperature range -30°C to 85°C
- Minimum insulation resistance of 1000Mohm
- Contact rating of 5A at 120VAC or 28VDC for silver contacts
- (On)-Off-(On) switch operation
- Brass, chrome plated actuator
- Brass, nickel plated bushing
- Silver or gold plated contacts based on ordering
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Voltage DC Nom | 28V |
| Illumination | Non Illuminated |
| Switch Operation | (On)-Off-(On) |
| Contact Voltage AC Nom | 120V |
| Switch Mounting | Panel |
| Switch Terminals | Solder |
| Contact Configuration | SPDT |
| Product Range | 1MS4 Series |
| Contact Current Max | 5A |
Other details
| Brand | MULTICOMP |
| Part Number | 1MS4T1B5M1QE |
| Quantity | Each |
| Technical Data Sheet EN |  |
