| ₹ 11978.85 includes GST and import duties. | |
| B2B customers can avail ₹ 1826.77 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

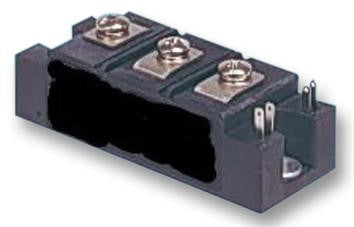

This is a THYRISTOR MODULE, 160A, 1600V product from VISHAY with the model number VS-VSKT162/16PBF
Product details
| Peak Repetitive Off-State Voltage, Vdrm | 1.6kV |
| On State RMS Current IT(rms) | 355A |
| Operating Temperature Max | 125�C |
| SCR Module Type | Series Connected - SCRs |
| Gate Trigger Voltage Max Vgt | 2.5V |
| Product Range | - |
| Holding Current Max Ih | 200mA |
| Gate Trigger Current Max, Igt | 150mA |
| Peak Non Rep Surge Current Itsm 50Hz | 4.87kA |
| Current It av | 160A |
Other details
| Brand | VISHAY |
| Part Number | VS-VSKT162/16PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11739.27 |
| 3-5 | ₹ 11619.48 |
| 5-10 | ₹ 11379.91 |
| 10+ | ₹ 11140.33 |
Bulk discount will be automatically applied during checkout based on quantity.
