Description

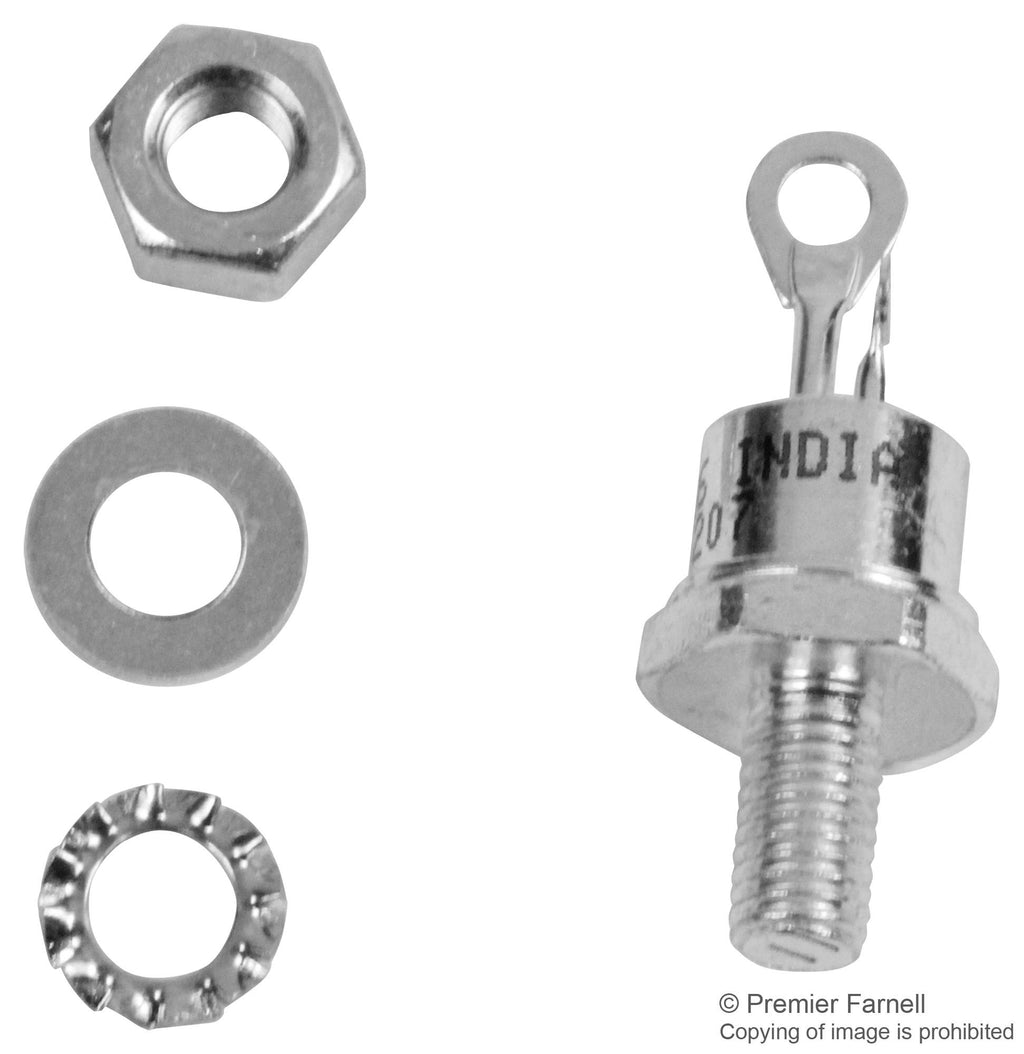

This is a SCR THYRISTOR, 22A, 1.2KV, TO-208AA product from VISHAY with the model number VS-2N5207
Product details
| Peak Repetitive Off-State Voltage, Vdrm | 1.2kV |
| On State RMS Current IT(rms) | 35A |
| Operating Temperature Max | 125°C |
| SCR Module Type | Single SCR |
| Gate Trigger Voltage Max Vgt | 2V |
| Product Range | - |
| Holding Current Max Ih | 200mA |
| Gate Trigger Current Max, Igt | 40mA |
| Peak Non Rep Surge Current Itsm 50Hz | 285A |
| Current It av | 22A |
Other details
| Brand | VISHAY |
| Part Number | VS-2N5207 |
| Quantity | Each |
| Technical Data Sheet EN |  |
