Description

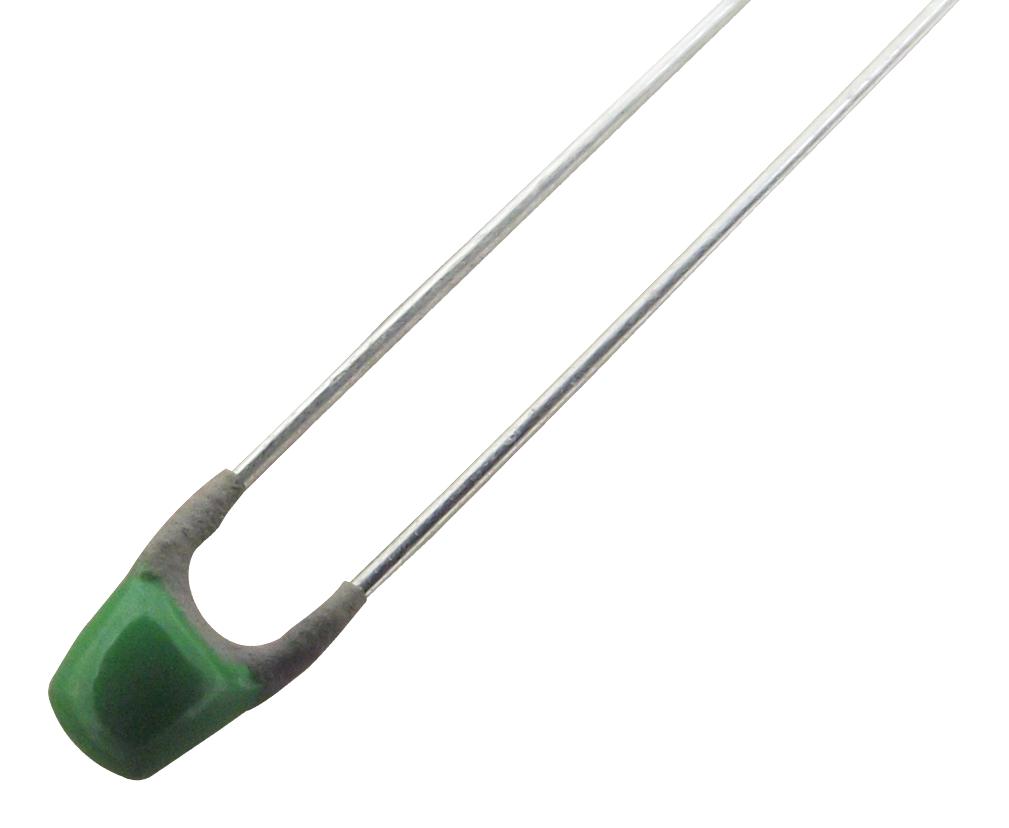

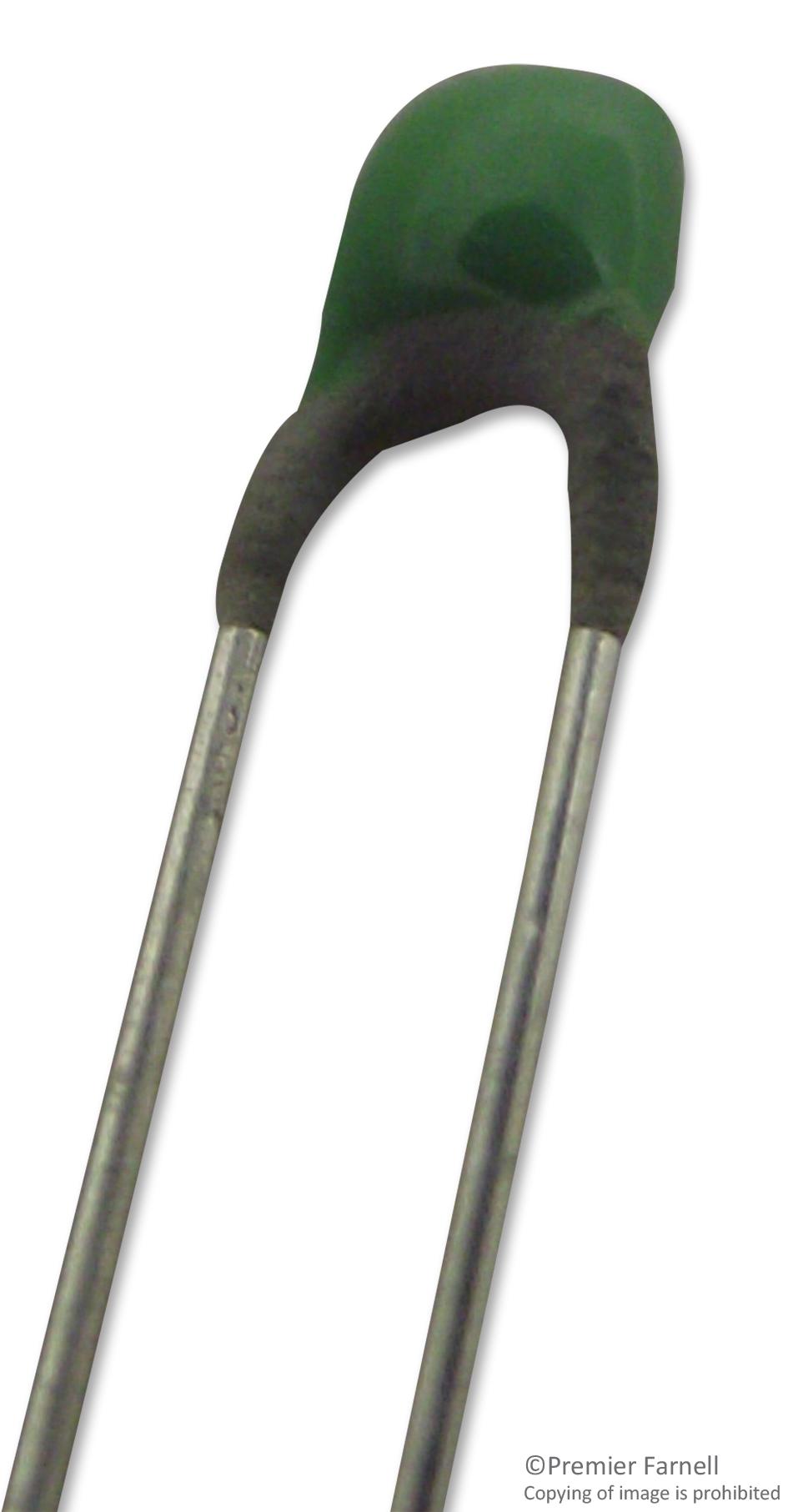

The NTCLE203E3 series from Vishay are radial leaded, accuracy line NTC thermistors. These device consists of a chip with two tinned nickel leads. The thermistors are coated and colour band marked. Typical applications include temperature measurement, sensing and control and for on-board sensing or accurate remote sensing applications.
- Accurate over a wide temperature range
- High stability over a long life
- Excellent performance ratio
- Low heat conductivity through 0.4mm Ni-leads
- UL recognized, file E148885
- Resistance value at 25°C ranges from 2Kohm to 470Kohm
- ±1%, ±2%, ±3% and ±5% resistance tolerance available
- Beta value (B25/85value) range from 3528K to 4570K
- Tolerance on B25/85-value ranges from ±0.5% to ±2%
- Operating temperature range from -40°C to 125°C
Applications
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices, Medical
Product details
| Zero Power Resistance at 25°C: 10kohm |
| Product Range: NTCLE |
| Thermistor Mounting: Through Hole |
| Beta Value (K): 3977K |
| Thermistor Case Style: - |
| Thermistor Terminals: Radial Leaded |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Automotive Qualification Standard: - |
Other details
| Brand | VISHAY |
| Part Number | NTCLE203E3103FB0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
