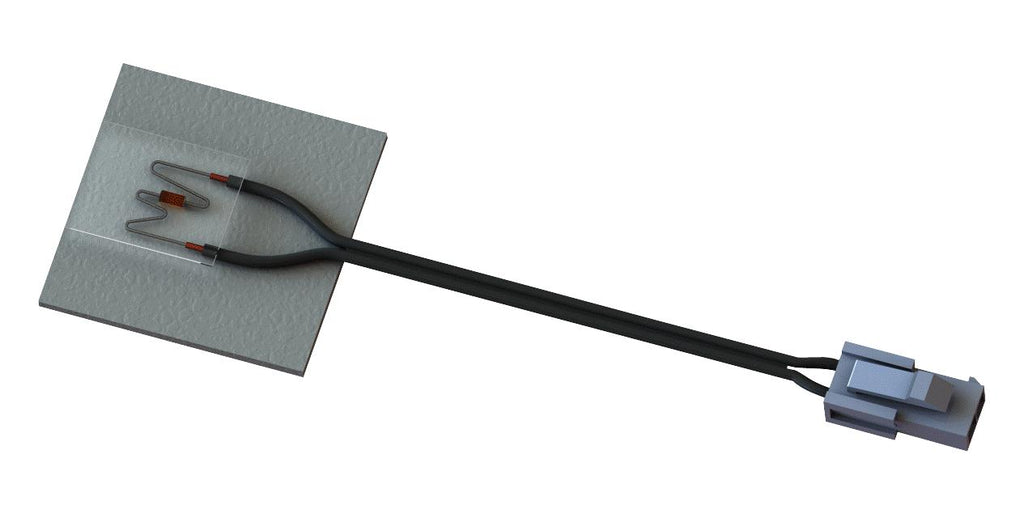

JS7352 is a self-adhering surface temperature sensor designed for industrial HVACR applications, typically for placement on the external wall of a water tank or boiler reservoirs. It is also suitable for reservoir tanks working in conjunction with solar panel water heating systems. This range of adhesive pad sensor detect over-temperature resulting from a malfunction or a dry-fire. An adhesive lined foam backing tape provides air and moisture resistance with optional WRC (5470) water safety and DIN 4102 part 1 (B3) fire safety approvals.
- 45 wide x15 long & 15 wide x 15 long, tapered
- Ceramic powder loaded contact tape
- Excellent heat transfer
- Long-term stability
- Temperature ranges from -30 to +70°C
- PVC single insulated lead wire, 3x1.5mm cross-sectional profile
- Voltage withstand 750VAC between the terminals of the connector and the contact tape
- Maximum permissible current is 1mA
- 160mm length
- Molex 5559 connector
Product details
| Zero Power Resistance at 25°C |
- |
| Product Range |
- |
| Thermistor Mounting |
- |
| Beta Value (K) |
- |
| Thermistor Case Style |
- |
| Thermistor Terminals |
Wire Leaded |
| Operating Temperature Min |
-30°C |
| Operating Temperature Max |
70°C |
| Automotive Qualification Standard |
- |
Other details
| Brand |
AMPHENOL ADVANCED SENSORS |
| Part Number |
JS7352 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Application Note EN |
|
